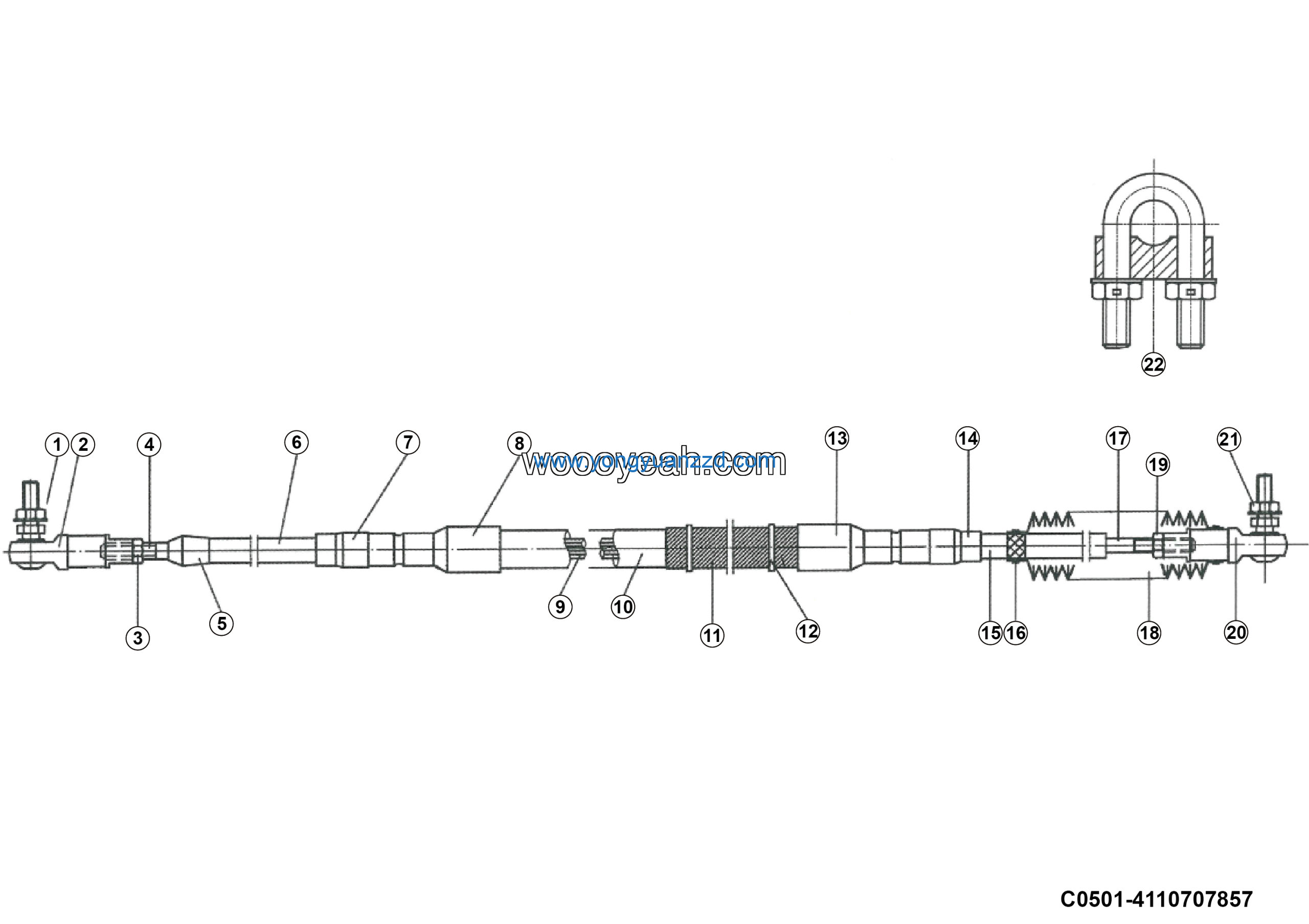

LGMG MT106H 2025 – Selector cable assy3700 (10426) – C0501-4110707857
Category: 2025 > MT106H > M106HW3A0M815
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hub | 4110707857009 | 1 |
| 2 | Heat insulation tube | 4110707857010 | 1 |
| 3 | Clamp | 4110707857011 | 1 |
| 4 | Hub | 4110707857012 | 1 |
| 5 | Connecting sleeve | 4110707857013 | 1 |
| 6 | Guide tube | 4110707857014 | 1 |
| 7 | Tie | 4110707857015 | 1 |
| 8 | Push-pull rod | 4110707857016 | 1 |
| 9 | Dust cover | 4110707857017 | 1 |
| 10 | Adjusting nut | 4110707857018 | 1 |
| 11 | Nut GB6173-M10*1EpZn-05 | 4013000078 | 1 |
| 12 | Ball joint | 4110707857019 | 1 |
| 13 | Nut | 4110707857020 | 1 |
| 14 | U-clamp assy | 4110707857021 | 1 |
| 15 | Ball joint | 4110707857001 | 1 |
| 16 | Adjusting nut | 4110707857002 | 1 |
| 17 | Push-pull rod | 4110707857003 | 1 |
| 18 | Dust cover | 4110707857004 | 1 |
| 19 | Guide tube | 4110707857005 | 1 |
| 20 | Connecting sleeve | 4110707857006 | 1 |
| 21 | Hub | 4110707857007 | 1 |
| 22 | Cable core | 4110707857008 | 1 |
