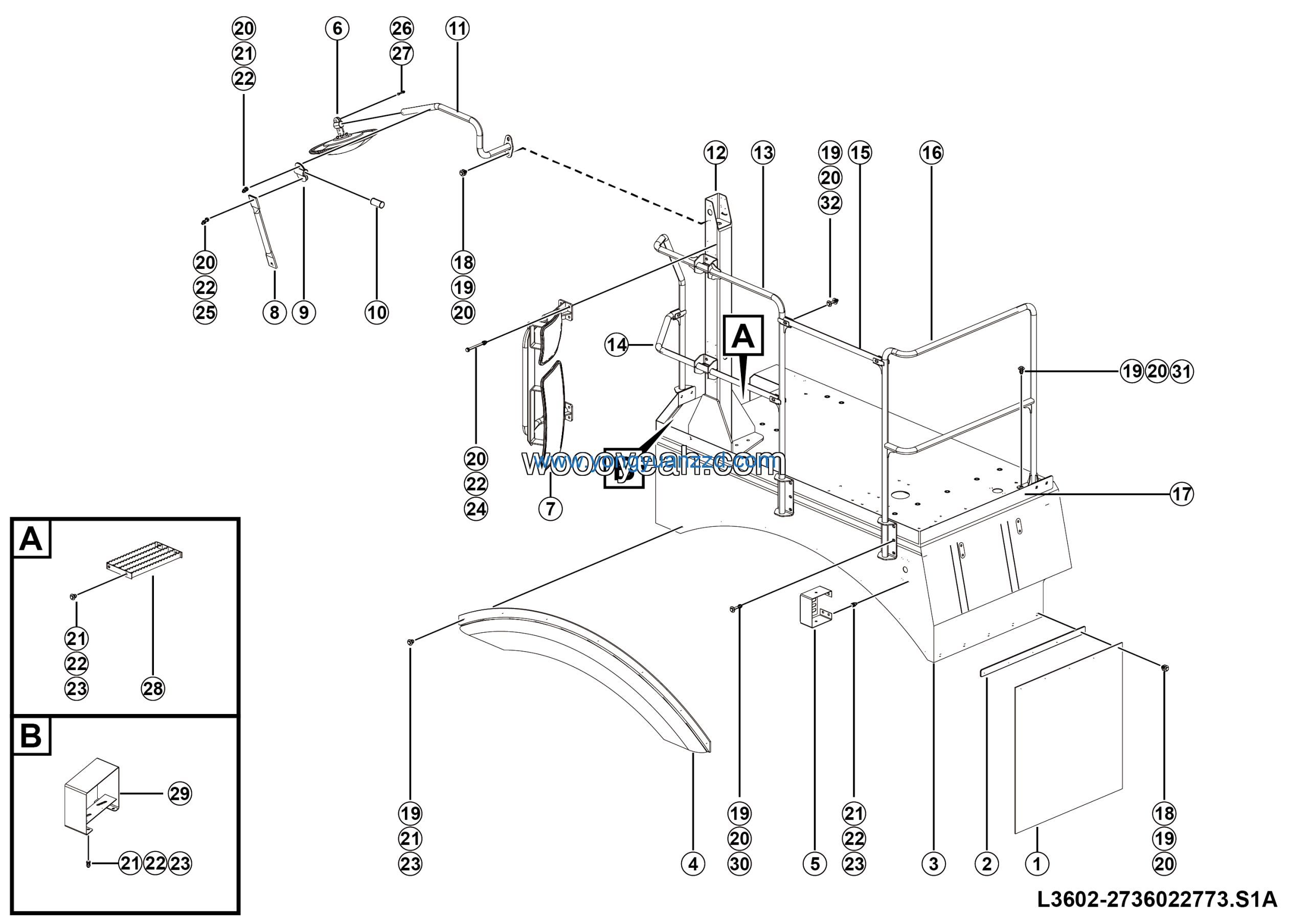

LGMG CMT106 2025 – Lh walkway assy – L3602-2736022773.S1A
Category: 2025 > CMT106 > C1060W3E0A034
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rubber strip | 27360197631 | 2 |
| 2 | Bracket wldmt | 27360233621 | 1 |
| 3 | Lh rearview mirror beam wldmt | 27360227751 | 1 |
| 4 | Lh guardrail wldmt | 27360233611 | 1 |
| 5 | Crossbeam wldmt | 27360197381 | 1 |
| 6 | Tube 30*3*685 | 27360233671 | 1 |
| 7 | Rear guardrail wldmt | 27360233641 | 1 |
| 8 | Lh guard | 27360233701 | 1 |
| 9 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 17 |
| 10 | Washer GB96.1-10EpZn-300HV | 4015000197 | 55 |
| 11 | Plate | 27360137091 | 1 |
| 12 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 57 |
| 13 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 27 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 48 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 19 |
| 16 | Bolt GB5782-M10*130EpZn-8.8 | 4011000535 | 16 |
| 17 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 18 | Bolt GB5783-M6*40EpZn-8.8 | 4011000440 | 1 |
| 19 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
| 20 | Platform plate | 27360150821 | 1 |
| 21 | L light support | 27360157311 | 1 |
| 22 | Plate | 27360137101 | 1 |
| 23 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 6 |
| 24 | Bolt GB5782-M10*30EpZn-8.8 | 4011010174 | 4 |
| 25 | Bolt GB5782-M10*60EpZn-8.8 | 4011000050 | 4 |
| 26 | Lh walkway wldmt | 27360233571 | 1 |
| 27 | Left wheel cover | 27360108021 | 1 |
| 28 | Support | 27360121251 | 1 |
| 29 | RH FR under view mirror | 4190001367 | 1 |
| 30 | Left mirror assembly | 27360122041 | 1 |
| 31 | Connection tube 30*3 | 27360233721 | 1 |
| 32 | Pipe clamp | 27360198831 | 4 |
