LGMG Off-Highway Dump Truck 2023 – Plate – J1001-2710012266.S1A
Category: 2023 > Off-Highway Dump Truck > MT126H > C126HW3A0M003

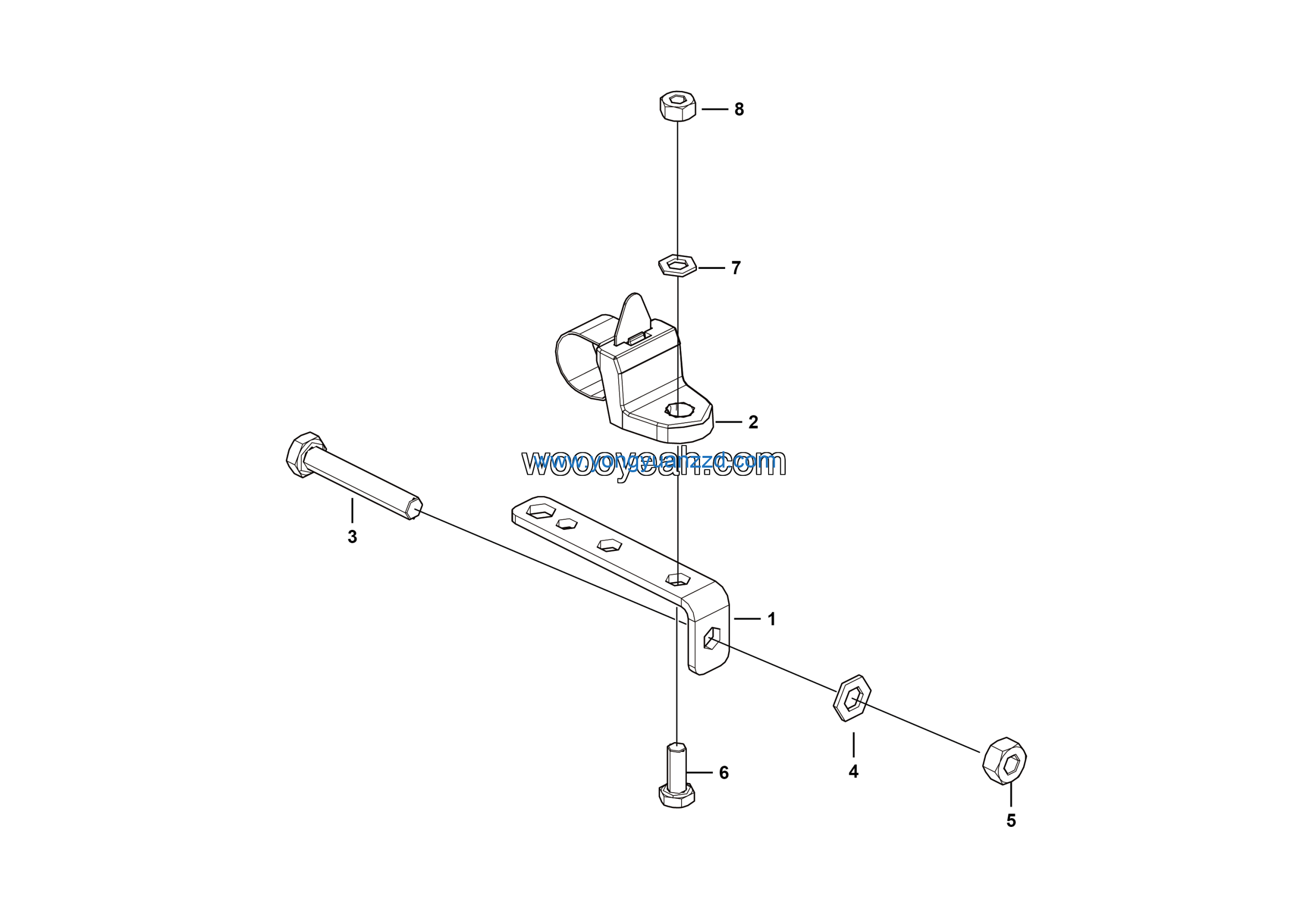

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27010113352 | 1 |
| 2 | Cable tie HS-J117 | 4130704969 | 1 |
| 3 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 1 |
| 4 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 6 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 7 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
