LGMG Mine Truck Mine Truck – Brake service assembly – J1000-2710010714002

Category: Mine Truck > Mine Truck > M0860WAK0

No.	Part Name	Part Number	Qty
1	Nut seat NG12	4120000190	10
2	Bolt GB5782-M10*55EpZn-8.8	4011000049	2
3	Washer GB97.1-10EpZn-300HV	4015000162	17
4	Nut GB6185.1-M10EpZn-8	4013010119	8
5	Hose clamp φ280-φ295	4120000113	4
6	Air reservoir bracket	27100103652	2
7	Air reservoir 50L	4120000141	2
8	Drain valve	4120000200	3
9	Plug NG12-M22*1.5	4120000201	2
10	Nut GB6170-M12EpZn-8	4013000011	7
11	Nut GB6170-M8EpZn-8	4013000033	3
12	Washer GB97.1-12EpZn-300HV	4015000168	10
13	Bolt GB5783-M12*30EpZn-8.8	4011000089	7
14	Hose clamp φ246-φ250	4120000177	2
15	Air reservoir 30L（246）	4120000143	1
16	30l reservoir bracket	27100106861	1
17	Bolt GB5783-M10*35EpZn-8.8	4011000085	4
18	Straight bulkhead joint NG6/2-M16*1.5	4120000233	2
19	Thin nut M16*1.5	4120000234	2
20	M14-NPT1/8 bulkhead union	27100106211	1
21	Foot brake valve	4120000133	1
22	Washer GB97.1-8EpZn-300HV	4015000072	2
23	T-connector m14-npt1/8-m14	27100106991	1
24	CLAMP	27110102381	4
25	Plate 2	27110102321	4
26	Plate1	27110102311	4
27	Bolt GB5783-M10*45EpZn-8.8	4011000514	6
28	Bracket 1	27100103561	2
29	Bolt GB5783-M10*40EpZn-8.8	4011000184	4
30	Bolt GB5783-M8*20EpZn-8.8	4011000105	1
31	Wired hose	27100107621	1
32	CONNECTOR	27100100661	4
33	Plate	27100106811	1
34	Washer JB982-16	4015000141	6
35	Clamp	27100107611	1
36	Steel tube support	27100105871	1
37	Nut seat NG8	4120000194	1
38	Clip spring NG8	4120000196	1
39	Elastic element NG8	4120000197	1
40	Relay valve	4120001087	1
41	Elastic element NG12	4120000193	10
42	Clip spring NG12	4120000192	10

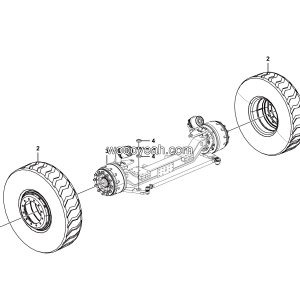

LGMG Mine Truck Mine Truck – Front axle – D0601-2706010258
