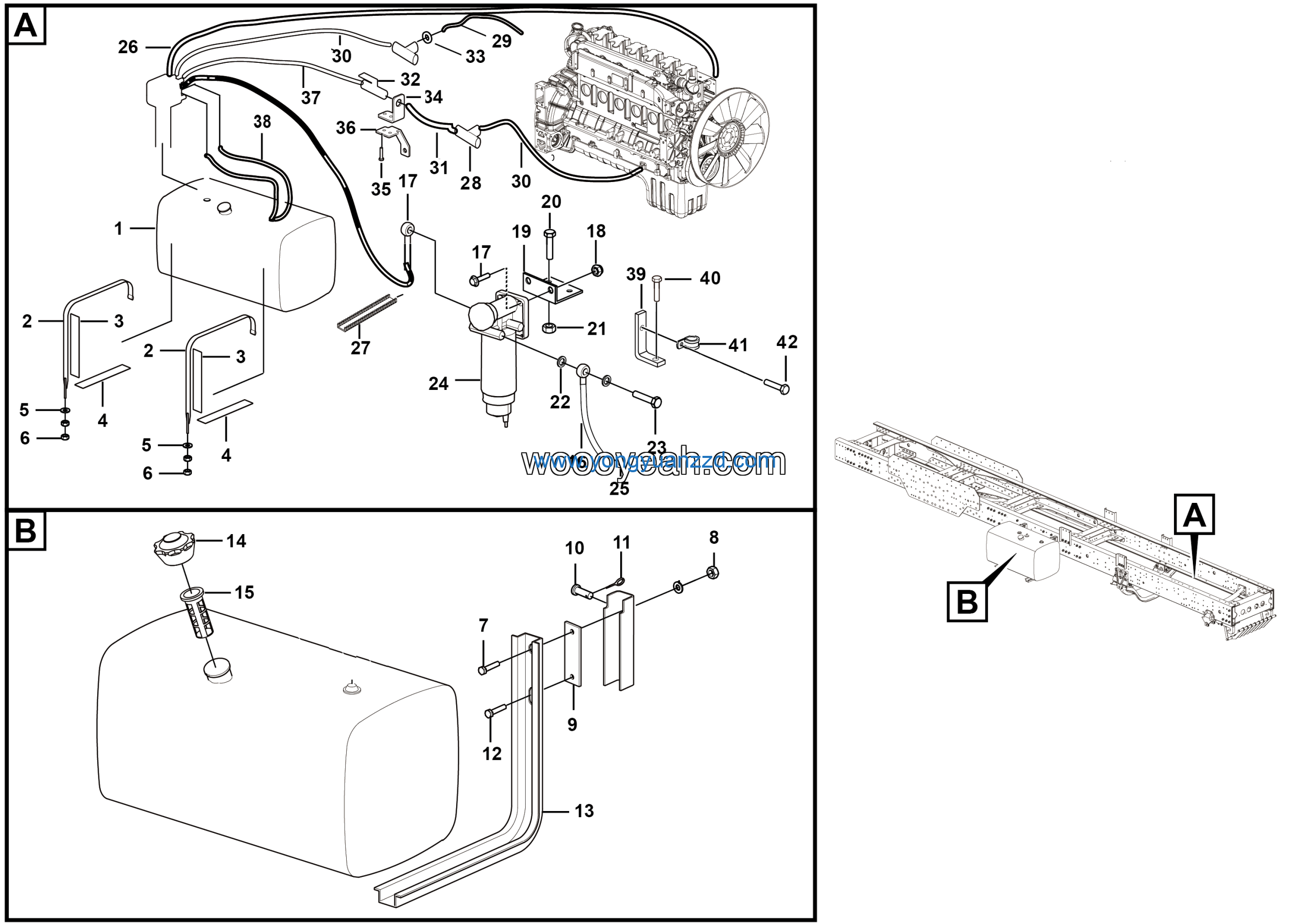

LGMG Off-Highway Dump Truck 2020 – Fuel tank – A0700-2702010486
Category: 2020 > Off-Highway Dump Truck > MT95H > M095HWD12
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pin | 4110000120 | 3 |
| 2 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
| 3 | Bolt GB5783-M16*70EpZn-10.9 | 4011010204 | 3 |
| 4 | Fuel tank bracket assy | 4110000118 | 3 |
| 5 | Aluminium oil box cover | 4049010004 | 1 |
| 6 | Fuel sieve | 4110000046 | 1 |
| 7 | Fuel pipe | 27020104321 | 2 |
| 8 | Bolt GB16674.1-M12*45EpZn-8.8 | 4011000467 | 2 |
| 9 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 10 | Support | 27020104141 | 1 |
| 11 | Dual chamber fuel tank assy 530L | 4110702986 | 1 |
| 12 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 4 |
| 13 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 10 |
| 14 | Combined sealing washer 13023362 | 4110702789 | 4 |
| 15 | Hollow bolt 1119250 | 4110702788 | 2 |
| 16 | Engine fuel filter | 4110702781 | 1 |
| 17 | Hose clamp JB8870-D20 | 4017000010 | 10 |
| 18 | Pipe ⅱ | 27020104841 | 1 |
| 19 | String casing | 27140105021 | 4 |
| 20 | Three direction pipe | 27020104481 | 2 |
| 21 | Pipe | 27020104701 | 2 |
| 22 | Cable tie assy | 4110000119 | 3 |
| 23 | Pipe | 27020104691 | 1 |
| 24 | Pipeⅱ | 27020104681 | 1 |
| 25 | Valve assembly | 27210103841 | 1 |
| 26 | Hose clamp JB8870-D32 | 4017000011 | 8 |
| 27 | Ball support | 27210104091 | 1 |
| 28 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 2 |
| 29 | Support ⅱ | 27020104571 | 1 |
| 30 | Pipe ⅰ | 27020104671 | 1 |
| 31 | Pipe | 27020104851 | 2 |
| 32 | Plate | 27160104461 | 3 |
| 33 | Flap | 4110000121 | 3 |
| 34 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 3 |
| 35 | Pipe clamp | 26370001951 | 4 |
| 36 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 37 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 38 | Flap | 4110000122 | 6 |
| 39 | Washer GB97.1-16EpZn-300HV | 4015000181 | 3 |
| 40 | Nut GB6170-M16EpZn-8 | 4013000016 | 6 |
| 41 | Bolt GB5783-M16*60EpZn-10.9 | 4011010205 | 3 |
| 42 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 43 | Fixed plate | 27020101021 | 3 |
