LGMG Off-Highway Dump Truck 2020 – Chassis electric system – K2000-2720011055
Category: 2020 > Off-Highway Dump Truck > MT95H > M095HHAE8

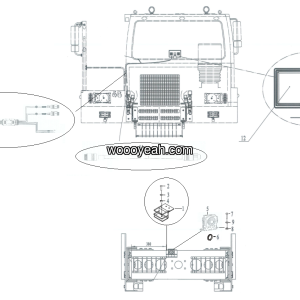

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Power line p70*3700 | 27200106131 | 1 |
| 2 | Frame | 27200110001 | 1 |
| 3 | Wire | 27200107611 | 1 |
| 4 | Signal module | 27200107971 | 1 |
| 5 | The frame wire-man ⅳ | 27200110211 | 1 |
| 6 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 8 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 9 | Black battery cable sheath | 26370002441 | 2 |
| 10 | Battery wire p70*800 | 27200105491 | 1 |
| 11 | Frame central electrical module | 27200107961 | 1 |
| 12 | Stop lamp switch YK209KLA | 4130000492 | 1 |
| 13 | Electrical module | 27200107641 | 1 |
