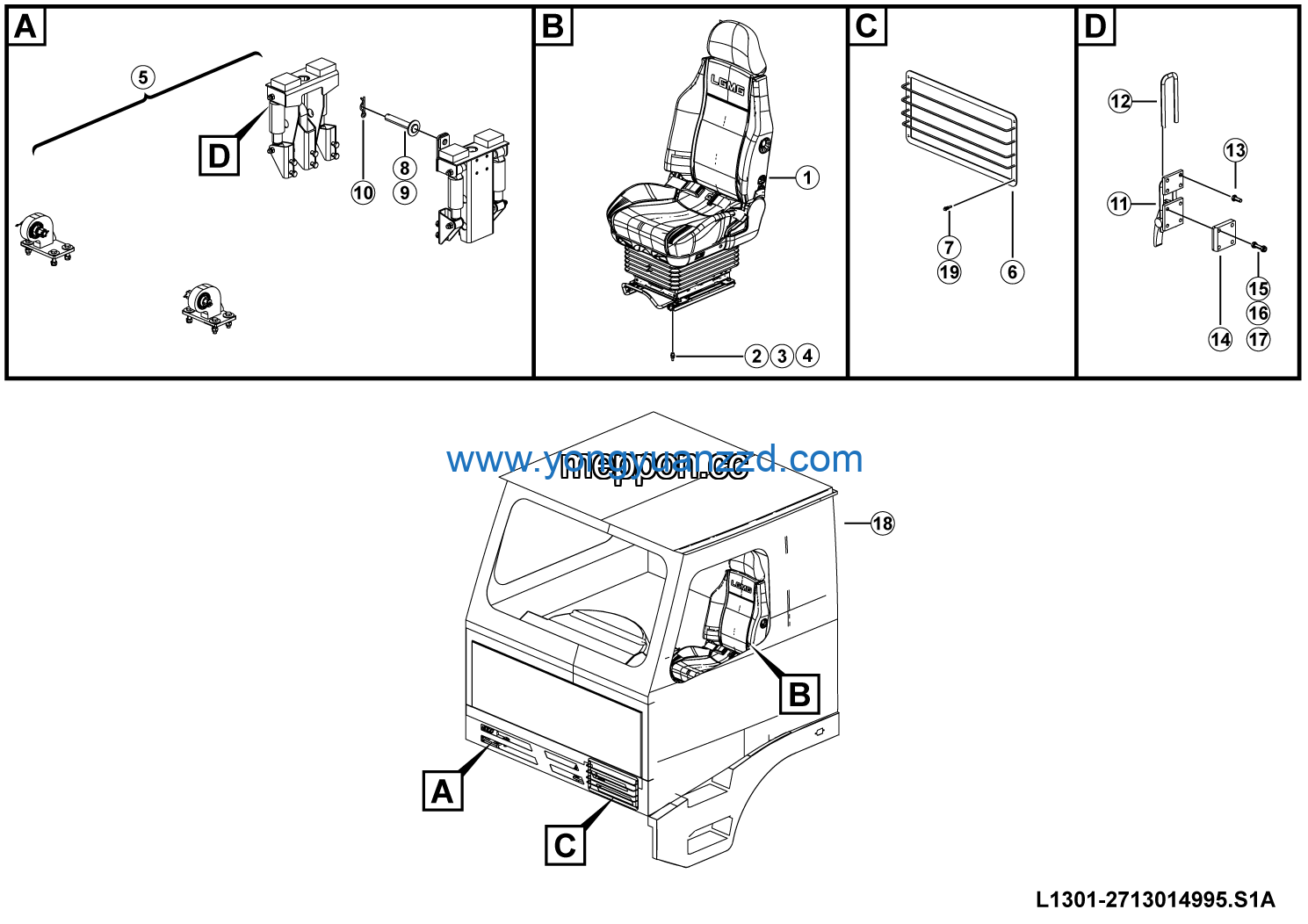

LGMG Off-Highway Dump Truck 2024 – Cab subassy – L1301-2713014995.S1A
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500WA06
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Sping | 27130117641 | 1 |
| 2 | Mechanical lock assy | 4190002377 | 2 |
| 3 | U-polit | 27130117912 | 2 |
| 4 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 8 |
| 5 | Plate | 27130117291 | 2 |
| 6 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 8 |
| 7 | Washer GB93-10-65Mn | 4015000025 | 8 |
| 8 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 9 | Tiltable LH cab LG13-JSS-0813 | 4190710813 | 1 |
| 10 | Nut GB6170-M5EpZn-8 | 4013010029 | 8 |
| 11 | Seat assy | 4190003462 | 1 |
| 12 | Screw GB70.1-M8*25-8.8 | 4014000171 | 4 |
| 13 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 14 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 15 | Cab suspensions assy | 27130149941 | 1 |
| 16 | Headlight protecting cap | 27130124732 | 2 |
| 17 | Bolt GB16674.1-M5*25EpZn-8.8 | 4011000586 | 8 |
| 18 | Pipe | 27130117631 | 1 |
| 19 | Retaining ring | 27130117601 | 1 |
