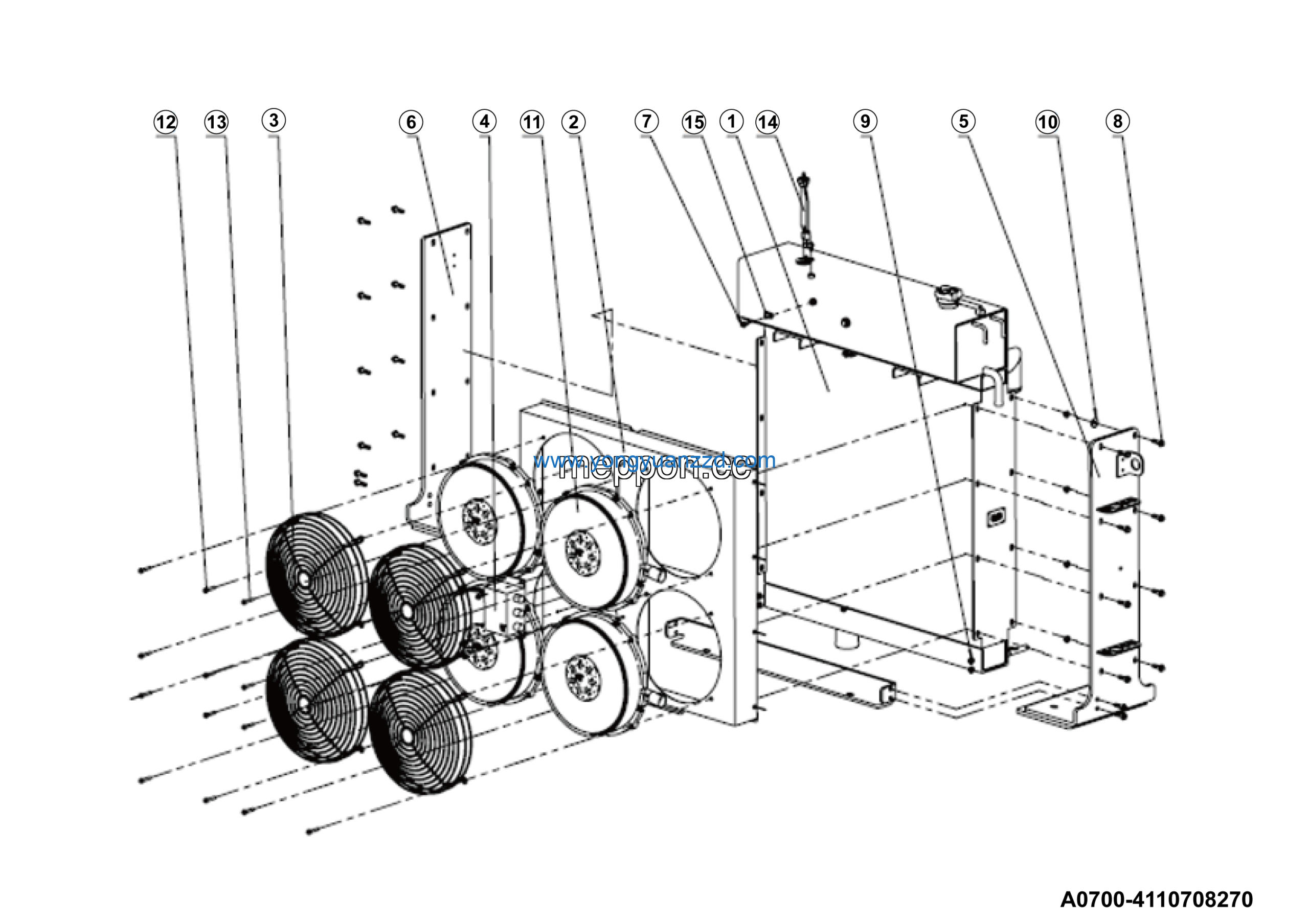

LGMG CMT106 2025 – Radiator lg03-srq-011 – A0700-4110708270
Category: 2025 > CMT106 > C1060W3E0A033
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer (8*24) 4110706729010 | 4110706729010 | 8 |
| 2 | Brushless fan LG03-FJ-001 | 4110705789 | 4 |
| 3 | Washer 6*16 | 4110708270004 | 16 |
| 4 | Bolt m6x35 | 4190710380024 | 16 |
| 5 | Liquid level sensor | 4110708270002 | 1 |
| 6 | Pipe clamp | 4110708270003 | 2 |
| 7 | Water radiator | 4110708270001 | 1 |
| 8 | Fan shroud 4110706729003 | 4110706729003 | 1 |
| 9 | Mesh guard 4110706729004 | 4110706729004 | 4 |
| 10 | Relay assy 4110707911001 | 4110707911001 | 1 |
| 11 | Lh bracket assy 4110706729005 | 4110706729005 | 1 |
| 12 | Rh bracket assy 4110706729006 | 4110706729006 | 1 |
| 13 | Bolt (m6*16) 4110706729007 | 4110706729007 | 7 |
| 14 | Bolt (m8*30-10.9) 4110706729008 | 4110706729008 | 20 |
| 15 | Nut 4110706729009 | 4110706729009 | 12 |
