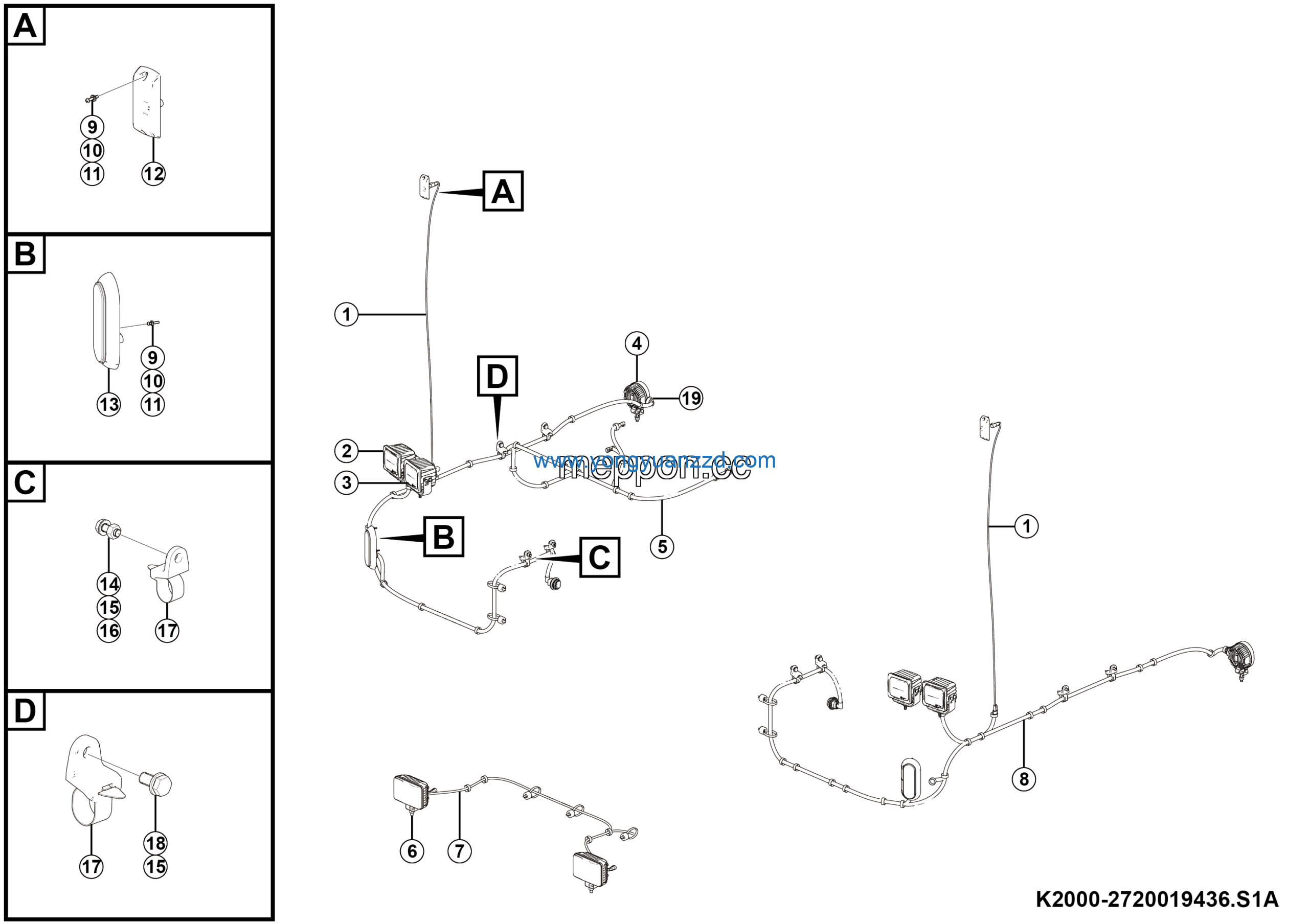

LGMG CMT66 2025 – Covering elec module – K2000-2720019436.S1A
Category: 2025 > CMT66 > C0660W3E0A025
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-4EpZn-300HV | 4015000135 | 12 |
| 2 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 12 |
| 3 | SMG-011 Side marker lamp 3112040324 | 4130001148 | 2 |
| 4 | Third generation turn signal DI-621 | 4130705210 | 2 |
| 5 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 8 | Cable tie 14400342 | 4130703098 | 8 |
| 9 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 4 |
| 10 | Jacket | 27200154101 | 2 |
| 11 | WIRE | 2720010786-006 | 2 |
| 12 | Floodlamp work lamp WK-55HL（3312040210） | 4130001152 | 2 |
| 13 | Spotlamp work lamp WK-55HL（3312040131） | 4130001153 | 2 |
| 14 | LED Floodlamp SM6272 | 4130000610 | 2 |
| 15 | Rh walkway harness | 27200194382 | 1 |
| 16 | LED front fog light SM6053 (ordinary two-pin plug) | 4130712650 | 2 |
| 17 | Cmt fog lamp harness | 27200175261 | 1 |
| 18 | Lh walkway harness | 27200194372 | 1 |
| 19 | Screw GB818-M4*20flZnyc-4.8-480 | 4014010121 | 12 |
