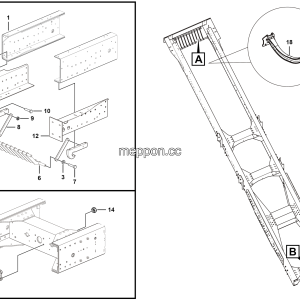

LGMG MTE106H 2025 – 50L air reservoir installation – J1000-2710013195.S1A
Category: 2025 > MTE106H > C106HE0A0A501
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Air reservoir 50l component | 27100115761 | 1 |
| 2 | Hose clamp φ315-φ320 | 4120001542 | 2 |
| 3 | 50l air reservoir bracket wldmt | 27100131961 | 1 |
| 4 | Bolt GB5782-M12*45EpZn-8.8 | 4011000498 | 4 |
| 5 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 6 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
