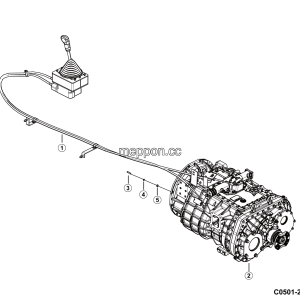

LGMG Off-Highway Dump Truck 2020 – Variable speed control assy – C0500-2705010799
Category: 2020 > Off-Highway Dump Truck > The wide-body dump truck parts atlas of UT350 > M0500WA00QC1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flexshaft clamp | 27050101691 | 1 |
| 2 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
| 3 | Washer GB848-8EpZn-300HV | 4015010215 | 8 |
| 4 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 5 | GEARBOX SUPPORT STAND PLATE | 27050107211 | 1 |
| 6 | Screw GB70.1-M8*25-8.8 | 4014000171 | 6 |
| 7 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 8 | Shifting flexible shaft bracket | 4110000546 | 1 |
| 9 | U-Clamp assy | 4190000302 | 2 |
| 10 | Selecting flexible shaft bracket | 4110000515 | 1 |
| 11 | Shift handle crank assembly | 27050105311 | 1 |
| 12 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 1 |
| 13 | Nut GB889.1-M8EpZn-8 | 4013000210 | 1 |
| 14 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 3 |
| 15 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 16 | Selecting rocker arm | 4110000545 | 1 |
| 17 | Bolt GB5782-M10*30EpZn-8.8 | 4011010174 | 2 |
| 18 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 19 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 20 | Dust cover | 4110000209 | 1 |
| 21 | Manipulator connecting block | 27050101511 | 1 |
| 22 | Pad of paper | 27050101521 | 1 |
| 23 | Controller | 27050101531 | 1 |
| 24 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 2 |
| 25 | Washer GB97.1-8EpZn-300HV | 4015000072 | 5 |
| 26 | The selector flexible shaft assembly | 27050101551 | 1 |
| 27 | Shifting flexible shaft assy | 4110001724 | 1 |
