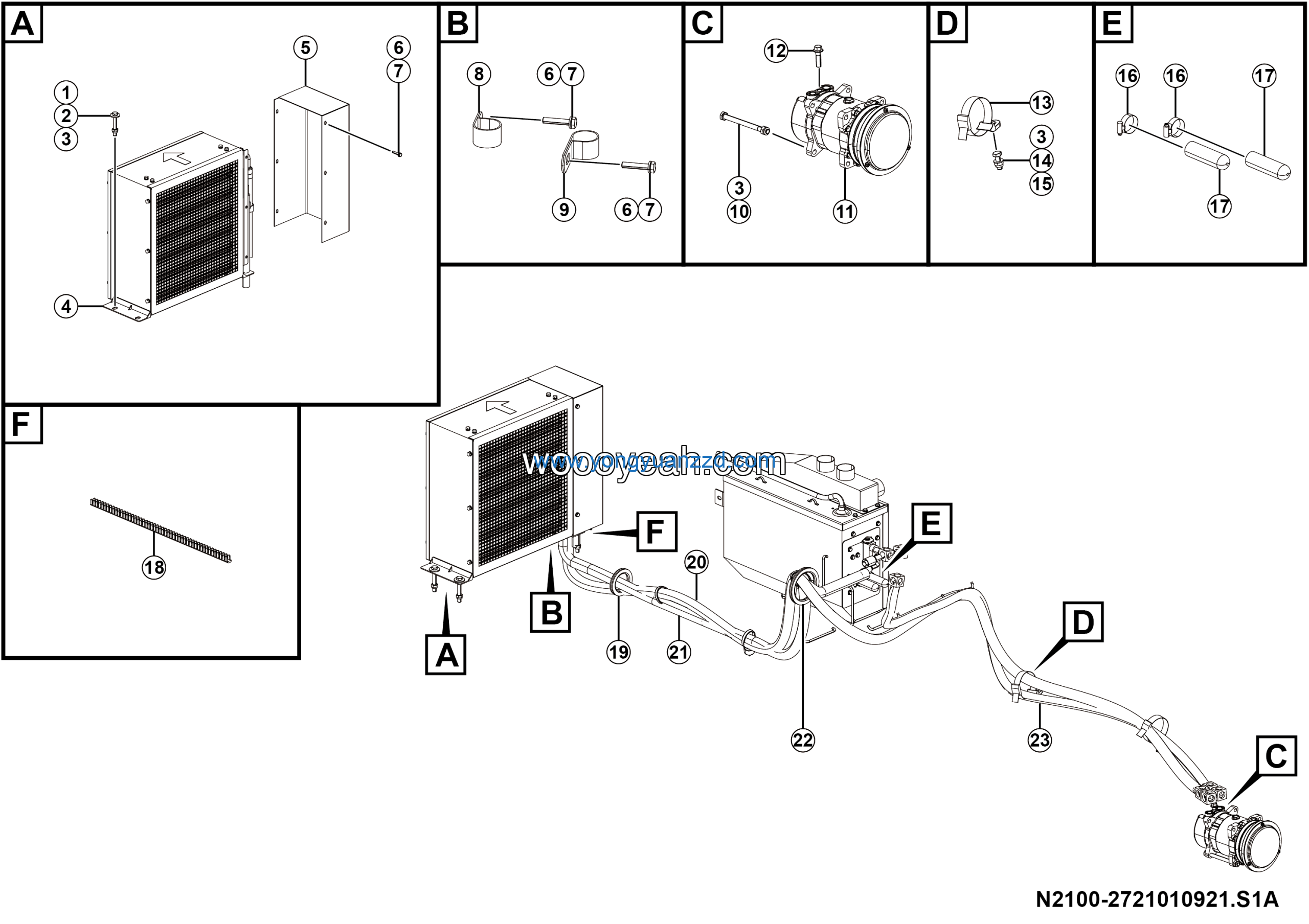

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Air conditioner installation – N2100-2721010921.S1A
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS25 > M0250Y3E0M201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M10*125flZnyc-8.8-480 | 4011011182 | 2 |
| 2 | Compressor | 4190001088 | 1 |
| 3 | Bolt gb16674.2-m10*1.25*35flznyc-8.8-480 | 4011012000 | 1 |
| 4 | Nylon large tie strap HS-J118 | 4130705870 | 2 |
| 5 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 2 |
| 6 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 7 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 8 | Plug 24*4*80 | 27210108901 | 2 |
| 9 | Wiring sheath 200-5 | 27210108201 | 1 |
| 10 | Grommet 60*3 | 27030161451 | 2 |
| 11 | Bolt GB5783-M10*70flZnyc-8.8-480 | 4011011342 | 4 |
| 12 | Hose (compressor-condenser) gk33-4.5k1-30 | 4190714892 | 1 |
| 13 | Hose (condenser-evap) gk33-4.5k1-20 | 4190714891 | 1 |
| 14 | Rubber sleeve 90 * 3 | 27360177111 | 1 |
| 15 | Hose (evap-compressor) gk33-4.5k1-10 | 4190714895 | 1 |
| 16 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 4 |
| 17 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 8 |
| 18 | Condenser assy | 4190708206 | 1 |
| 19 | Shield | 4190002561 | 1 |
| 20 | Bolt GB5783-M6*30flznyc-8.8-480 | 4011010717 | 8 |
| 21 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 8 |
| 22 | Clamp | 4190002391 | 1 |
| 23 | Clamp | 4190002390 | 1 |
