LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Chassis electric system – K2001-2720010866
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS25 > MS250WA34

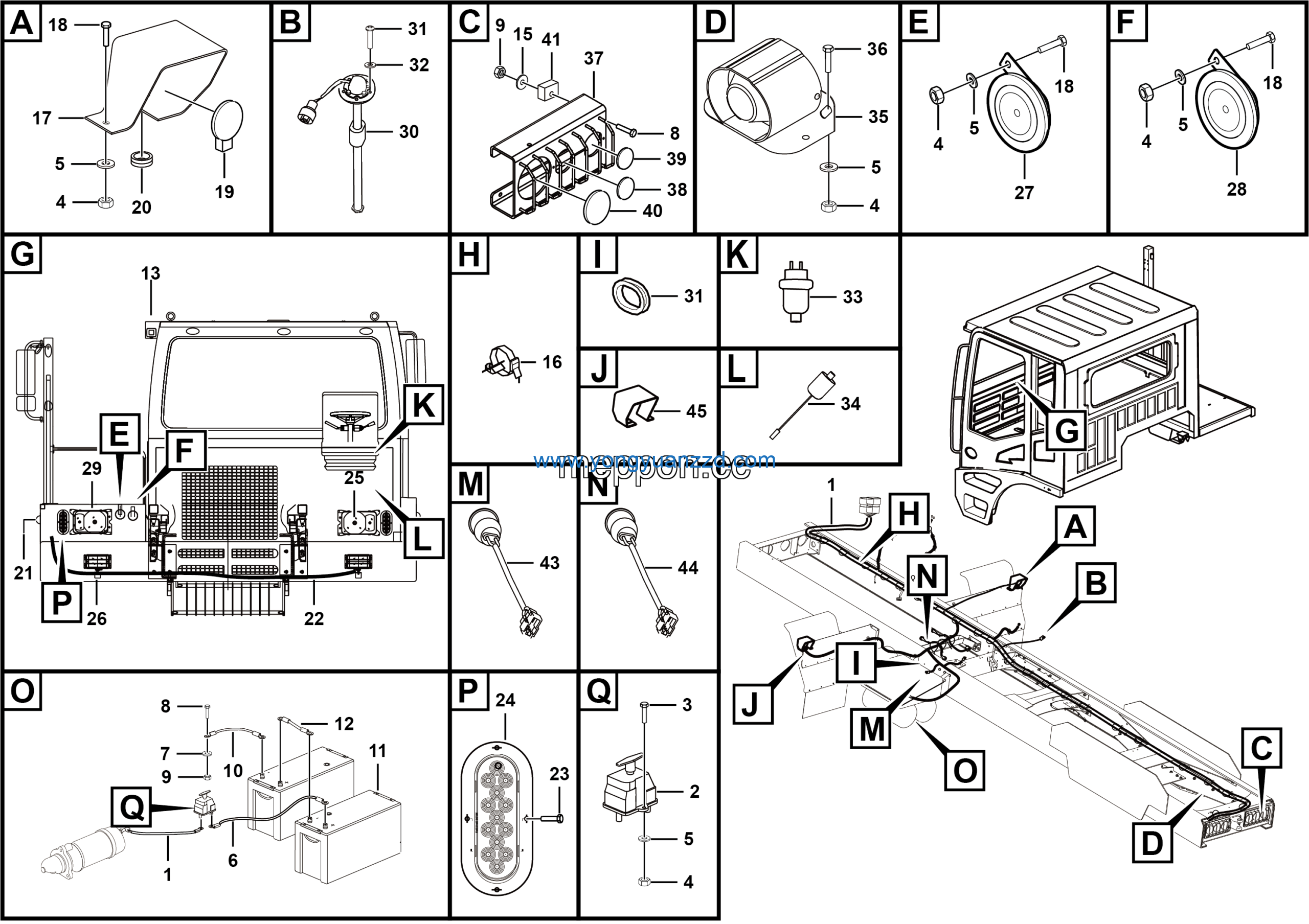

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Wire | 27200105181 | 1 |
| 2 | Battery 6-QW-120T | 4130000060 | 2 |
| 3 | Wire | 27200105191 | 1 |
| 4 | RR working lamp 1GA 996.506-52 | 4130000576 | 1 |
| 5 | The frame wire harness | 27200108672 | 1 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 9 |
| 7 | Nylon large tie strap HS-J118 | 4130705870 | 1 |
| 8 | Right lamp guard | 27200102321 | 1 |
| 9 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 10 | LEDWork lamp SM6502 | 4130000659 | 2 |
| 11 | Power line p70*3700 | 27200106131 | 1 |
| 12 | Guard | 27140105031 | 3 |
| 13 | Side steering lamp 43-3001A | 4130000343 | 2 |
| 14 | Front fog lamp wire | 27200105381 | 1 |
| 15 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 16 | LED FR steering lamp SG-XH021C | 4130705902 | 2 |
| 17 | FR headlamp（RH） | 4130000250 | 1 |
| 18 | FR fog lamp（PHILIPS） | 4130705600 | 2 |
| 19 | Monophonic disc woofer | 4130000906 | 1 |
| 20 | Monophonic disc wooFer（treble） | 4130000907 | 1 |
| 21 | FR headlamp（LH） | 4130000249 | 1 |
| 22 | Power switch 37030020010 | 4130000307 | 1 |
| 23 | Fuel level sensor 104760001 | 4130000644 | 1 |
| 24 | Screw GB818-M5*10EpZn-4.8 | 4014000023 | 5 |
| 25 | Washer GB97.1-5EpZn-300HV | 4015000110 | 5 |
| 26 | Air pressure sensor YG2221S（M16*1.5） | 4130000012 | 2 |
| 27 | Stop lamp switch YK209KLA | 4130000492 | 1 |
| 28 | Reverse buzzer DDB101-LG | 4130000294 | 1 |
| 29 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 30 | Bracket of tail combination lamp | 27200107171 | 2 |
| 31 | Direction-indicator lamp HY-088Y-5LED | 4130000908 | 2 |
| 32 | Brake & position light HY-088Y-5-1LED | 4130000909 | 2 |
| 33 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 2 |
| 34 | LED Floodlamp SM6272 | 4130000610 | 2 |
| 35 | Heel | 27200103872 | 2 |
| 36 | Fagging | 27140108681 | 2 |
| 37 | Parking pressure switch 0.55MPa | 4130000006 | 1 |
| 38 | Electromagnetic valve air pressure switch 0.3MPa | 4130000007 | 1 |
| 39 | Left lamp guard | 27200102311 | 1 |
| 40 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 41 | Washer GB97.1-8EpZn-300HV | 4015000072 | 10 |
| 42 | Wire | 27200105171 | 1 |
| 43 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 44 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 10 |
| 45 | Nut GB6170-M10EpZn-8 | 4013000007 | 10 |
