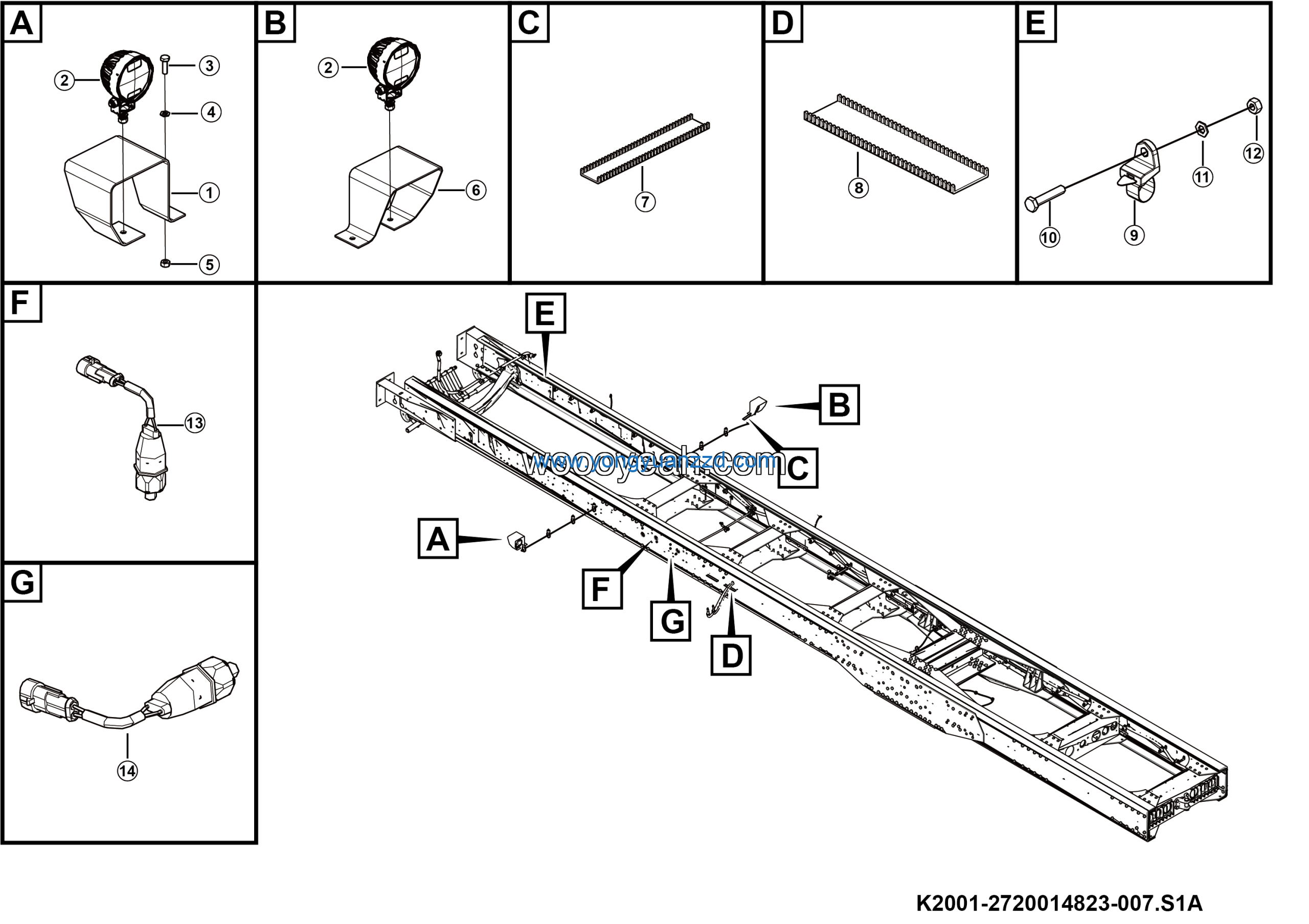

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Chassis mid elec module – K2001-2720014823-007.S1A
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS50 > MS500W3E0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 3 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 4 | Parking pressure switch 0.55MPa | 4130000006 | 1 |
| 5 | Electromagnetic valve air pressure switch 0.3MPa | 4130000007 | 1 |
| 6 | Left lamp guard | 27200102311 | 1 |
| 7 | LEDWork lamp SM6502 | 4130000659 | 2 |
| 8 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 9 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 10 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 11 | Right lamp guard | 27200102321 | 1 |
| 12 | Guard | 27140105031 | 1 |
| 13 | String casing | 27140105021 | 2 |
| 14 | Cable tie 14400342 | 4130703098 | 1 |
