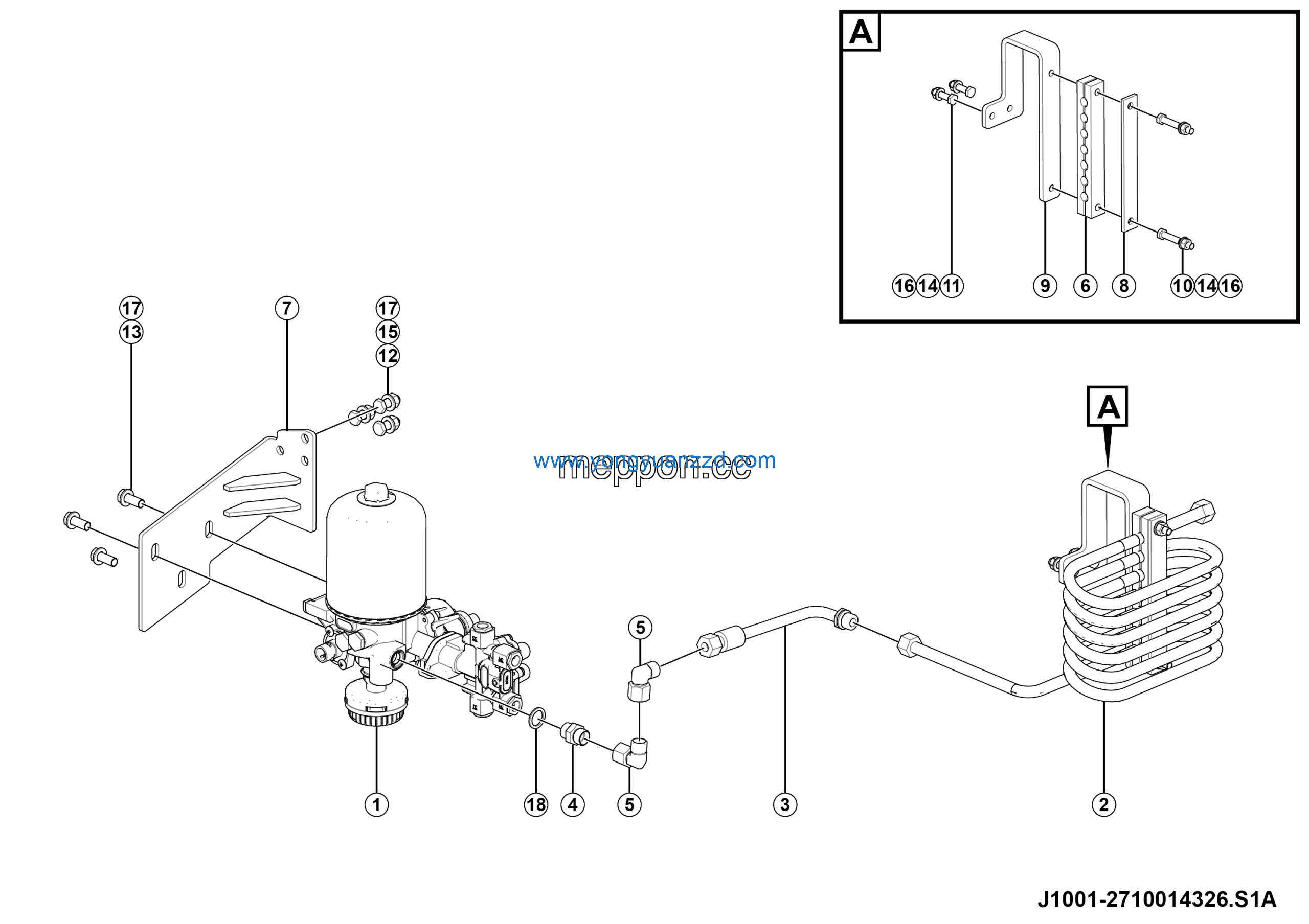

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Dryer & spiral pipe assy – J1001-2710014326.S1A
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS25 > MS250Y3E0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 2 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 3 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 3 |
| 4 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 3 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 6 | Nut GB6170-M12EpZn-8 | 4013000011 | 3 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 6 |
| 9 | Washer JB982-22 | 4015000092 | 1 |
| 10 | Air Handling unit | 4120001086 | 1 |
| 11 | Spiral steel pipe 16*1.5 | 27100140511 | 1 |
| 12 | Steel braided hose-220 (high resilience) | 27100131041 | 1 |
| 13 | M22-m22 rectangular connector | 27100100691 | 1 |
| 14 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 15 | Rubber clip | 27100108841 | 2 |
| 16 | The dryer bracket | 27100113461 | 1 |
| 17 | Plate | 27100108872 | 1 |
| 18 | Bracket 310*40*92.5 | 27100143271 | 1 |
