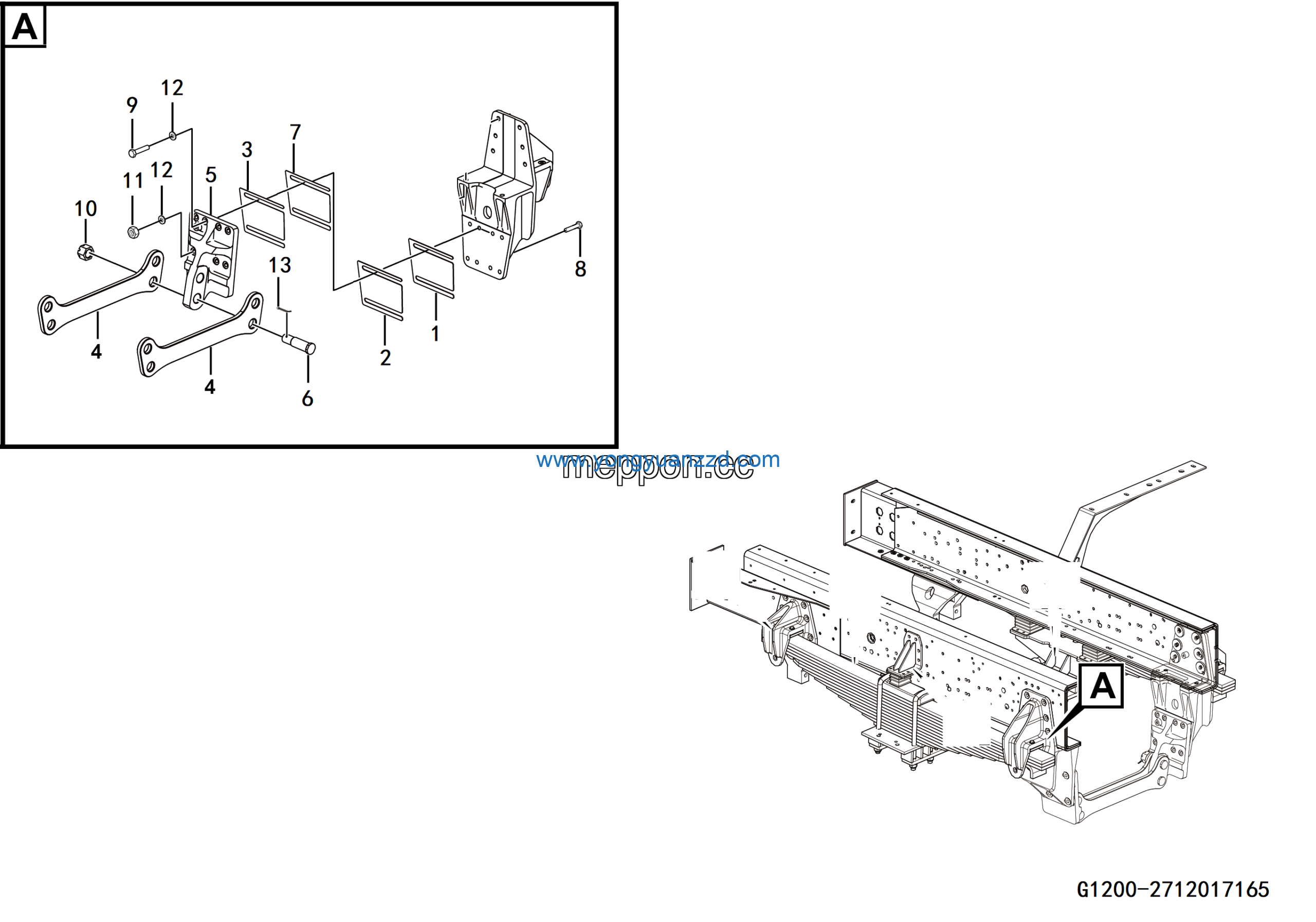

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Front suspension beam installation assy MT86H – G1200-2712017165
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS40 > MS400W3E0M113
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6178-M36EpZn-10 | 4013010114 | 4 |
| 2 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 3 | Washer GB1230-16-45 | 4015010101 | 28 |
| 4 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 5 | Adjusting shim | 27120114771 | 2 |
| 6 | Adjusting shim | 27120114781 | 2 |
| 7 | Adjustment gasket | 27120117822 | 2 |
| 8 | Second beam pole | 27120122481 | 2 |
| 9 | Second beam seat | 27120122491 | 2 |
| 10 | Pin40*80 | 27120123391 | 4 |
| 11 | Adjusting shim | 27120123461 | 2 |
| 12 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 13 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 12 |
