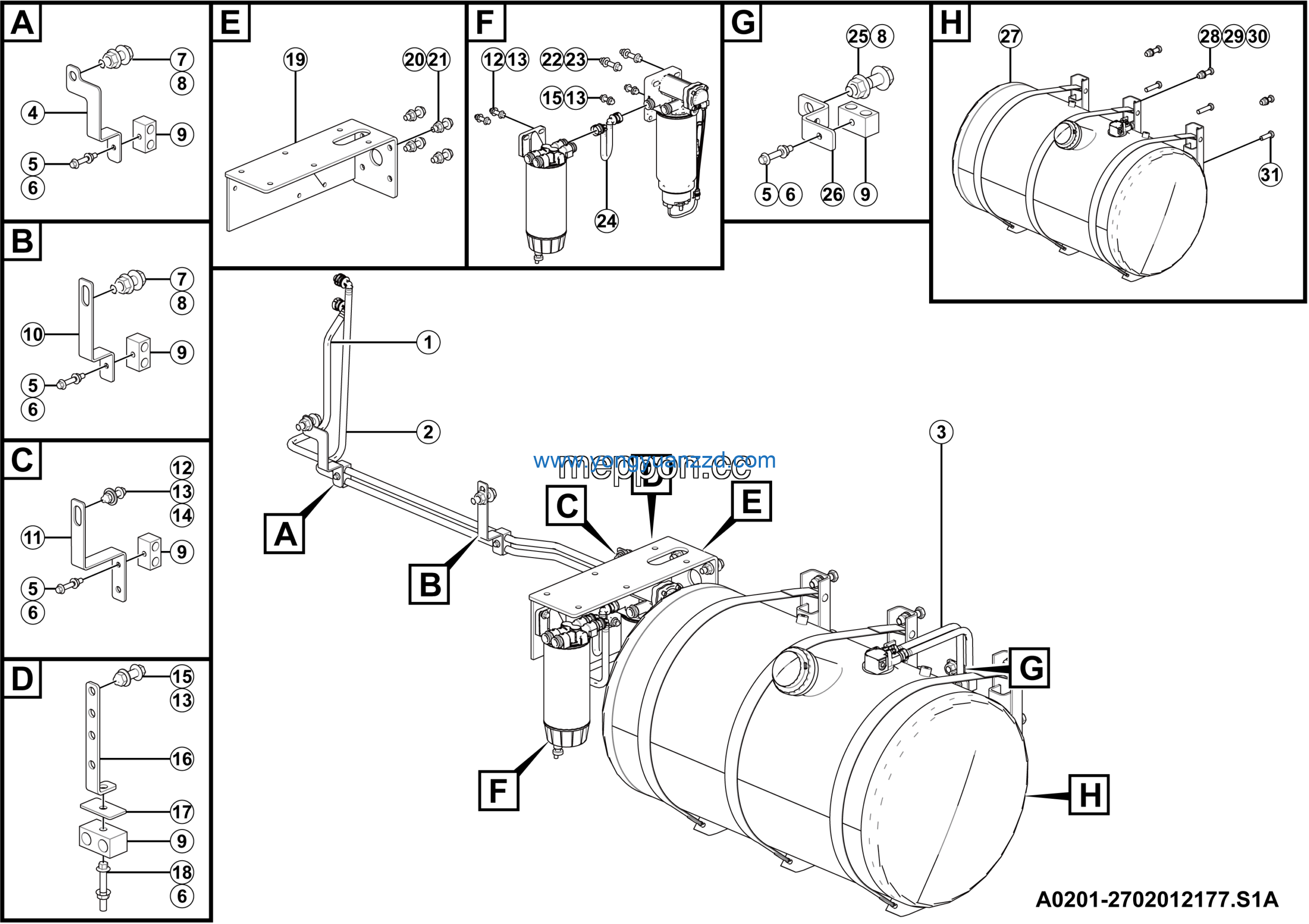

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Fuel tank assy – A0201-2702012177.S1A
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS25 > M0250Y3E0M201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket 201*54*30 | 27020121821 | 1 |
| 2 | Bracket 222*104*30 | 27020113331 | 3 |
| 3 | Bolt GB16674.1-M10*40flZnyc-8.8-480 | 4011011086 | 3 |
| 4 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 6 |
| 5 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 1 |
| 6 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 3 |
| 7 | Support | 27020110681 | 1 |
| 8 | Cover plate | 27410100861 | 1 |
| 9 | Bolt GB16674.1-M8*55flZnyc-8.8-480 | 4011011111 | 1 |
| 10 | Fuel filter bracket wldmt | 27020116701 | 1 |
| 11 | Quick-connect fuel pipe 16*2*3394 | 27020121811 | 1 |
| 12 | Bolt gb5789-m14*50flznyc-8.8-480 | 4011011924 | 4 |
| 13 | Nut gb6177.1-m14flznyc-8-480 | 4013010623 | 4 |
| 14 | Bolt gb16674.1-m12*60flznyc-8.8-480 | 4011011908 | 2 |
| 15 | Nut gb6177.1-m12flznyc-8-480 | 4013010621 | 2 |
| 16 | Quick-connect fuel hose 16*2*215 | 27020113181 | 1 |
| 17 | Bolt gb5789-m16*60flznyc-8.8-480 | 4011011937 | 3 |
| 18 | Bracket 121*60*30 | 27020113101 | 1 |
| 19 | 200l fuel tank assy lg02-ryx-045 | 4190714348 | 1 |
| 20 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 4 |
| 21 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 3 |
| 22 | Quick-connect fuel pipe 16*2*2108 | 27020121801 | 1 |
| 23 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 3 |
| 24 | Bolt GB5783-M16*50flZnyc-12.9-480 | 4011010616 | 2 |
| 25 | Quick-connect fuel pipe 16*2*2310 | 27020116101 | 1 |
| 26 | Bracket 181*80.6*54 | 27020121831 | 1 |
| 27 | Bolt gb16674.1-m8*50flznyc-8.8-480 | 4011011902 | 6 |
| 28 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 7 |
| 29 | Bolt gb5789-m16*50flznyc-8.8-480 | 4011011936 | 2 |
| 30 | Nut gb6177.1-m16flznyc-8-480 | 4013010625 | 5 |
| 31 | Double-pipe clamp TTPG16-216 | 4120712564 | 7 |
