LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Palte – G1201-2712017159.S1B
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS50 > MS500W3E0M101

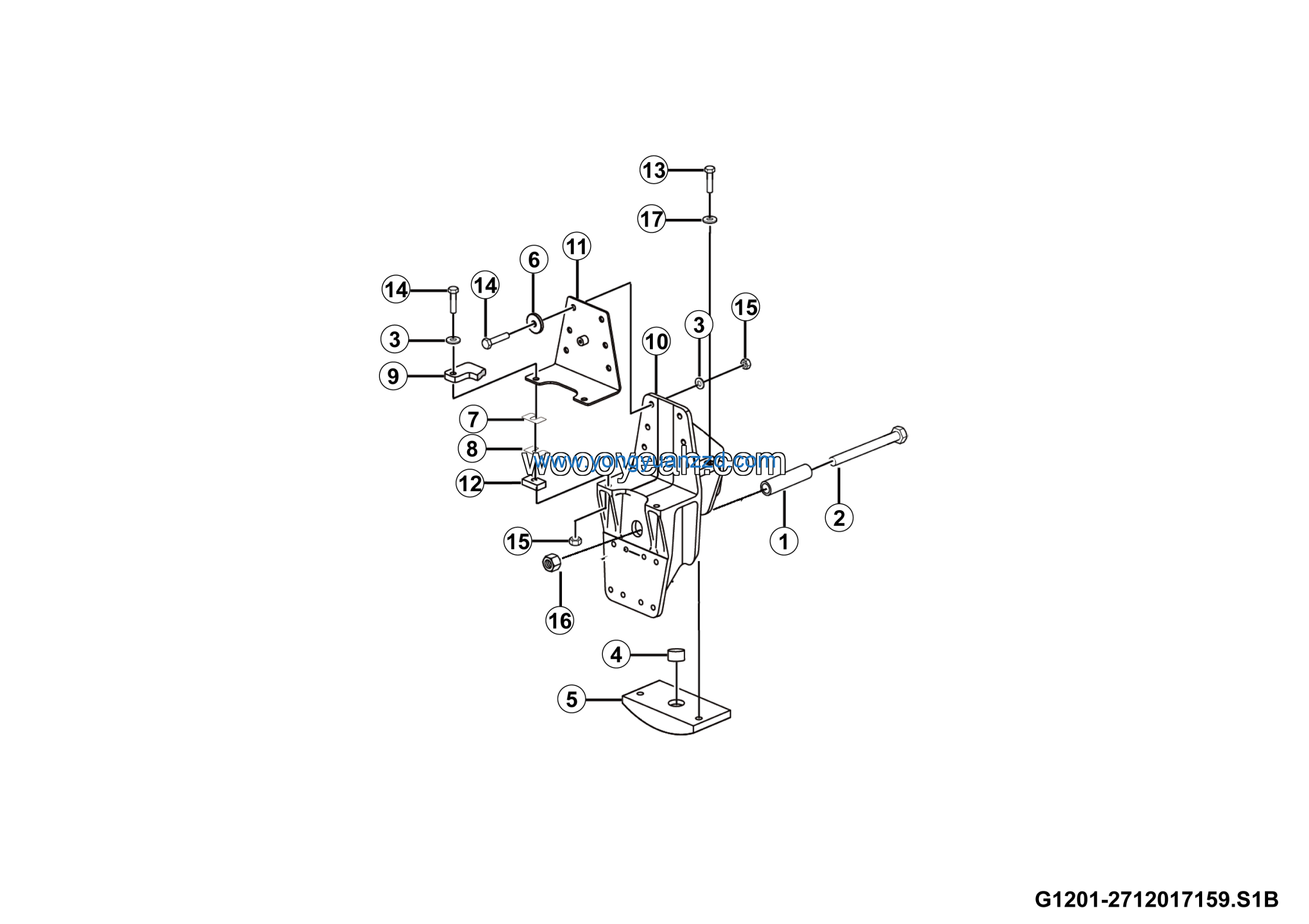

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front leaf sring rear support saddle | 27120119371 | 1 |
| 2 | Plate | 27120119391 | 1 |
| 3 | front leaf spring support pad | 27120118391 | 2 |
| 4 | Bolt GB5786-M12*1.25*45EpZn-8.8 | 4011010405 | 2 |
| 5 | Bolt GB5785-M18*1.5*85flZnyc-12.9-480 | 4011010505 | 8 |
| 6 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 8 |
| 7 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 2 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 9 | Bolt protection tube | 27120100211 | 1 |
| 10 | Bolt | 27120100221 | 1 |
| 11 | Washer gb1230-18-45 | 27120105414 | 16 |
| 12 | Cushion block | 27120113681 | 1 |
| 13 | Wear pad | 27120181311 | 1 |
| 14 | Big washer | 27120117501 | 6 |
| 15 | adjusting shim | 27120118401 | 2 |
| 16 | sdjusting shim | 27120118411 | 2 |
| 17 | backing plate | 27120118421 | 1 |
