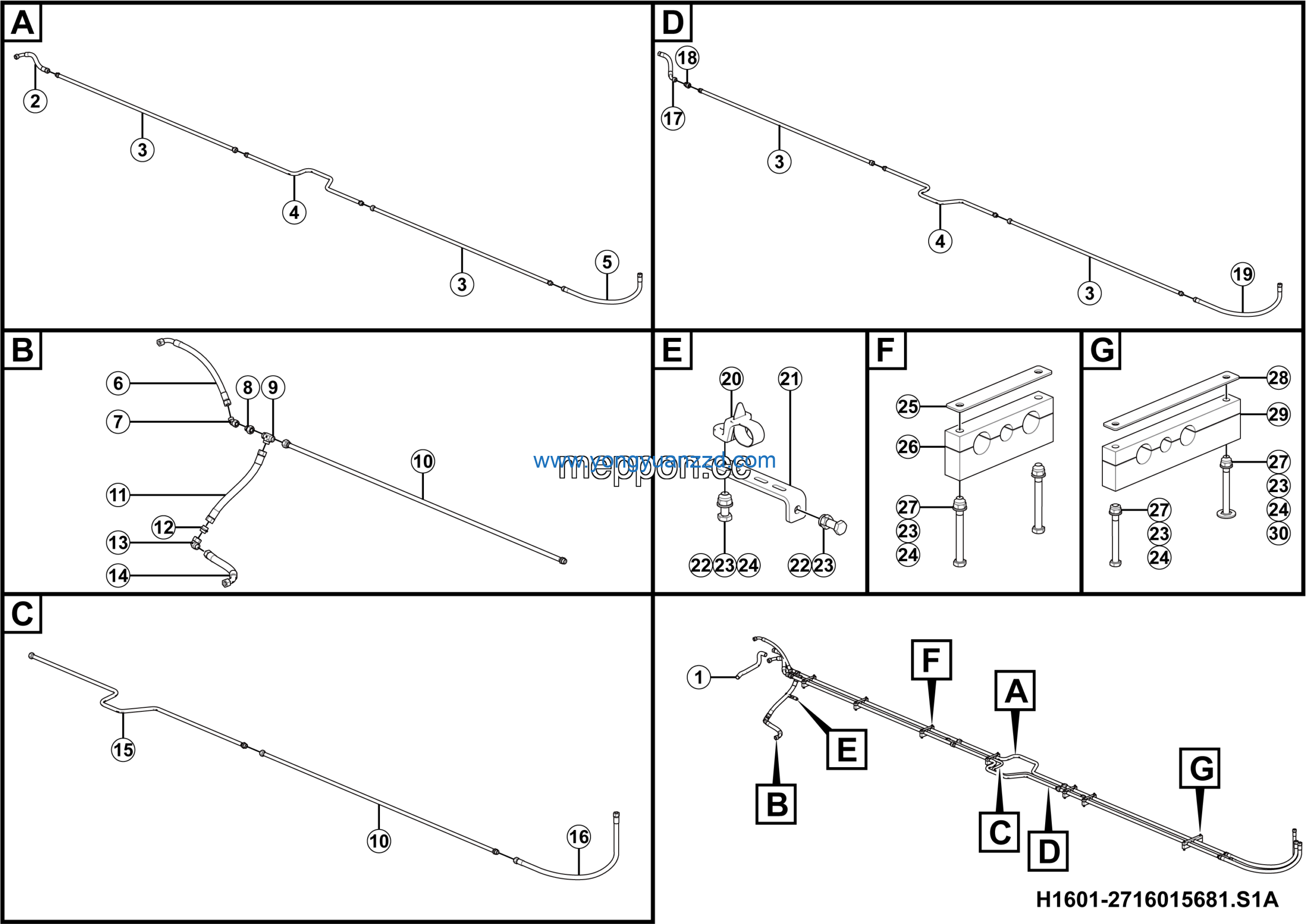

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Pipe accessory assy – H1601-2716015681.S1A
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > CMS50F > CS500W4E0A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe wldmt 03 | 27160156751 | 2 |
| 2 | Hose f451caca282816-540-hg | 4120720820 | 1 |
| 3 | Straight fitting g28lcfx | 4120719601 | 1 |
| 4 | JOINT LGB143-03625 | 4041001211 | 1 |
| 5 | Hose f451cace282816-460-hg | 4120720819 | 1 |
| 6 | Pipe wldmt 04 | 27160156761 | 1 |
| 7 | Hose f451caca222212-1300-ag | 4120720816 | 1 |
| 8 | Hose f7971c0c252516-580-ag | 4120720815 | 1 |
| 9 | Fitting da25somdcf | 4120720774 | 1 |
| 10 | Hose f797c9c9252516-1340-ag | 4120720818 | 1 |
| 11 | Oil suction hose 32*5 | 27160156861 | 1 |
| 12 | Cable tie HS-J117 | 4130704969 | 1 |
| 13 | Bracket | 27150127851 | 1 |
| 14 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 16 | Washer GB97.1-10EpZn-300HV | 4015000162 | 15 |
| 17 | Cover 190*30*3 | 27160156801 | 6 |
| 18 | Pipe clamp 2*34-25 | 27160156791 | 6 |
| 19 | Bolt GB5782-M10*100EpZn-8.8 | 4011000817 | 14 |
| 20 | Cover plate 285*30*3 | 27160156891 | 1 |
| 21 | Pipe clamp 2*34-25 | 27160156901 | 1 |
| 22 | Hose f7971cc9252516-640-ag | 4120720814 | 1 |
| 23 | Washer GB96.1-10EpZn-300HV | 4015000197 | 1 |
| 24 | Pipe wldmt 01 | 27160156731 | 4 |
| 25 | Pipe wldmt 02 | 27160156741 | 2 |
| 26 | Hose f797c9c9252516-1200-ag | 4120720817 | 1 |
| 27 | Hose f451cacf222212-750-ag | 4120720813 | 1 |
| 28 | Combination joint LGB143-13019 | 4041001650 | 1 |
| 29 | Joint RED28/22LOMDCF | 4120707107 | 2 |
| 30 | Tee t28lcfx | 4120719600 | 1 |
