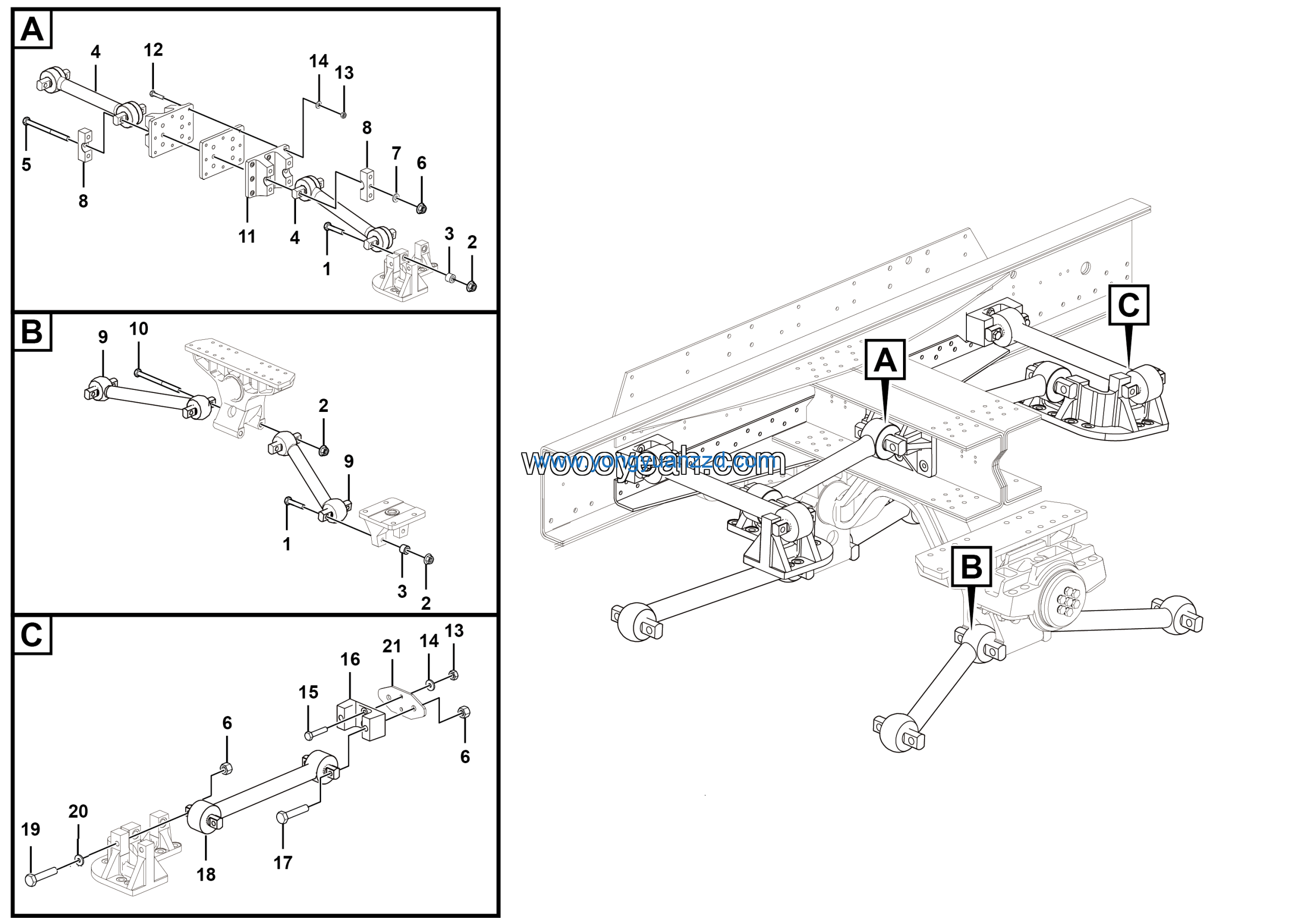

LGMG MT86H 2025 – Rear thrust rod installation assy – G1206-2712011416.S1G
Category: 2025 > MT86H > M086HWG67
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt M27*3*330-12.9 | 27120103721 | 4 |
| 2 | lower thrust bar scale | 27120116811 | 2 |
| 3 | Bolt GB5782-M16*115flZnyc-12.9-480 | 4011010678 | 8 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 5 | Washer GB1230-16EpZn-45 | 4015000001 | 24 |
| 6 | Bolt GB5782-M16*90flZnyc-12.9-480 | 4011010646 | 4 |
| 7 | Across thrust rod frame seat | 27120119961 | 2 |
| 8 | BOLT GB5782-M24*215FLZNYC-12.9-480 | 4110001231 | 4 |
| 9 | Transverse thrust rod | 4110705693 | 2 |
| 10 | Bolt GB5782-M24*150-12.9 | 4011010489 | 4 |
| 11 | Bolt GB5782-M27*180flZnyc-12.9-480 | 4011010563 | 12 |
| 12 | Lock washer NL24-G | 4190707582 | 4 |
| 13 | Plate | 27120119971 | 2 |
| 14 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 16 |
| 15 | Spacer sleeve | 27120105031 | 12 |
| 16 | Upr thrust rod assy | 4110001985 | 2 |
| 17 | Bolt | 27120115611 | 6 |
| 18 | Self-locking nut with the shoulder | 27120103611 | 14 |
| 19 | Washer GB1230-24EpZn-45 | 4015000003 | 6 |
| 20 | upper thrust bar scale | 27120116801 | 4 |
| 21 | Lower thrusting rod assembly | 27120103891 | 4 |
