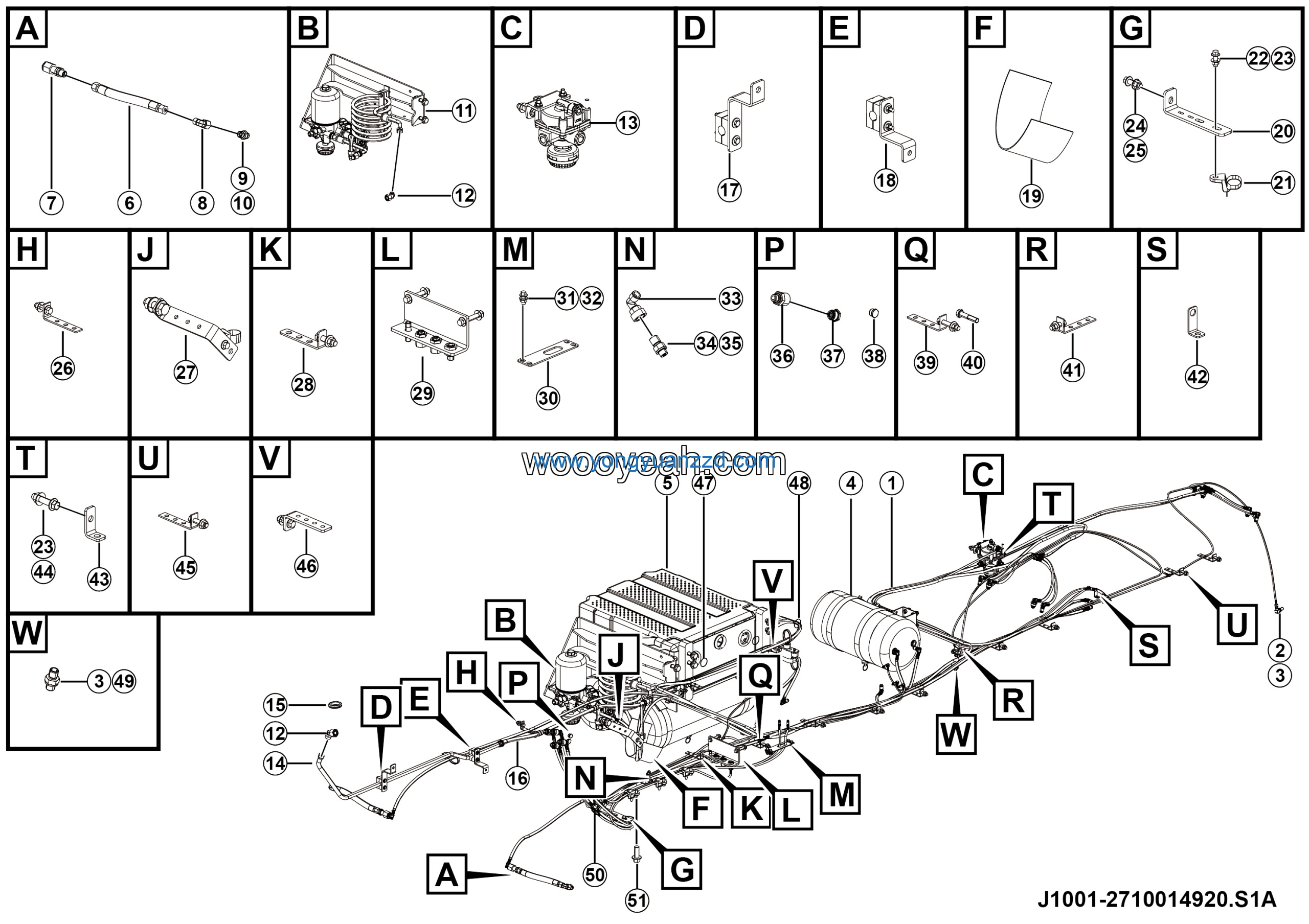

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Service brake assy – J1001-2710014920.S1A
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS25 > M0250Y3E0M201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer JB982-16 | 4015000141 | 2 |
| 2 | Dryer assy | 27100149471 | 1 |
| 3 | Combination joint LGB143-12213 | 4041001218 | 2 |
| 4 | Relay valve assy | 27100149391 | 1 |
| 5 | Pipe wldmt 01 | 27100149481 | 1 |
| 6 | Grommet 60*40*4 | 27100127531 | 1 |
| 7 | Steel braided hose 900 | 27100149651 | 1 |
| 8 | Bracket assy | 27100149831 | 1 |
| 9 | Bracket assy | 27100149761 | 1 |
| 10 | Heat insulation lg24-grm-008 | 4110708610 | 1 |
| 11 | Brake air line assy | 27100149701 | 1 |
| 12 | Bracket 200*40*56 | 27150138231 | 1 |
| 13 | Cable tie 14400342 | 4130703098 | 4 |
| 14 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 1 |
| 15 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 2 |
| 16 | Bolt GB16674.1-M12*40flZnyc-8.8-480 | 4011011424 | 1 |
| 17 | Nut gb6177.1-m12flznyc-8-480 | 4013010621 | 1 |
| 18 | Bracket assy | 27100149351 | 7 |
| 19 | Bracket assy | 27100149381 | 1 |
| 20 | Bracket assy | 27100149361 | 2 |
| 21 | Front hood sensor fixing assy | 27100149401 | 1 |
| 22 | Joint m12-m12 | 27100104301 | 1 |
| 23 | Fixing plate 150*40*3 | 27100139771 | 1 |
| 24 | Bolt GB16674.1-M8*20flZnyc-8.8-480 | 4011010966 | 6 |
| 25 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 6 |
| 26 | Combination joint LGB143-01205 | 4041010126 | 2 |
| 27 | M10-M12 Joint | 27100102051 | 1 |
| 28 | Washer JB982-10 | 4015000140 | 1 |
| 29 | Transition joint assy NG12-M16*1.5 | 4120705999 | 4 |
| 30 | Nut seat | 27110107601 | 8 |
| 31 | VSS NG8 | 4120000430 | 2 |
| 32 | Bracket assy | 2710014934-001 | 3 |
| 33 | Washer JB982-12 | 4015000327 | 2 |
| 34 | Bolt gb5782-m10*50-a4-70 | 4011011826 | 1 |
| 35 | Bracket assy | 27100149371 | 4 |
| 36 | Holder | 27340108431 | 1 |
| 37 | Holder | 27200142321 | 1 |
| 38 | Bolt gb16674.1-m10*45flznyc-8.8-480 | 4011011465 | 1 |
| 39 | Bracket assy | 27100149331 | 2 |
| 40 | Bracket assy | 27100149711 | 1 |
| 41 | Fagging | 27140108681 | 3 |
| 42 | fagging | 27140108691 | 1 |
| 43 | Joint M12-M12 | 27110101331 | 1 |
| 44 | 20l air reservoir assy | 27100149721 | 1 |
| 45 | Adapter joint | 4120714630 | 3 |
| 46 | Bolt GB16674.1-M10*25flZnyc-8.8-480 | 4011011015 | 3 |
| 47 | Battery box assy | 27100149221 | 1 |
| 48 | PIPE | 27100105211 | 2 |
| 49 | Nipple | 27100118011 | 2 |
| 50 | Combination joint LGB143-01810 | 4041001063 | 2 |
| 51 | CONNECTOR | 27100100661 | 2 |
