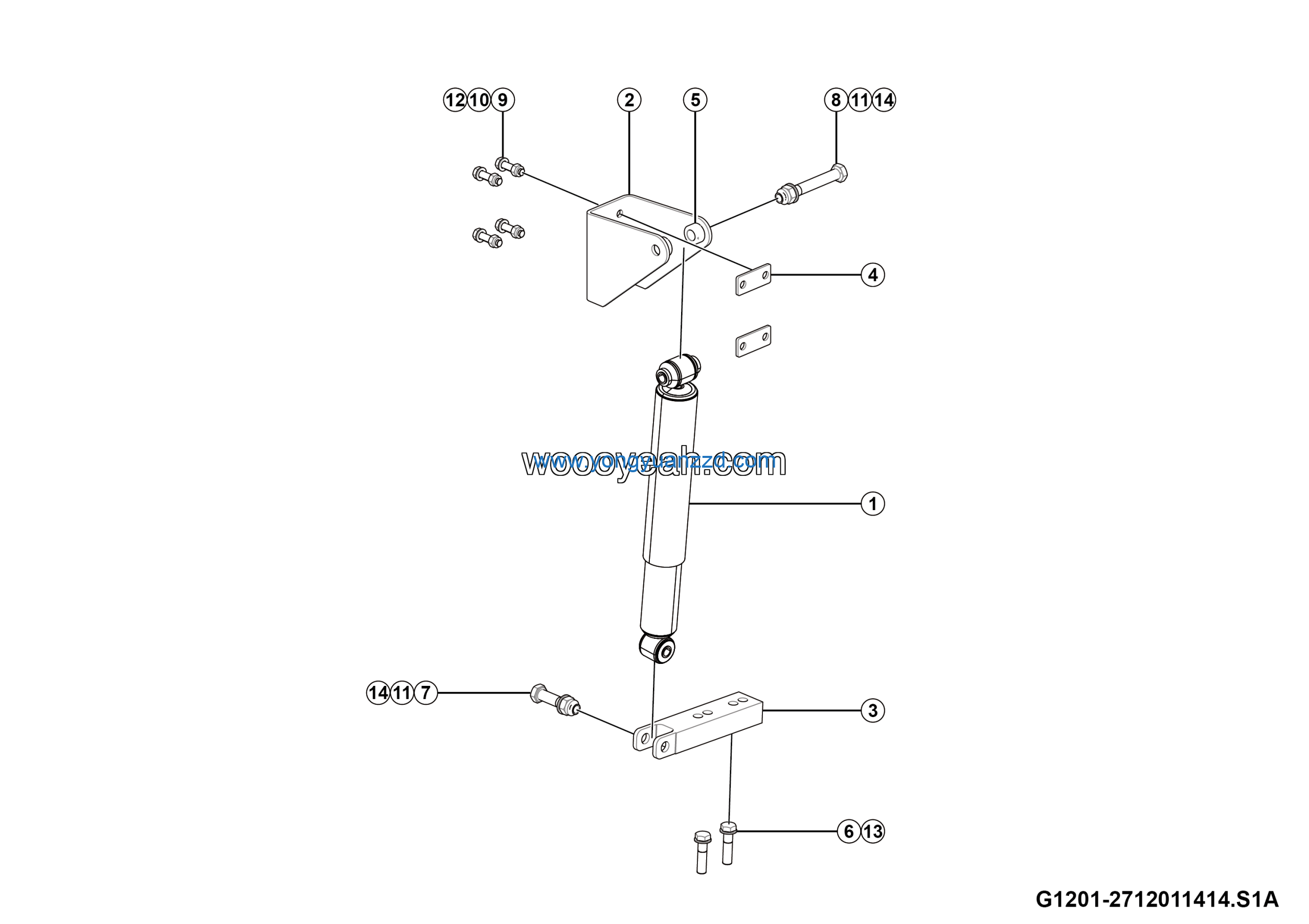

LGMG ？？？a？2？？？？？？？°a？2？¨？？？| 2025 – Shock absorber assembly – G1201-2712011414.S1A
Category: 2025 > ？？？a？2？？？？？？？°a？2？¨？？？| > MS50 > MS500W3E0M101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 8 |
| 2 | Nut GB6185.2-M24*1.5flZnyc-12-480 | 4013010258 | 4 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 4 | Washer GB97.1-20EpZn-300HV | 4015000176 | 4 |
| 5 | Washer GB97.1-24EpZn-300HV | 4015000167 | 4 |
| 6 | Telescopic shock absorber assy | 4110000931 | 2 |
| 7 | Shock absorber upper bracket assembly | 27120123481 | 2 |
| 8 | Stents under shock absorber | 27120115632 | 2 |
| 9 | Base plate | 27120114261 | 4 |
| 10 | Sleeve | 27120115621 | 4 |
| 11 | BOLT GB5785-M20*1.5*80flZnyc-12.9-480 | 4011010586 | 4 |
| 12 | BOLT GB5785-M24*1.5*110flZnyc-12.9-480 | 4011010575 | 2 |
| 13 | BOLT GB5785-M24*1.5*180flZnyc-12.9-480 | 4011010574 | 2 |
| 14 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 8 |
