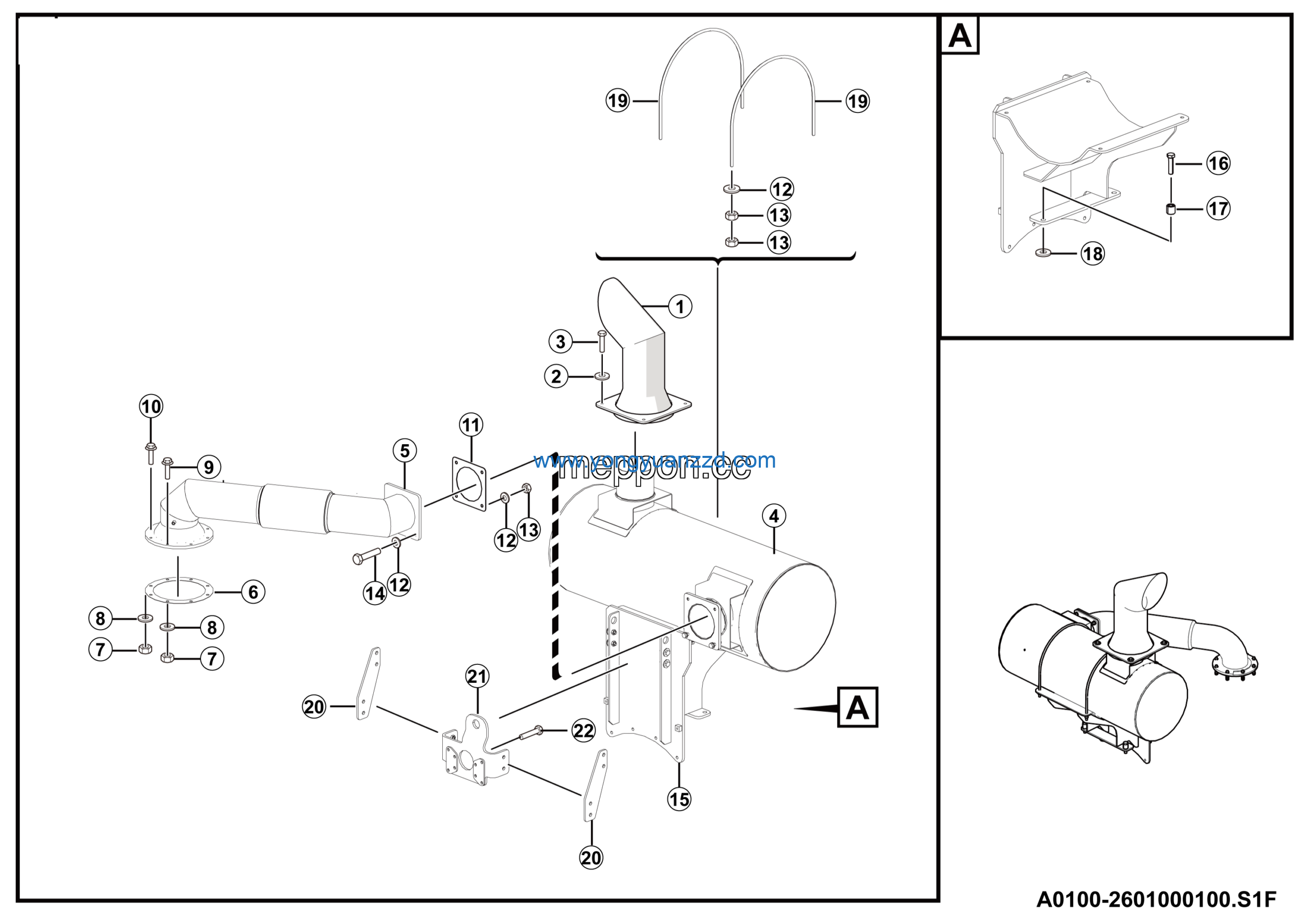

LGMG ？？2？？？？？？？？？？？o Hydrualic Excavator 2024 – EXHAUST SYSTEM – A0100-2601000100.S1F
Category: 2024 > ？？2？？？？？？？？？？？o Hydrualic Excavator > ME106 > E10600P3A004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB16674.1-M10*60flZnyc-10.9-480 | 4011011520 | 3 |
| 2 | Sealing gasket | 26010000281 | 1 |
| 3 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 12 |
| 4 | Nut GB6170-M12flZnyc-10-480 | 4013010343 | 12 |
| 5 | Bolt GB5783-M12*50flZnyc-10.9-480 | 4011010861 | 4 |
| 6 | Muffler bracket | 26012006741 | 1 |
| 7 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 2 |
| 8 | Locking sleeve LGB331-16*30*30flZnyc-45 | 4043003437 | 2 |
| 9 | Washer | 26010000601 | 2 |
| 10 | U-bolt m12*460*400 | 26012006771 | 2 |
| 11 | Exhaust pipe | 26010001021 | 1 |
| 12 | Plate | 26010001952 | 2 |
| 13 | Bracket | 26010001963 | 1 |
| 14 | SCREW | 4011011191 | 8 |
| 15 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 12 |
| 16 | Bolt GB5783-M12*35flZnyc-10.9-480 | 4011010490 | 12 |
| 17 | Muffler 8973361 | 4110706656 | 1 |
| 18 | Corrugated pipe Y280200159 | 4110706310 | 1 |
| 19 | Plate | 26010001121 | 1 |
| 20 | Nut GB6170-M10flZnyc-10-480 | 4013010346 | 16 |
| 21 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 16 |
| 22 | BOLT GB16674.1-M10*55flZnyc-10.9-480 | 4011011521 | 5 |
