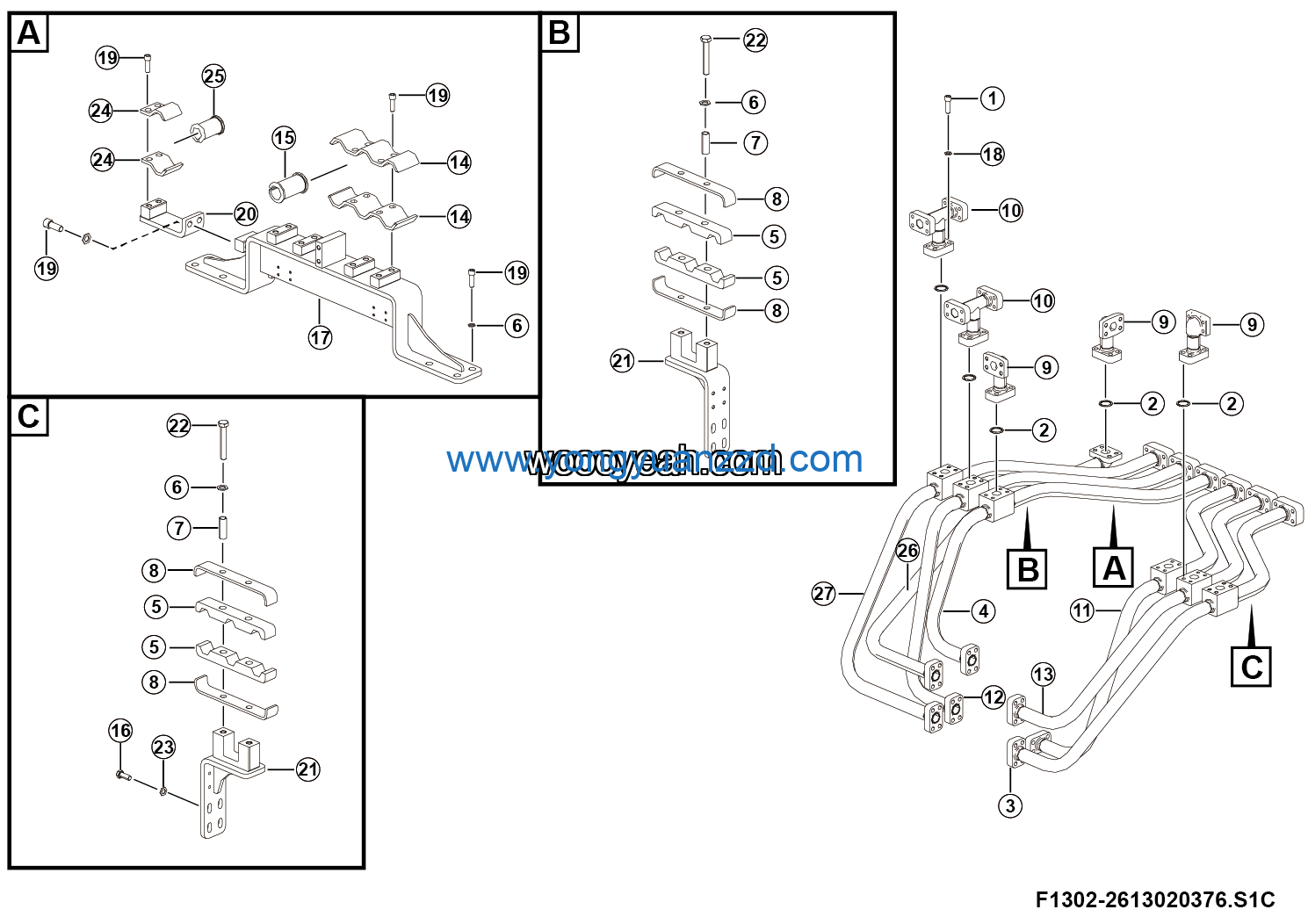

LGMG ？？2？？？？？？？？？？？o Hydrualic Excavator 2024 – Main valve to boom line – F1302-2613020376.S1C
Category: 2024 > ？？2？？？？？？？？？？？o Hydrualic Excavator > ME130 > E13000C3A008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe | 26130203951 | 2 |
| 2 | Pipe | 26130203881 | 1 |
| 3 | Pipe | 26130203771 | 1 |
| 4 | Pipe | 26130203861 | 1 |
| 5 | Clamp | 26130000361 | 4 |
| 6 | Rubber sleeve | 26130000381 | 6 |
| 7 | Bolt GB5783-M16*40flZnyc-12.9-480 | 4011010676 | 8 |
| 8 | Bracket | 26130203981 | 1 |
| 9 | Washer GB848-14flZnyc-300HV-480 | 4015010343 | 56 |
| 10 | Screw GB70.1-M20*50flZnyc-10.9-480 | 4014010289 | 20 |
| 11 | Screw GB70.1-M14*45flZnyc-10.9-480 | 4014010290 | 56 |
| 12 | Bracket | 26130204011 | 1 |
| 13 | Bracket | 26130204051 | 2 |
| 14 | Bolt GB5782-M20*120flZnyc-10.9-480 | 4011010894 | 4 |
| 15 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 8 |
| 16 | Pipe clamp | 26130205251 | 2 |
| 17 | Rubber sleeve | 26130205261 | 1 |
| 18 | Pipe | 26130205991 | 1 |
| 19 | Pipe | 26130206002 | 1 |
| 20 | RECT O-ring | 4190707659 | 14 |
| 21 | Pipe | 26130203821 | 1 |
| 22 | Pipe | 26130203801 | 1 |
| 23 | Rubber pipe clamp | 26130204031 | 4 |
| 24 | Washer GB97.1-20flZnyc-300HV-480 | 4015010338 | 14 |
| 25 | Sleeve | 26130000641 | 4 |
| 26 | Plate | 26130204041 | 4 |
| 27 | Pipe | 26130203971 | 5 |
