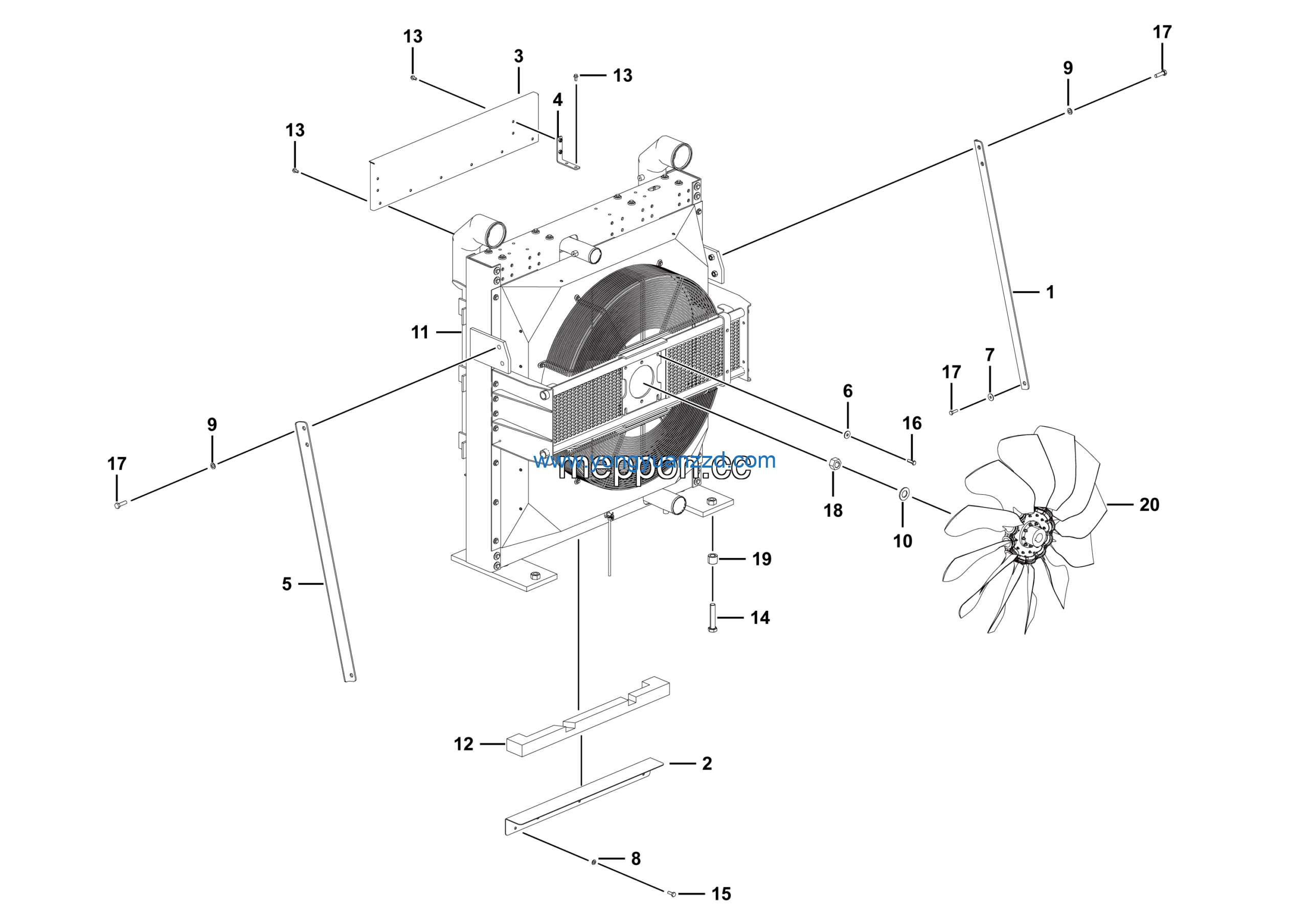

LGMG ？？2？？？？？？？？？？？o Hydrualic Excavator 2024 – RADIATOR – A0302-2603010154
Category: 2024 > ？？2？？？？？？？？？？？o Hydrualic Excavator > ME130 > E13000C3A008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer | 26030101861 | 1 |
| 2 | Water radiator & intermediate cooling 6357.031.0000 | 4110705228 | 1 |
| 3 | Sponge | 26030102022 | 1 |
| 4 | Bolt GB16674.1-M10*20flZnyc-8.8-480 | 4011010993 | 14 |
| 5 | Bolt GB5782-M24*120flZnyc-12.9-480 | 4011010601 | 4 |
| 6 | Bolt GB5783-M12*30flZnyc-10.9-480 | 4011010866 | 6 |
| 7 | Bolt GB5783-M12*35flZnyc-10.9-480 | 4011010490 | 4 |
| 8 | Bolt GB5783-M16*50flZnyc-10.9-480 | 4011010853 | 6 |
| 9 | Nut | 26030101871 | 1 |
| 10 | Sleeve | 26100100561 | 4 |
| 11 | Rear rod | 26030103151 | 1 |
| 12 | Fan WFCN21F00113 | 4110705217 | 1 |
| 13 | Plate | 26030101971 | 1 |
| 14 | Plate | 26030101991 | 1 |
| 15 | Bracket | 26030101881 | 2 |
| 16 | Rod | 26030103141 | 1 |
| 17 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 4 |
| 18 | Washer GB96.1-16flZnyc-300HV-480 | 4015010334 | 1 |
| 19 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 6 |
| 20 | No longer used | 4015010342 | 5 |
