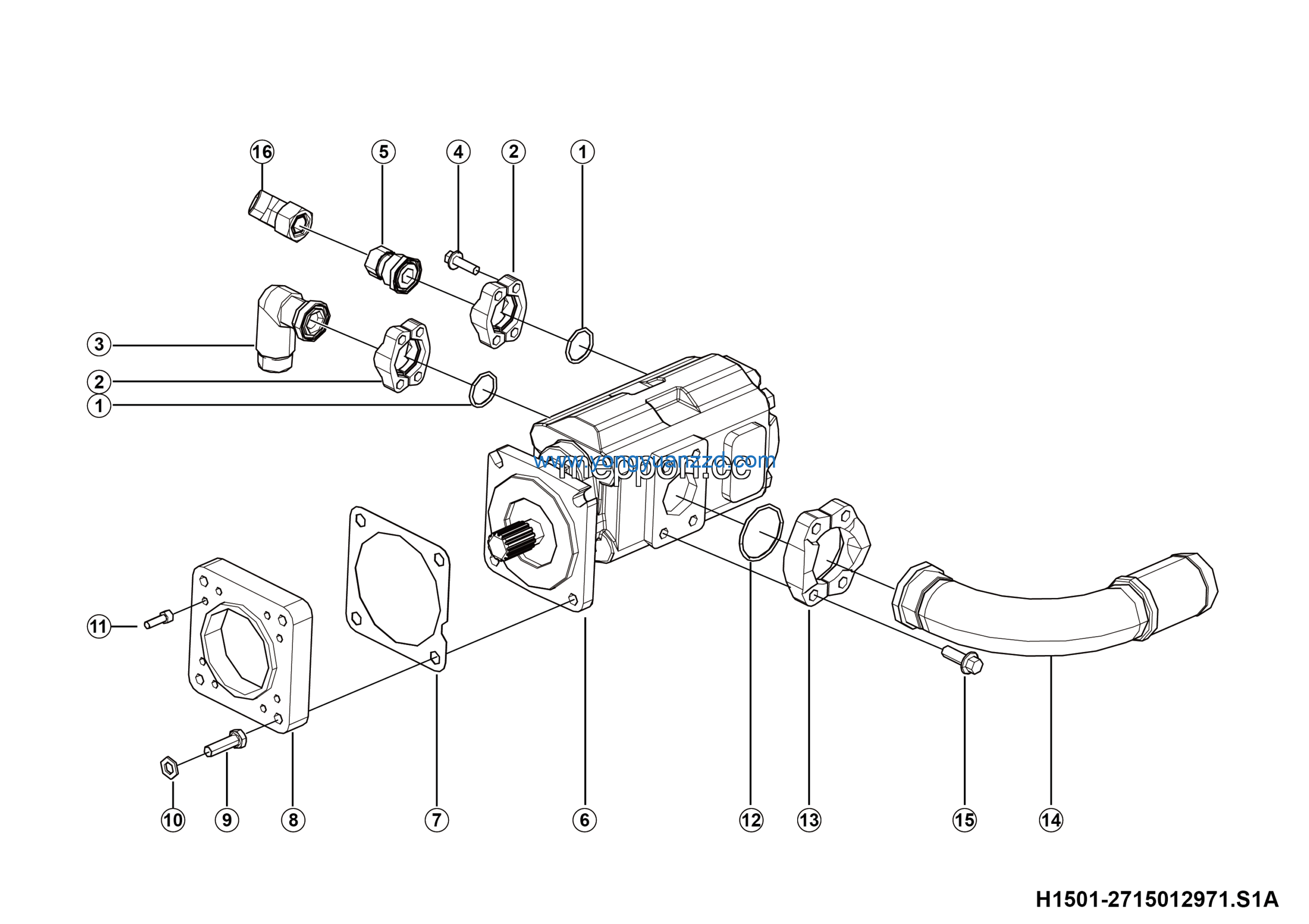

LGMG – 2025 – 63/40 Pumb assembly – H1501-2715012971.S1A
Category: 2025 > – > M060DW3E0M012
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 2 | Screw GB70.1-M8*25EpZn-12.9 | 4014010141 | 8 |
| 3 | O-ring GB3452.1-56.0*3.55G | 4030000133 | 1 |
| 4 | Split flange LGB117-320760 | 4041000009 | 1 |
| 5 | Intake oil tube of pump | 27150111431 | 1 |
| 6 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 4 |
| 7 | Combination joint LGB143-13019 | 4041001650 | 1 |
| 8 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 2 |
| 9 | Split flange LGB117-310491 | 4041000026 | 2 |
| 10 | Flange joint | 27160112131 | 1 |
| 11 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 8 |
| 12 | NIPPLE LGB148-13020 | 4041010425 | 1 |
| 13 | Gear pump JHP2063/2040R01 | 4120002446 | 1 |
| 14 | Washera | 27150112891 | 1 |
| 15 | CARGO TANK ASSEMBLY | 27150113721 | 1 |
| 16 | Bolt GB5783-M12*40EpZn-10.9 | 4011000757 | 4 |
