LGMG – 2025 – Air seat installation assy – L1301-2713013065.S1B
Category: 2025 > – > M060DW3E0M105

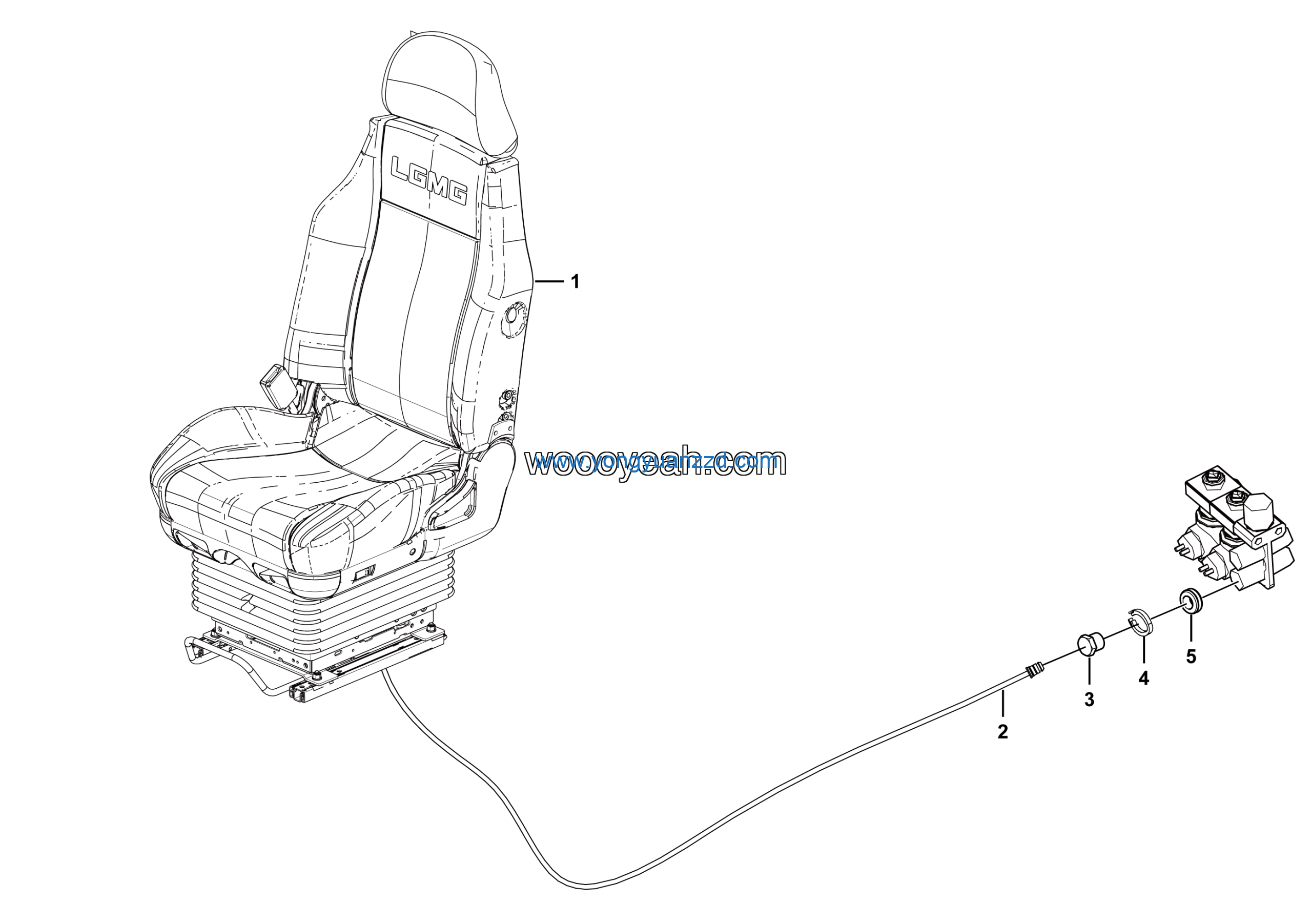

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assy | 4190003462 | 1 |
| 2 | Seat pipe | 27190101212 | 1 |
| 3 | Nut seat NG8 | 4120000194 | 1 |
| 4 | Clip spring NG8 | 4120000196 | 1 |
| 5 | Elastic element NG8 | 4120000197 | 1 |
