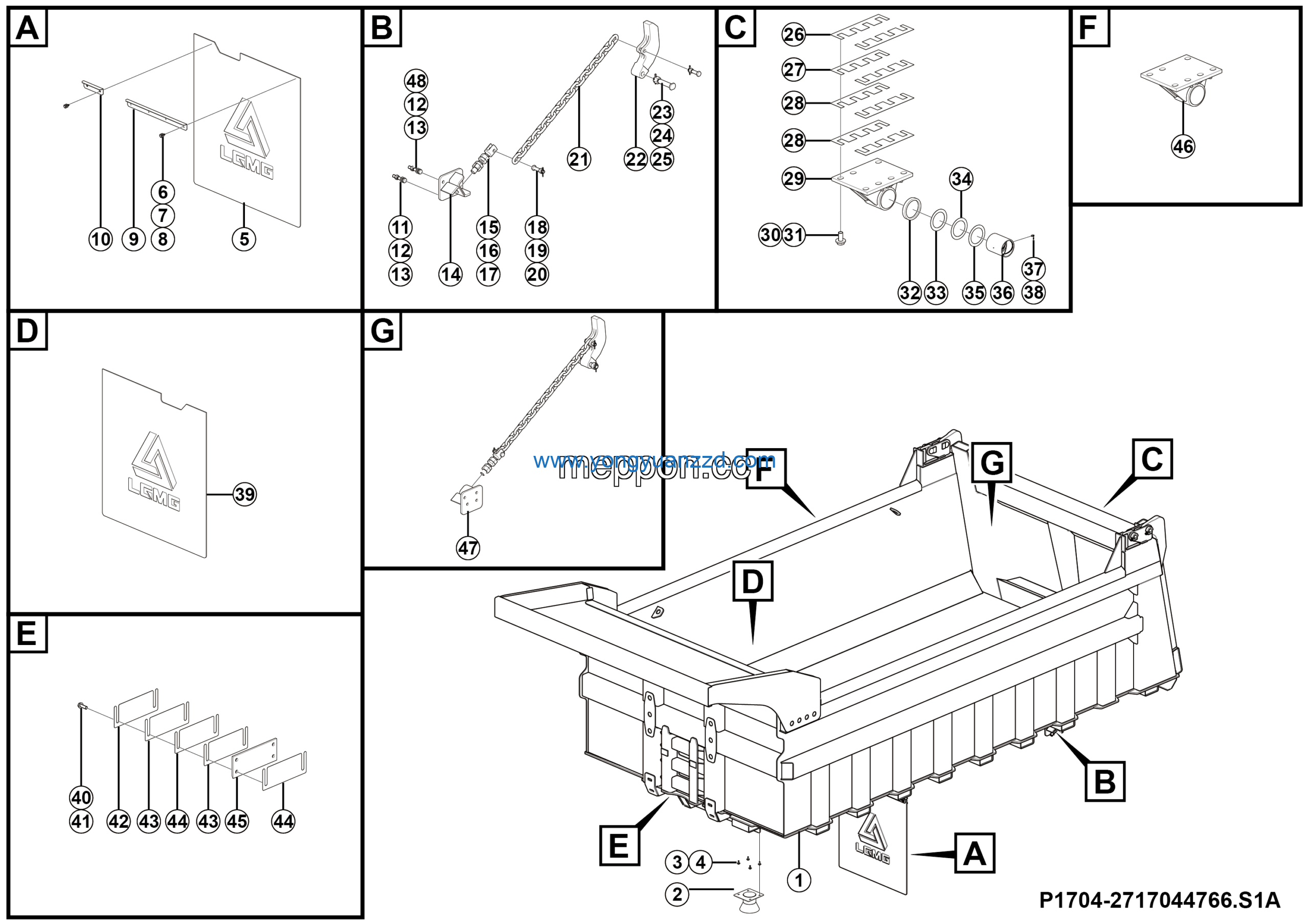

LGMG – 2025 – Body assy – P1704-2717044766.S1A
Category: 2025 > – > M060DW2E0M010
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27170243533 | 2 |
| 2 | Bolt GB5782-M16*90flZnyc-12.9-480 | 4011010646 | 4 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 16 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 8 |
| 5 | Plate | 27170150582 | 1 |
| 6 | Clevis | 27170448121 | 2 |
| 7 | Nut GB6170-M30EpZn-8 | 4013000173 | 4 |
| 8 | Nut GB6172.1-M30EpZn-8 | 4013000175 | 4 |
| 9 | Plate | 27170366964 | 4 |
| 10 | Nut GB6178-M16EpZn-8 | 4013000057 | 4 |
| 11 | Body wldmt | 27170447671 | 1 |
| 12 | Pin GB91-5*45EpZn-Q235A | 4016010004 | 4 |
| 13 | Φ16 chain | 27170104171 | 2 |
| 14 | PLATE | 27170106751 | 2 |
| 15 | Plate | 27170366972 | 2 |
| 16 | Nut GB6178-M24EpZn-10 | 4013010219 | 2 |
| 17 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 2 |
| 18 | Adjusting shim3 | 27170117672 | 4 |
| 19 | Adjustibe heel plate 2 | 27170106832 | 4 |
| 20 | Adjustibe heel plate 1 | 27170106822 | 8 |
| 21 | Plate | 27170167522 | 1 |
| 22 | Inlet branch assembly | 27170255971 | 1 |
| 23 | Bolt GB5786-M30*2*70EpZn-10.9 | 4011010282 | 14 |
| 24 | WASHER | 4015010208 | 21 |
| 25 | PIP | 27170106911 | 2 |
| 26 | Plate | 27170110793 | 2 |
| 27 | Plate | 27170110783 | 2 |
| 28 | PLATE | 27170110771 | 2 |
| 29 | Plate | 27170175081 | 2 |
| 30 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 31 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
| 32 | MUD MAT SKIN | 27170177022 | 1 |
| 33 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 34 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 8 |
| 35 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 36 | washer | 27170131871 | 3 |
| 37 | washer | 27170131861 | 3 |
| 38 | washer | 27170131851 | 3 |
| 39 | Plate | 27170131842 | 2 |
| 40 | Plate | 27170167542 | 1 |
| 41 | Plate | 27170150612 | 1 |
| 42 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 4 |
| 43 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 44 | MUD MAT SKIN | 27170177012 | 1 |
| 45 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 12 |
| 46 | Washer GB96.1-8EpZn-300HV | 4015000256 | 24 |
| 47 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 48 | Plate | 27170243543 | 2 |
