LGMG – 2025 – Bracket assembly – H1501-2715012978
Category: 2025 > – > M060DW3E0M010

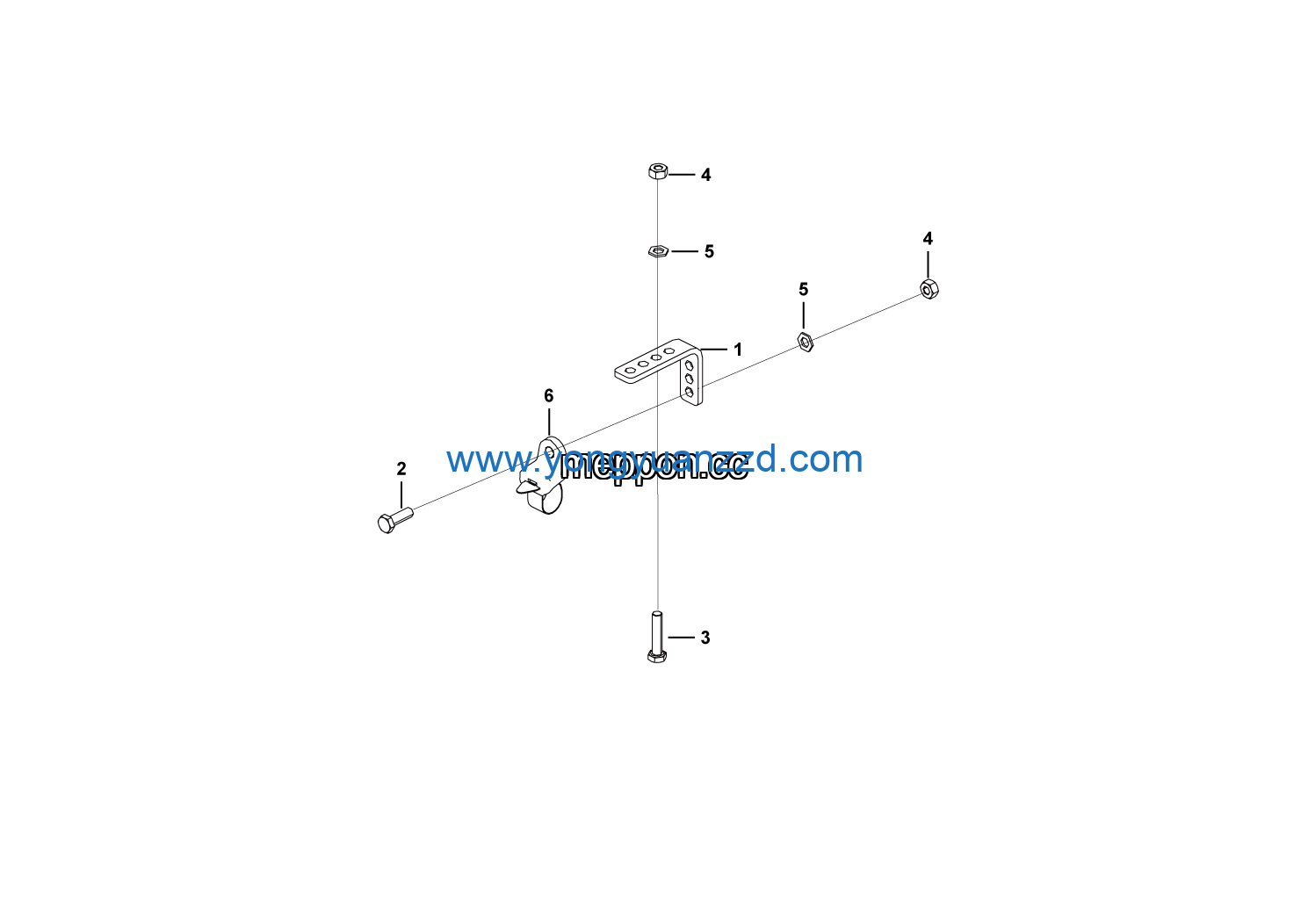

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | L bracket 100*25*70 | 27150129891 | 1 |
| 2 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 3 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 6 | Cable tie HS-J117 | 4130704969 | 1 |
