LGMG – 2025 – Bridge electrical system – K1301-2713014199.S1A
Category: 2025 > – > M060DW3E0M011

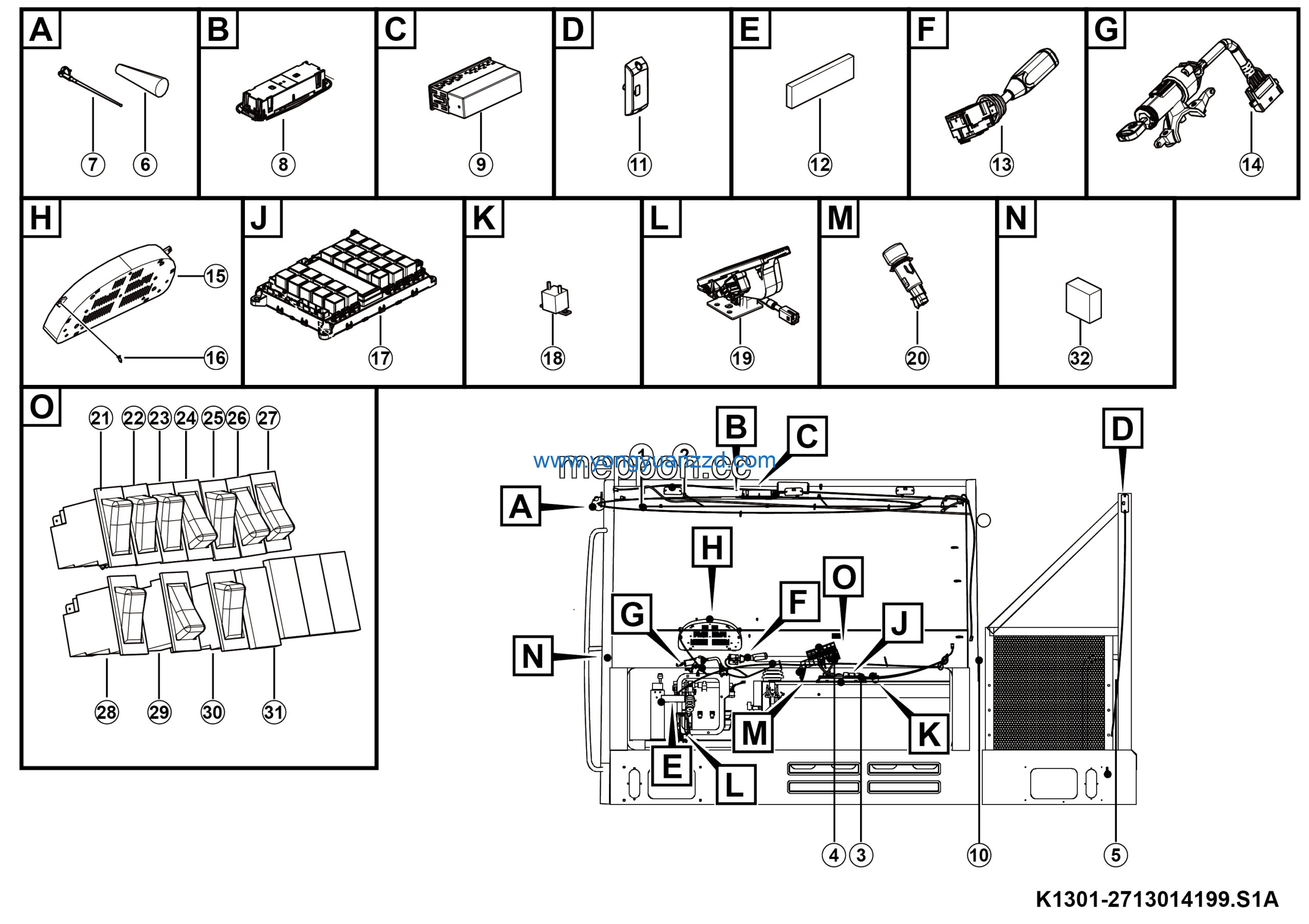

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Side wiper sys（RH） | 4130000816 | 1 |
| 2 | Cab FR position light | 4130000954 | 4 |
| 3 | RH FR wiper assy | 4130000951 | 1 |
| 4 | Combination switch CS-102621 | 4130001174 | 1 |
| 5 | Lgnition lock-81.46433.6009-1 | 4130001175 | 1 |
| 6 | Stepping instrument panel | 4130701335 | 1 |
| 7 | Self-assembled standard parts assembly | 27130121631 | 1 |
| 8 | Elec box KZH-24V-002A | 4130705742 | 1 |
| 9 | Contactor | 4130701341 | 1 |
| 10 | ELEK accelerator pedal 403269 | 4130701363 | 1 |
| 11 | Cab ceiling harness | 27130118092 | 1 |
| 12 | Cigarette lighter LG770 | 4130000364 | 1 |
| 13 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 14 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 15 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 16 | Main-beam headlamp rocker switch JK939C | 4130000331 | 1 |
| 17 | Cab RR work lamp rocker switch JK939C | 4130000342 | 1 |
| 18 | Work lamp rocker switch JK939C | 4130000319 | 1 |
| 19 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 20 | Horn rocker switch JK939C | 4130000315 | 1 |
| 21 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 22 | Head cap harness | 27130118101 | 1 |
| 23 | Side window wiper rocker switch JK939C | 4130000341 | 1 |
| 24 | Cover plate | 4130000328 | 4 |
| 25 | Door lamp switch LG751 | 4130000323 | 1 |
| 26 | Bridge wiring harness | 27130142003 | 1 |
| 27 | Warped switch harness | 27130142051 | 1 |
| 28 | Platform harness | 27200106091 | 1 |
| 29 | Horn TX1033AR29 | 4130000299 | 2 |
| 30 | Antenna QT1290B259 | 4130000300 | 1 |
| 31 | Indoor ceiling lamp LG751 | 4130000312 | 1 |
| 32 | Bluetooth radio SL-630 | 4130705152 | 1 |
