LGMG – 2025 – Mid axle limit block assy – G1201-2712018133.S1A
Category: 2025 > – > M060DW3E0M012

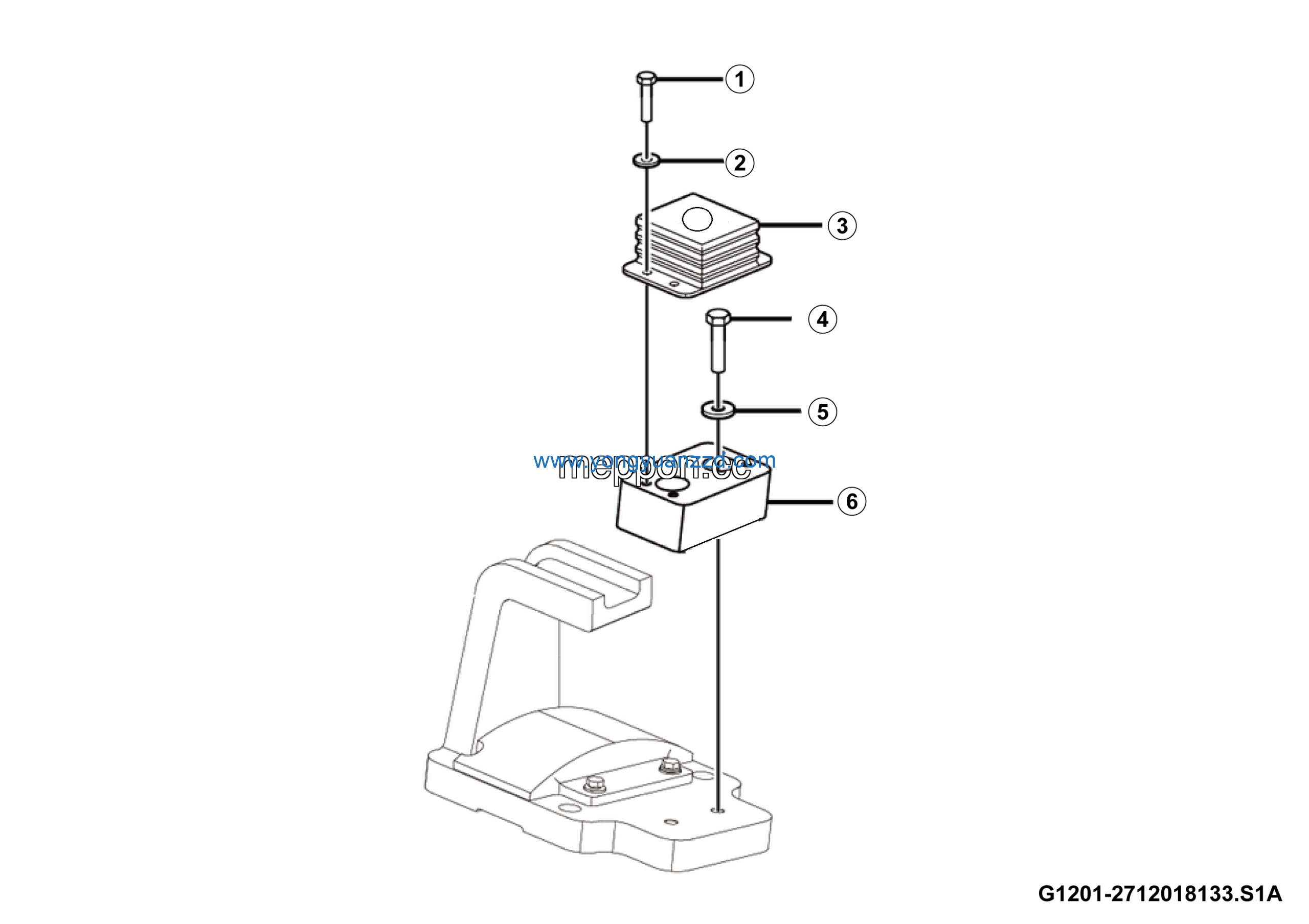

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 3 | Leaf spring limiting block | 4110706916 | 1 |
| 4 | Bolt GB5786-M16*1.5*55EpZn-8.8 | 4011000698 | 2 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 6 | Bearer of middle axle spacing block1 | 27120117341 | 1 |
