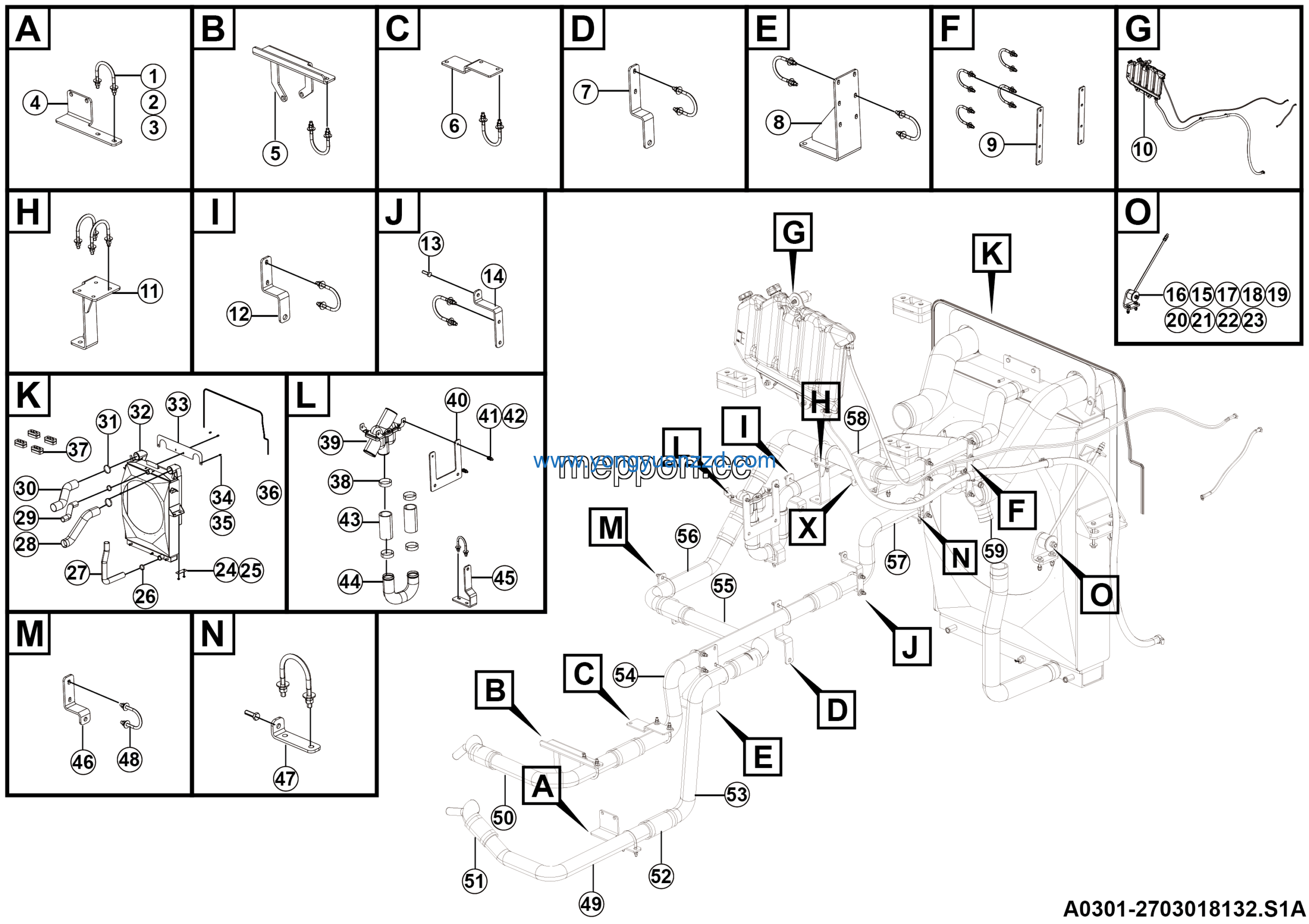

LGMG – 2025 – Radiator assembly – A0301-2703018132.S1A
Category: 2025 > – > M060DW2E0M010
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Expansion tank | 27030109851 | 1 |
| 2 | Support | 27030148041 | 1 |
| 3 | Board 194*77*40 | 27030152291 | 1 |
| 4 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 5 | Plate | 27030120971 | 1 |
| 6 | Radiator bar | 4110001451 | 2 |
| 7 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 8 | Support | 27030109692 | 2 |
| 9 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 10 | Plate | 27030109731 | 2 |
| 11 | Bracket | 27030137741 | 1 |
| 12 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 13 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 14 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 12 |
| 16 | Plate | 27030109021 | 2 |
| 17 | Bolt GB5783-M10*90EpZn-8.8 | 4011000956 | 4 |
| 18 | Butterfly spring clamp φ57-φ79 | 4190708163 | 26 |
| 19 | Hose 70*5*850 | 27030181341 | 1 |
| 20 | plate | 27030112251 | 1 |
| 21 | Hose 72*5*604 | 27030152191 | 1 |
| 22 | Ubolt | 27030120641 | 15 |
| 23 | Oil suction rubber tube | 27030112242 | 1 |
| 24 | Butterfly spring clamp φ93-φ118 | 4190708166 | 4 |
| 25 | Radiator assy M9116553 | 4110706020 | 1 |
| 26 | Baffle | 27030137901 | 1 |
| 27 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 28 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 29 | Seal | 27030101801 | 1 |
| 30 | Radiator shock absorber assy | 4110001445 | 2 |
| 31 | Butterfly spring clamp φ45-φ67 | 4190708161 | 6 |
| 32 | External thermostat | 4110000623 | 1 |
| 33 | Washer GB96.1-8EpZn-300HV | 4015000256 | 36 |
| 34 | Plate | 27030120941 | 1 |
| 35 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 36 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 2 |
| 37 | Pipe | 27030121091 | 2 |
| 38 | Pipe | 27030138081 | 1 |
| 39 | Bracket | 27030138101 | 1 |
| 40 | Bracket | 27030138111 | 2 |
| 41 | Plate | 27030120961 | 1 |
| 42 | U-polit | 27030121702 | 3 |
| 43 | Pipe | 27030137671 | 1 |
| 44 | Nut GB6170-M8EpZn-8 | 4013000033 | 72 |
| 45 | Pipe | 27030149941 | 1 |
| 46 | Connecting pipe 72*6*120 | 27030155321 | 5 |
| 47 | Connecting pipe 72*6*150 | 27030155311 | 6 |
| 48 | Pipe | 27030137661 | 1 |
| 49 | Pipe | 27030137621 | 1 |
| 50 | Pipe | 27030137651 | 3 |
| 51 | Pipe | 27030137641 | 1 |
| 52 | Pipe 60*1.5*1300 | 27030170471 | 1 |
| 53 | Pipe | 27030138091 | 1 |
| 54 | Connecting hose | 27030137891 | 1 |
| 55 | Bracket 305*201*80 | 27030178001 | 1 |
| 56 | Support | 27030148071 | 1 |
| 57 | Bracket | 27030137731 | 1 |
| 58 | Bracket | 27030137711 | 1 |
| 59 | Plate | 27030147991 | 2 |
