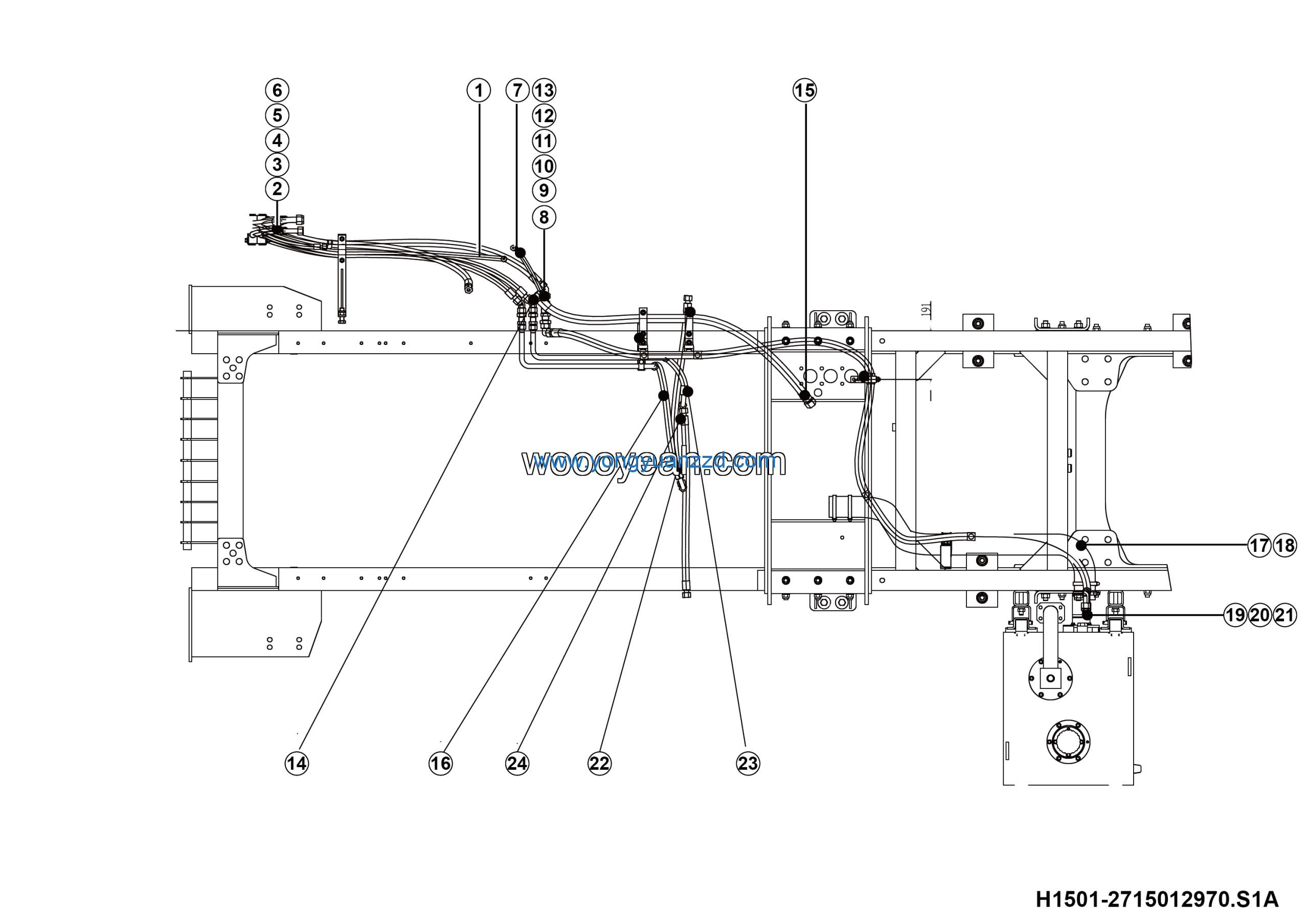

LGMG – 2025 – Sterring accessory assembly – H1501-2715012970.S1A
Category: 2025 > – > M060DW3E0M010
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bulkhead joint M26 | 27150109061 | 1 |
| 2 | Reducing joint RED18/08LOMDCF | 4120001300 | 1 |
| 3 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 4 | Hose LGB128-006081 | 4041010322-003 | 1 |
| 5 | Combination joint LGB143-12213 | 4041001218 | 2 |
| 6 | Hose F351TCCACA222212-1270 | 4120712165 | 1 |
| 7 | Nut | 27150103221 | 1 |
| 8 | Hose clamp JB8870-D90 | 4017000013 | 4 |
| 9 | Oil suck hose | 27150129901 | 1 |
| 10 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 11 | Hose F481CACA080804-1820 | 4120711919 | 1 |
| 12 | O-ring LGB168-12331 | 4041000779 | 1 |
| 13 | Hose LGB165-010350 | 4041010197-002 | 1 |
| 14 | Hose LGB127-206075 | 4041011075-016 | 1 |
| 15 | Hose LGB128-006054 | 4041010323-005 | 1 |
| 16 | Hose LGB127-206075 | 4041011075-015 | 1 |
| 17 | Hose LGB129-006162 | 4041010338-009 | 1 |
| 18 | Hose F681CACE181810-1800 | 4120711921 | 1 |
| 19 | Hose F451TCCACE151508-1680 | 4120712166 | 1 |
| 20 | Hose F451TCCACE151508-1550 | 4120711918 | 1 |
| 21 | Combination joint LGB143-01406 | 4041001047 | 1 |
| 22 | Hose F481CACF080804-420 | 4120711464-002 | 1 |
| 23 | Tee CC-26 | 4190002536 | 1 |
| 24 | Combination joint LGB143-12616 | 4041001417 | 1 |
