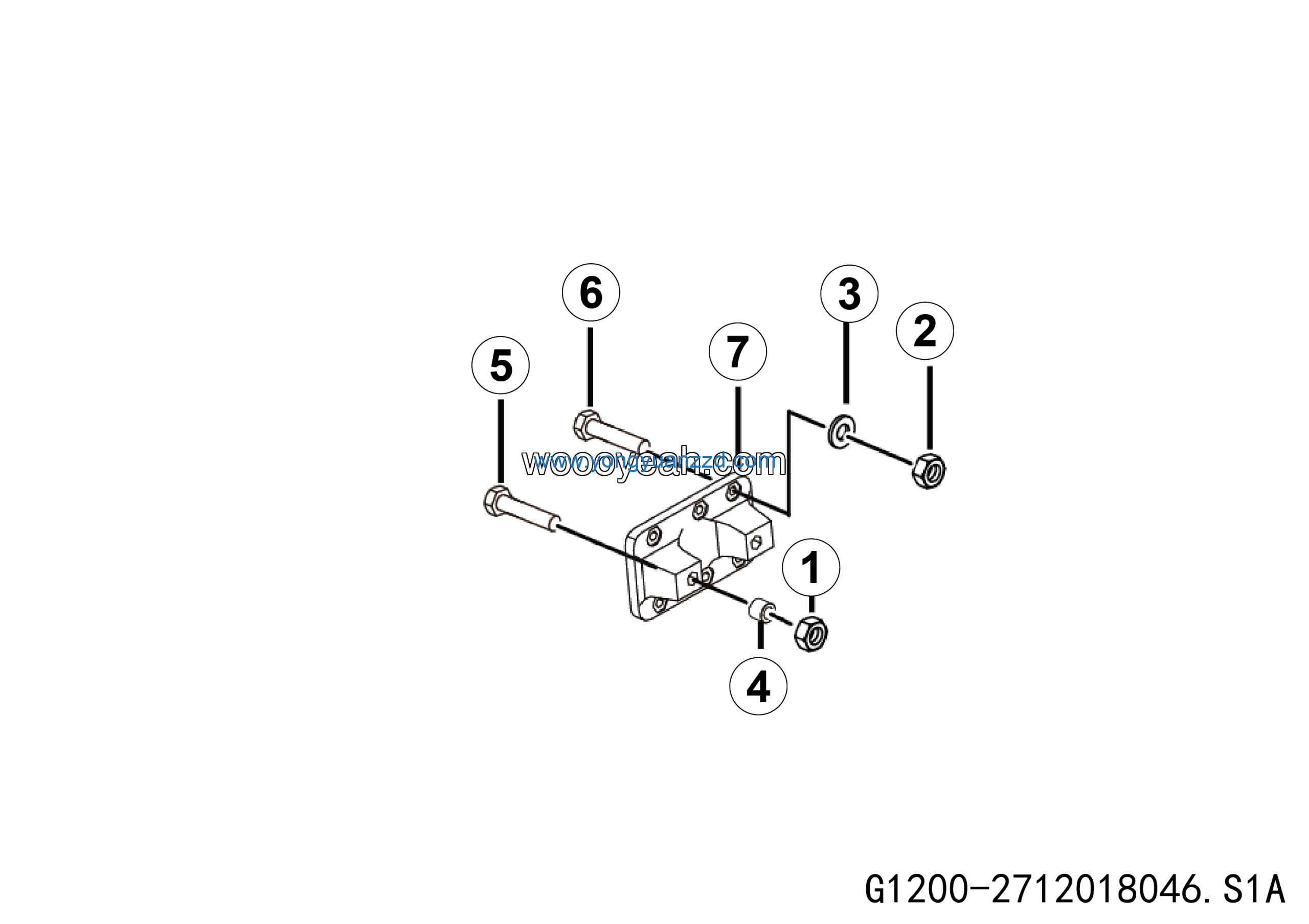

LGMG – 2025 – Transverse torque rod mount assy – G1200-2712018046.S1A
Category: 2025 > – > M060DW3E0M011
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Self-locking nut with the shoulder | 27120103611 | 2 |
| 2 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 6 |
| 3 | Washer GB1230-16EpZn-45 | 4015000001 | 6 |
| 4 | Sleeve | 27120117401 | 2 |
| 5 | Bolt GB5782-M24*245flZnyc-12.9-480 | 4011010694 | 2 |
| 6 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 6 |
| 7 | Seat | 27120116991 | 1 |
