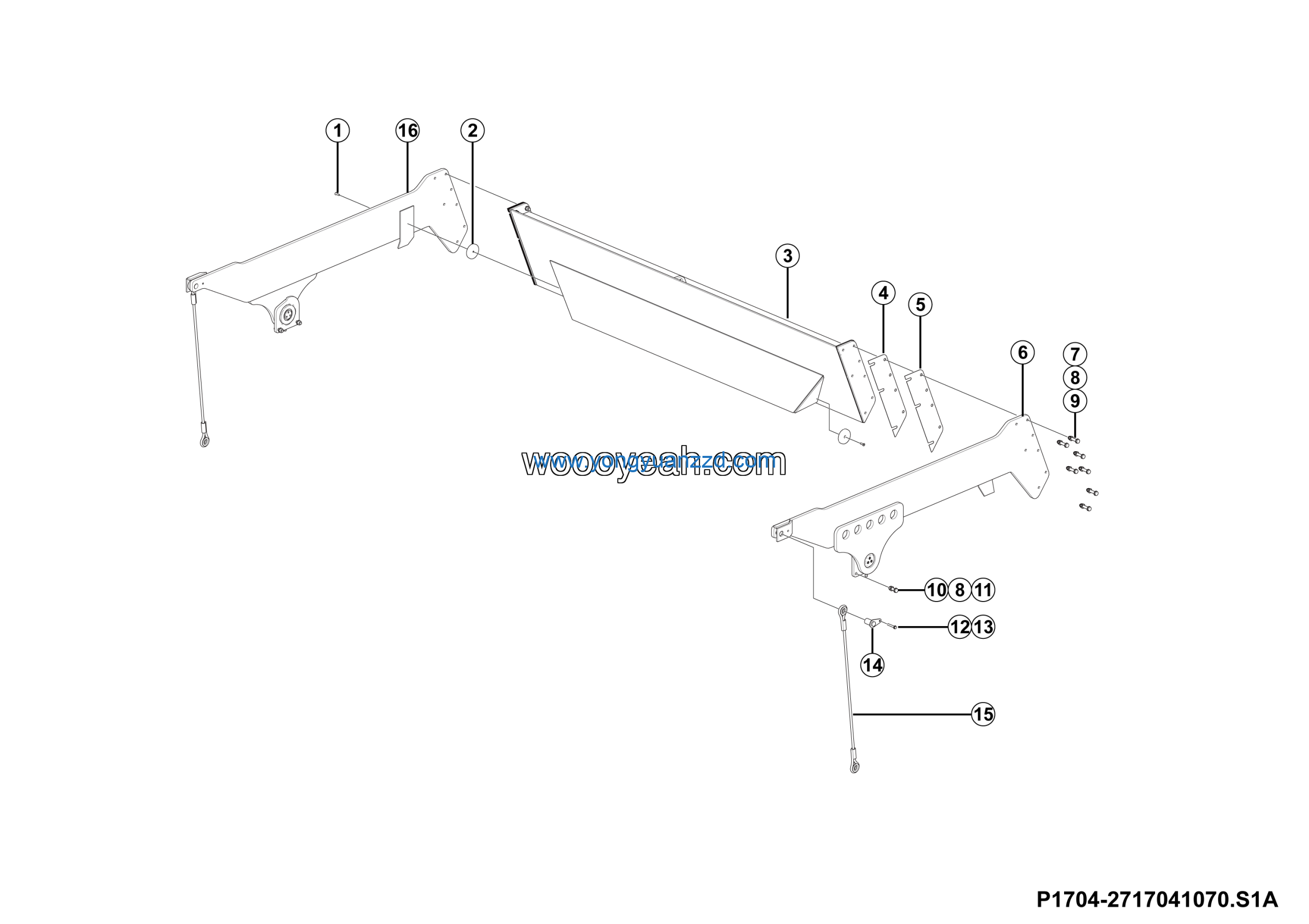

LGMG AT40 2025 – Body tailgate installation – P1704-2717041070.S1A
Category: 2025 > AT40 > A0400W3M0A105
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M18*65flZnyc-12.9-480 | 4011010912 | 6 |
| 2 | Nut GB6185.1-M18flZnyc-12-480 | 4013010321 | 4 |
| 3 | Bolt GB5782-M12*75flZnyc-10.9-480 | 4011011174 | 2 |
| 4 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 2 |
| 5 | Shaft wldmt | 27170404831 | 2 |
| 6 | Wire rope assembly | 27170402351 | 2 |
| 7 | Cargo box tailgate right support assembly | 27170402312 | 1 |
| 8 | Screw GB70.3-M10*35EpZn-8.8 | 4014010067 | 2 |
| 9 | Plate | 27170410671 | 2 |
| 10 | Rear baffle assembly | 2717040225 | 1 |
| 11 | Rear baffle side panel 766 * 170 * 6 | 27170399251 | 2 |
| 12 | Rear baffle side panel 766 * 170 * 2 | 27170399781 | 10 |
| 13 | Tailgate left support assembly | 2717040227 | 1 |
| 14 | Bolt GB5785-M18*1.5*90flZnyc-12.9-480 | 4011010496 | 15 |
| 15 | Washer GB97.1-18flZnyc-300HV-480 | 4015010333 | 39 |
| 16 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 14 |
