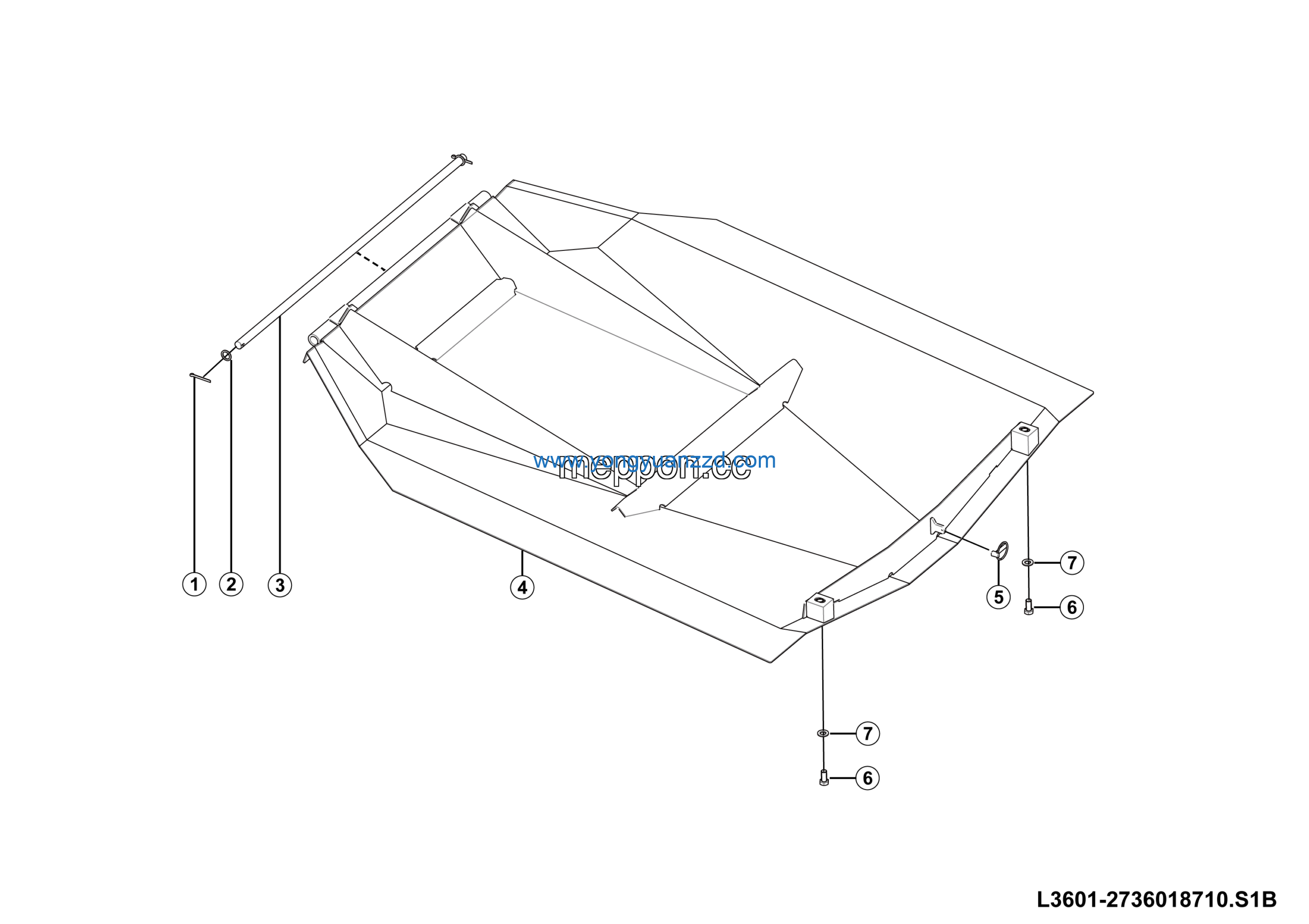

LGMG AT40 2025 – Bottom guard assembly – L3601-2736018710.S1B
Category: 2025 > AT40 > A0400W3M0A114
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pin GB91-5*40flZnyc-Q235A-480 | 4016010133 | 2 |
| 2 | Washer JB982-18 | 4015000298 | 2 |
| 3 | Bottom guard front pin 18*892 | 27360187211 | 1 |
| 4 | Bottom guard wldmt | 27360187112 | 1 |
| 5 | Pin din11023-8epzn-40 | 4016010274 | 1 |
| 6 | Bolt GB5783-M12*25flZnyc-8.8-480 | 4011011038 | 2 |
| 7 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 2 |
