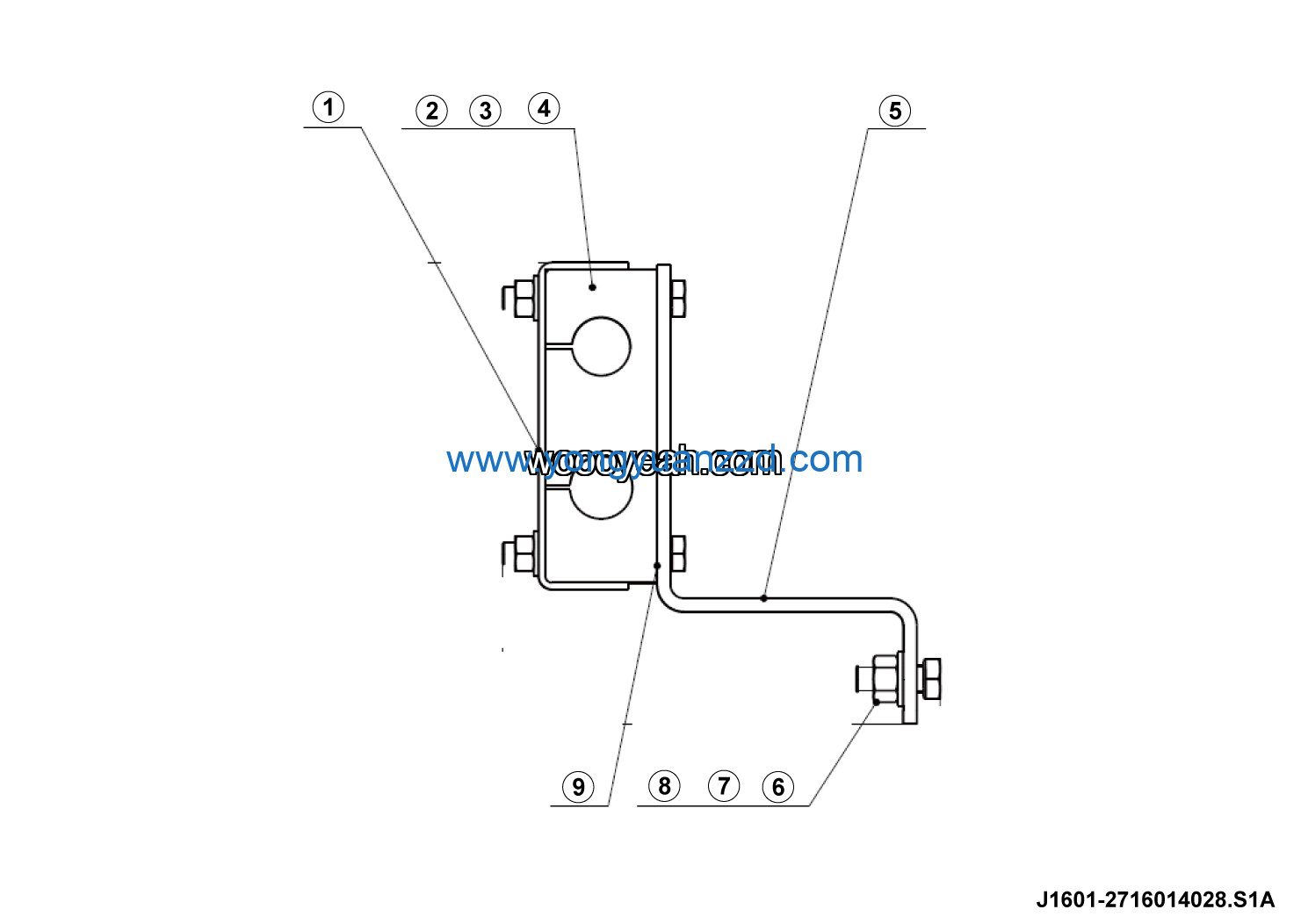

LGMG AT40 2025 – Bracket assy 03 – J1601-2716014028.S1A
Category: 2025 > AT40 > A0400W3M0A104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe clamp cover plate 145*40*40 | 27160140351 | 1 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 4 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 2 |
| 5 | Bracket 205*40*116 | 27160140291 | 1 |
| 6 | Nut GB6170-M12EpZn-10 | 4013000150 | 1 |
| 7 | Bolt GB5783-M12*30EpZn-10.9 | 4011000747 | 1 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 9 | Pipe clamp 26*28 | 27160144651 | 1 |
