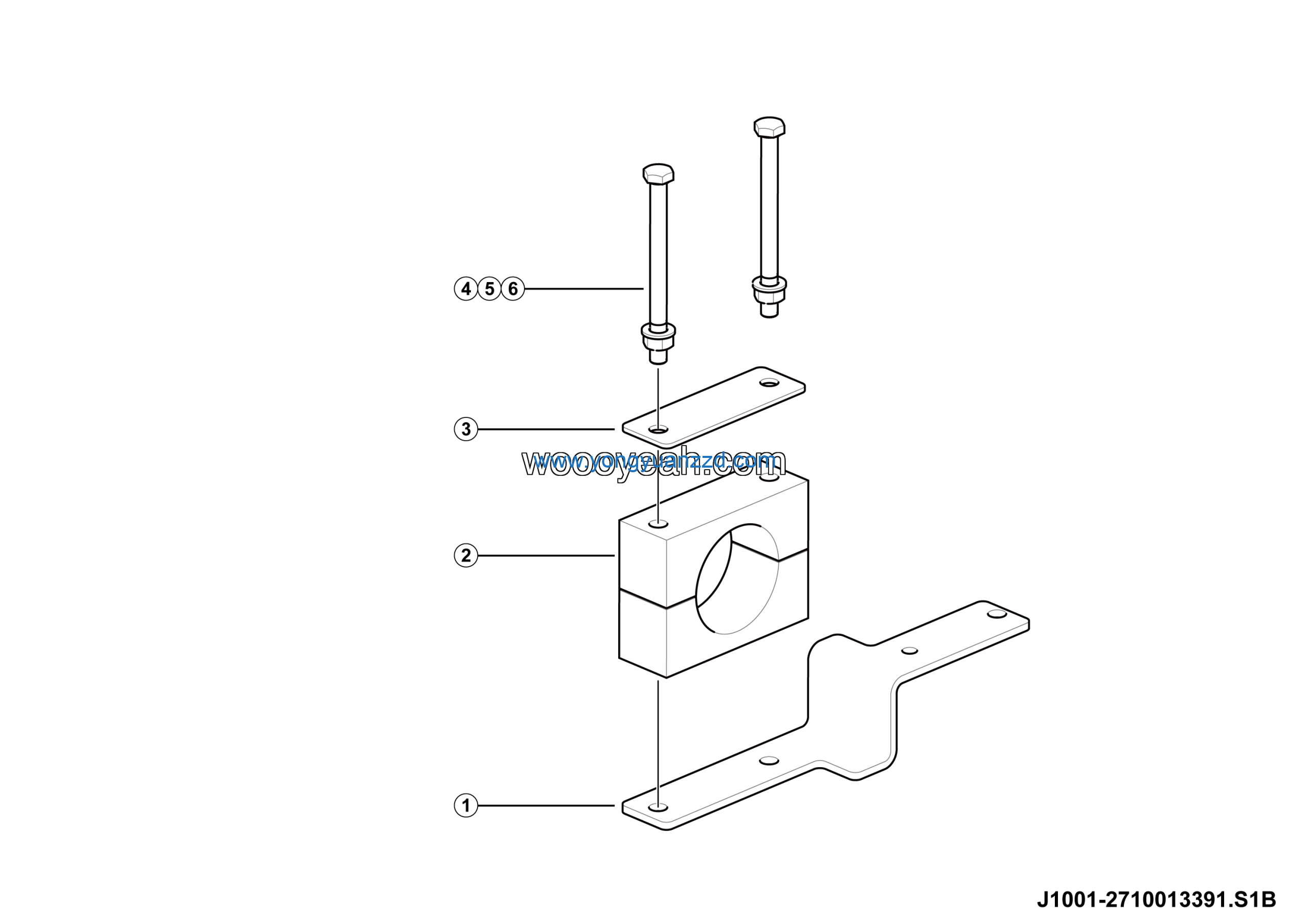

LGMG AT40 2025 – Bracket assy 08 – J1001-2710013391.S1B
Category: 2025 > AT40 > A0400W3M0A113
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket 280*70*57 | 27100133921 | 1 |
| 2 | Single-pipe clamp 70 | 27100139381 | 2 |
| 3 | Plate 120*40*3 | 27100133931 | 1 |
| 4 | Bolt GB5782-M10*120flZnyc-8.8-480 | 4011011686 | 2 |
| 5 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 6 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 2 |
