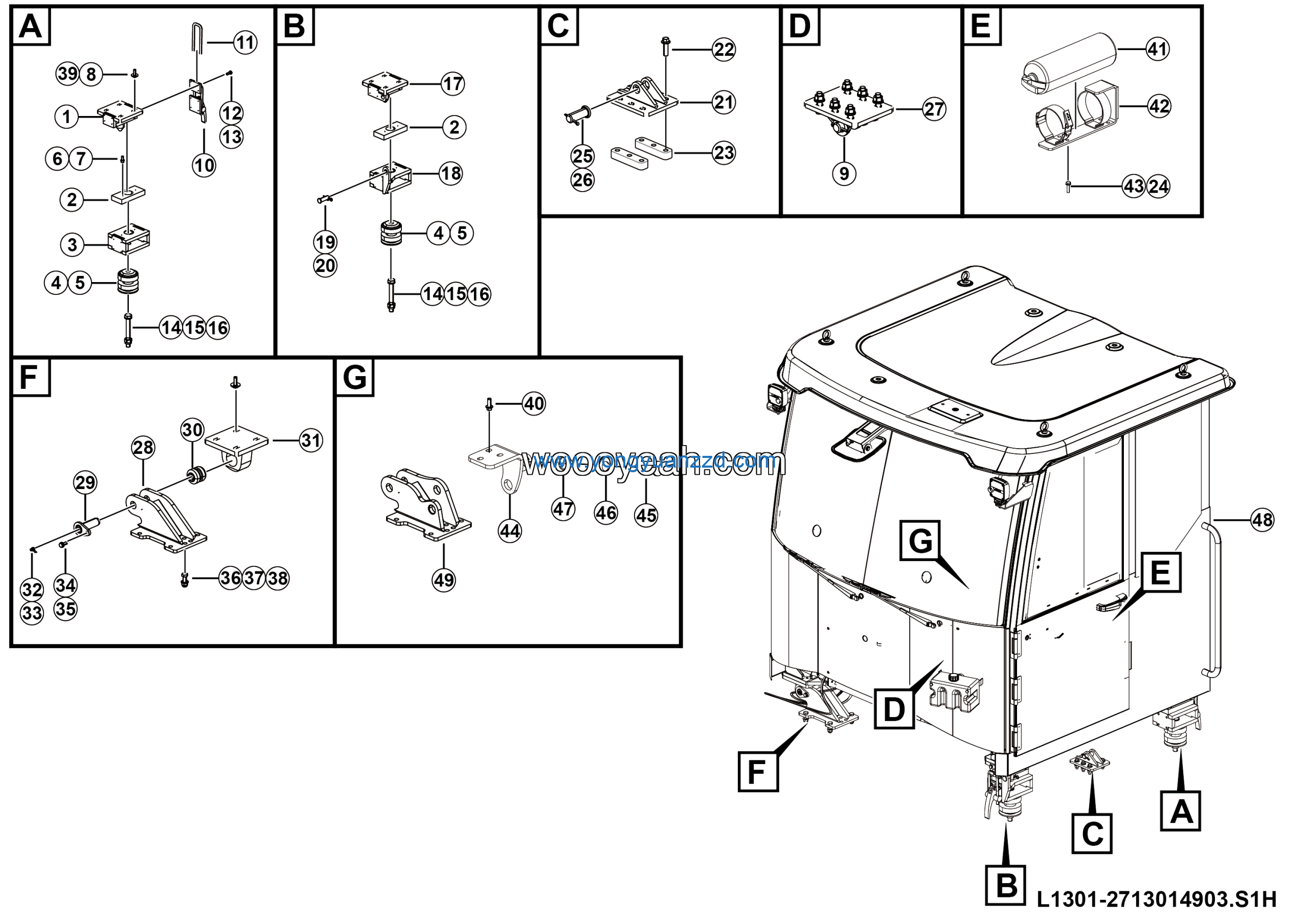

LGMG AT40 2025 – Cab assy – L1301-2713014903.S1H
Category: 2025 > AT40 > A0400W3M0A112
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Mechanical lock assy | 4190002377 | 2 |
| 2 | U-polit | 27130117912 | 2 |
| 3 | Bolt GB5783-M10*25EpZn-10.9 | 4011000993 | 16 |
| 4 | Washer GB93-10-65Mn | 4015000025 | 16 |
| 5 | Bolt GB5782-M22*175flZnyc-12.9-480 | 4011011552 | 2 |
| 6 | Washer GB97.1-22flZnyc-300HV-480 | 4015010555 | 2 |
| 7 | Nut GB6185.1-M22flZnyc-12-480 | 4013010282 | 2 |
| 8 | Cab upr mounting wldmt | 27130153462 | 1 |
| 9 | Cab lwr mounting wldmt | 27130153481 | 1 |
| 10 | Pin GB882-B20*65EpZn-35 | 4016010128 | 1 |
| 11 | Cab rr mounting wldmt | 27130155001 | 1 |
| 12 | Sping | 27130117641 | 1 |
| 13 | Cab flip cylinder under bracket wldmt | 27130149431 | 1 |
| 14 | Bolt GB16674.1-M12*40flZnyc-10.9-480 | 4011011831 | 12 |
| 15 | Threaded plate 3*m12/118*30*20 | 27360228191 | 2 |
| 16 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 4 |
| 17 | Pin | 27130155601 | 2 |
| 18 | Pin GB91-5*40EpZn-Q235A | 4016000127 | 2 |
| 19 | Flip cylinder bracket wldmt | 27130149394 | 1 |
| 20 | Lh hinge lug wldmt | 27130154871 | 1 |
| 21 | Pin wldmt | 27130155031 | 2 |
| 22 | Shock-absorbing rubber pad | 27130153472 | 2 |
| 23 | Front suspension lining | 27130104471 | 2 |
| 24 | Cab rh upr mounting wldmt | 27130153552 | 2 |
| 25 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 26 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
| 27 | Bolt GB5783-M10*25flZnyc-10.9-480 | 4011010845 | 2 |
| 28 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 29 | Bolt GB5783-M14*45flZnyc-12.9-480 | 4011010670 | 8 |
| 30 | Washer GB97.1-14flZnyc-300HV-480 | 4015010341 | 8 |
| 31 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
| 32 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 16 |
| 33 | Cab rr lwr mounting wldmt | 27130155011 | 1 |
| 34 | BOLT GB16674-M12*30-12.9 | 4011010395 | 3 |
| 35 | Fire extinguisher | 4190003486 | 1 |
| 36 | Plate | 27360151981 | 1 |
| 37 | Bolt GB5783-M8*30flznyc-8.8-480 | 4011010708 | 4 |
| 38 | Limit plate wldmt | 27130160941 | 1 |
| 39 | Pin shaft | 27130149252 | 1 |
| 40 | Washer GB97.1-30flZnyc-300HV-480 | 4015010337 | 1 |
| 41 | Pin din11023-8epzn-40 | 4016010274 | 1 |
| 42 | Cab assy lg13-jss-0657 | 4190710657 | 1 |
| 43 | Rh hinge lug wldmt | 27130153591 | 1 |
| 44 | Shock absorber MDS110-75 | 4110704897 | 4 |
| 45 | Front rubber baes plate | 27010115971 | 2 |
| 46 | Screw GB70.1-M10*25EpZn-8.8 | 4014000132 | 4 |
| 47 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 48 | Bolt GB5783-M12*35flZnyc-12.9-480 | 4011010579 | 16 |
| 49 | Washer GB1230-24EpZn-45 | 4015000003 | 1 |
