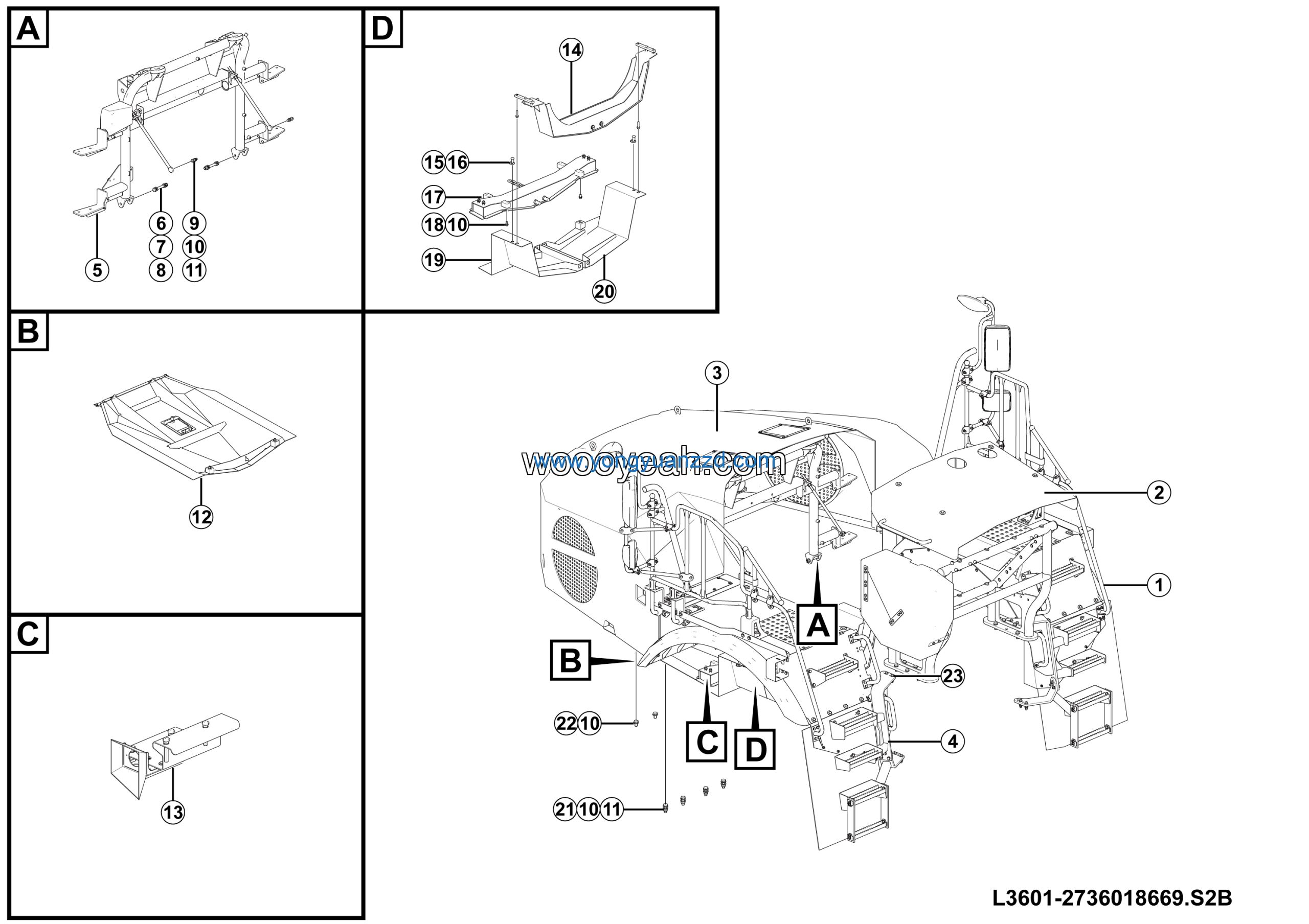

LGMG AT40 2025 – Covering assy – L3601-2736018669.S2B
Category: 2025 > AT40 > A0400W3M0A111
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 31 |
| 2 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 18 |
| 3 | Bottom guard assembly | 27360187103 | 1 |
| 4 | Battery ladder assy | 2736020360 | 1 |
| 5 | Bottom guard rear support beam assembly | 27360187373 | 1 |
| 6 | Locating pin | 27360187521 | 2 |
| 7 | Pin din11023-8epzn-40 | 4016010274 | 2 |
| 8 | Bottom guard plate front support beam assy | 27360187223 | 1 |
| 9 | Bolt GB5783-M12*25flZnyc-8.8-480 | 4011011038 | 2 |
| 10 | Left rear bottom guard wldmt | 27360187442 | 1 |
| 11 | Rh walkway assy | 27360186113 | 1 |
| 12 | Right rear bottom guard wldmt | 27360187482 | 1 |
| 13 | Bolt GB5783-M12*35flZnyc-10.9-480 | 4011010490 | 8 |
| 14 | Bolt GB5783-M12*20flZnyc-8.8-480 | 4011010824 | 3 |
| 15 | Bolt GB16674.1-M12*55flZnyc-10.9-480 | 4011011085 | 8 |
| 16 | Hyd oil tank protection assy | 27360209971 | 1 |
| 17 | Hood assembly | 27360186583 | 1 |
| 18 | Lh walkway assy | 27360185423 | 1 |
| 19 | Hood support beam installation assembly | 27360186344 | 1 |
| 20 | Bolt GB5782-M16*130flZnyc-12.9-480 | 4011010567 | 2 |
| 21 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 8 |
| 22 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 2 |
| 23 | Bolt GB16674.1-M12*45flZnyc-12.9-480 | 4011011161 | 4 |
