LGMG AT40 2025 – Electrical assembly – K2000-2727010140
Category: 2025 > AT40 > A0400W3M0A111

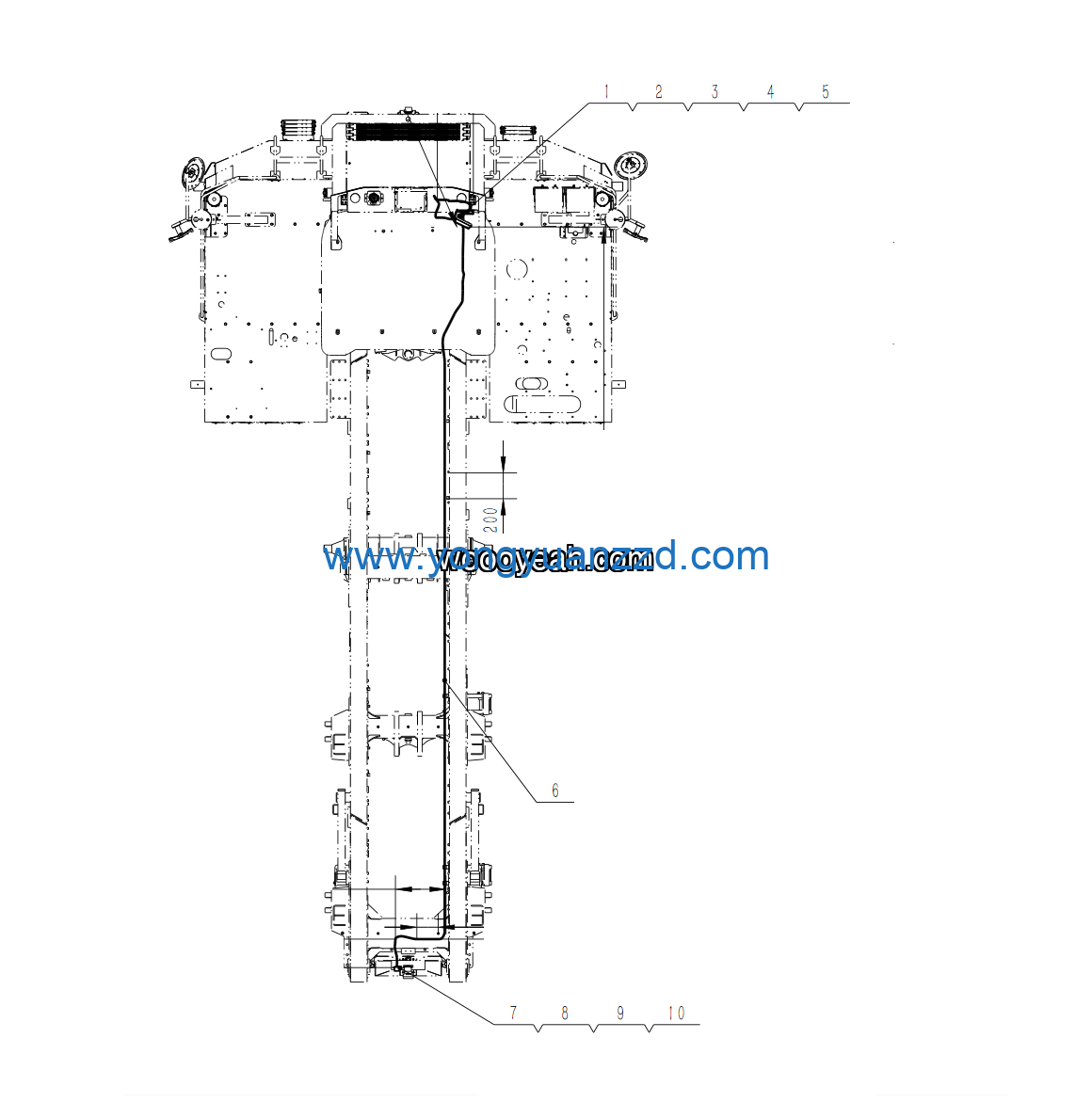

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M4EpZn-8 | 4013000025 | 2 |
| 2 | Wire 2.8m（8P） | 4130704113-001 | 1 |
| 3 | Washer GB96.1-5EpZn-300HV | 4015000205 | 4 |
| 4 | Display support XSPZJ | 4130704120 | 1 |
| 5 | Screw GB845-ST4.8*19-C-H | 4014010240 | 4 |
| 6 | High definition display KLCR-706 | 4130704119 | 1 |
| 7 | Camera transmission wire 11500 | 4130705953 | 1 |
| 8 | Washer GB96.1-4EpZn-300HV | 4015000302 | 4 |
| 9 | External camera KLCM-7（With shield） | 4130705954 | 1 |
| 10 | Bolt GB5783-M4*16EpZn-8.8 | 4011000287 | 2 |
