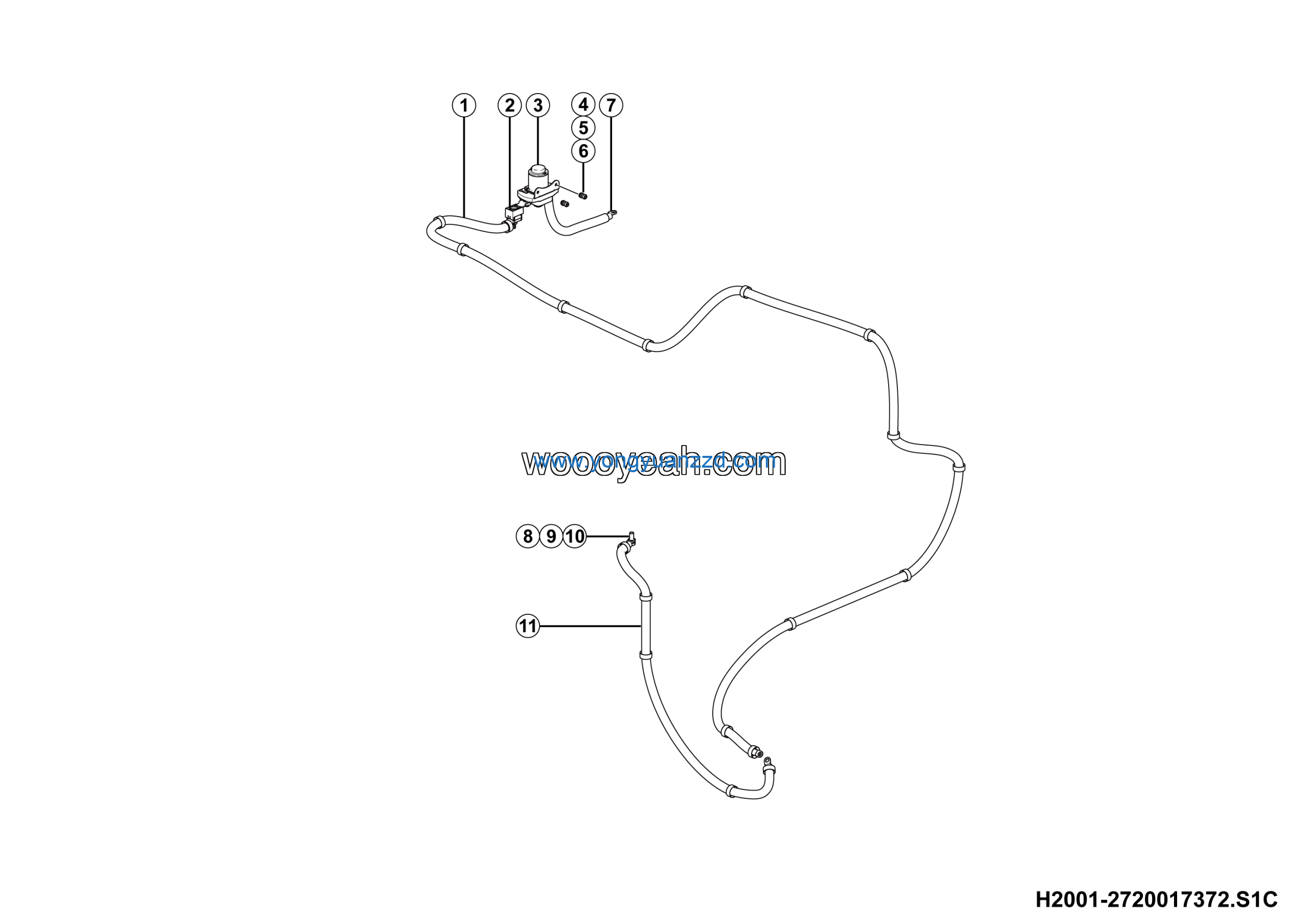

LGMG AT40 2025 – Emergency steering elec sys – H2001-2720017372.S1C
Category: 2025 > AT40 > A0400W3M0A113
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB862.2-10-65Mn | 4015010586 | 1 |
| 2 | Wire p95-10*10*1200-1.8 | 27200197551 | 1 |
| 3 | Wire p95-10*10*4000-1.8 | 27200197541 | 1 |
| 4 | Fuse holder sbm-bt-300a | 4130713972 | 1 |
| 5 | Main contactor GSZ2-400S | 4130001115 | 1 |
| 6 | Bolt GB5783-M6*16EpZn-8.8 | 4011000289 | 2 |
| 7 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 8 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 9 | Wire p95-8*10*350-1.8 | 27200197561 | 1 |
| 10 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 11 | Double sack wedge lock washer HF10 | 4190708409 | 1 |
