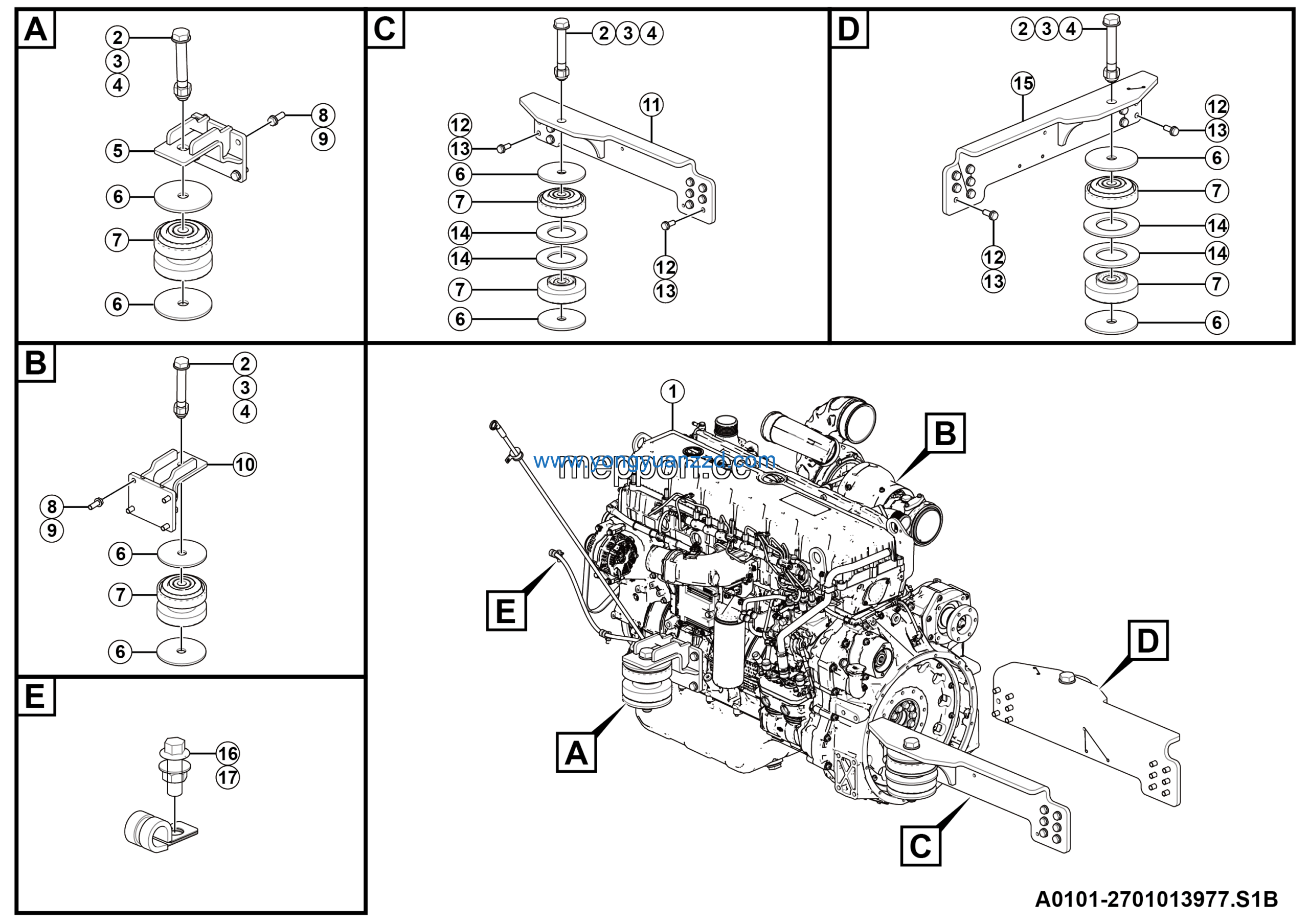

LGMG AT40 2025 – Engine installation – A0101-2701013977.S1B
Category: 2025 > AT40 > A0400W3M0A114
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rh fr bracket wldmt | 27010137773 | 1 |
| 2 | Lh rr bracket wldmt | 27010139782 | 1 |
| 3 | Bolt GB5783-M16*40EpZn-10.9 | 4011000545 | 22 |
| 4 | Washer GB97.1-16EpZn-300HV | 4015000181 | 22 |
| 5 | Washer 180*100*7.5 | 27010141261 | 4 |
| 6 | Rh rr bracket wldmt | 27010139803 | 1 |
| 7 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 2 |
| 8 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 2 |
| 9 | Engine assembly wp14t | 4110707557 | 1 |
| 10 | Bolt gb5782-m30*210flznyc-10.9-480 | 4011011602 | 4 |
| 11 | Nut GB889.1-M30flZnyc-10-480 | 4013010373 | 4 |
| 12 | Washer GB97.1-30flZnyc-300HV-480 | 4015010337 | 4 |
| 13 | Lh fr bracket wldmt | 27010137693 | 1 |
| 14 | Shock absorber 170*8 | 27010138331 | 8 |
| 15 | Shock absorber mds170-55 (10189-01) | 4110707594 | 8 |
| 16 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 8 |
| 17 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 8 |
