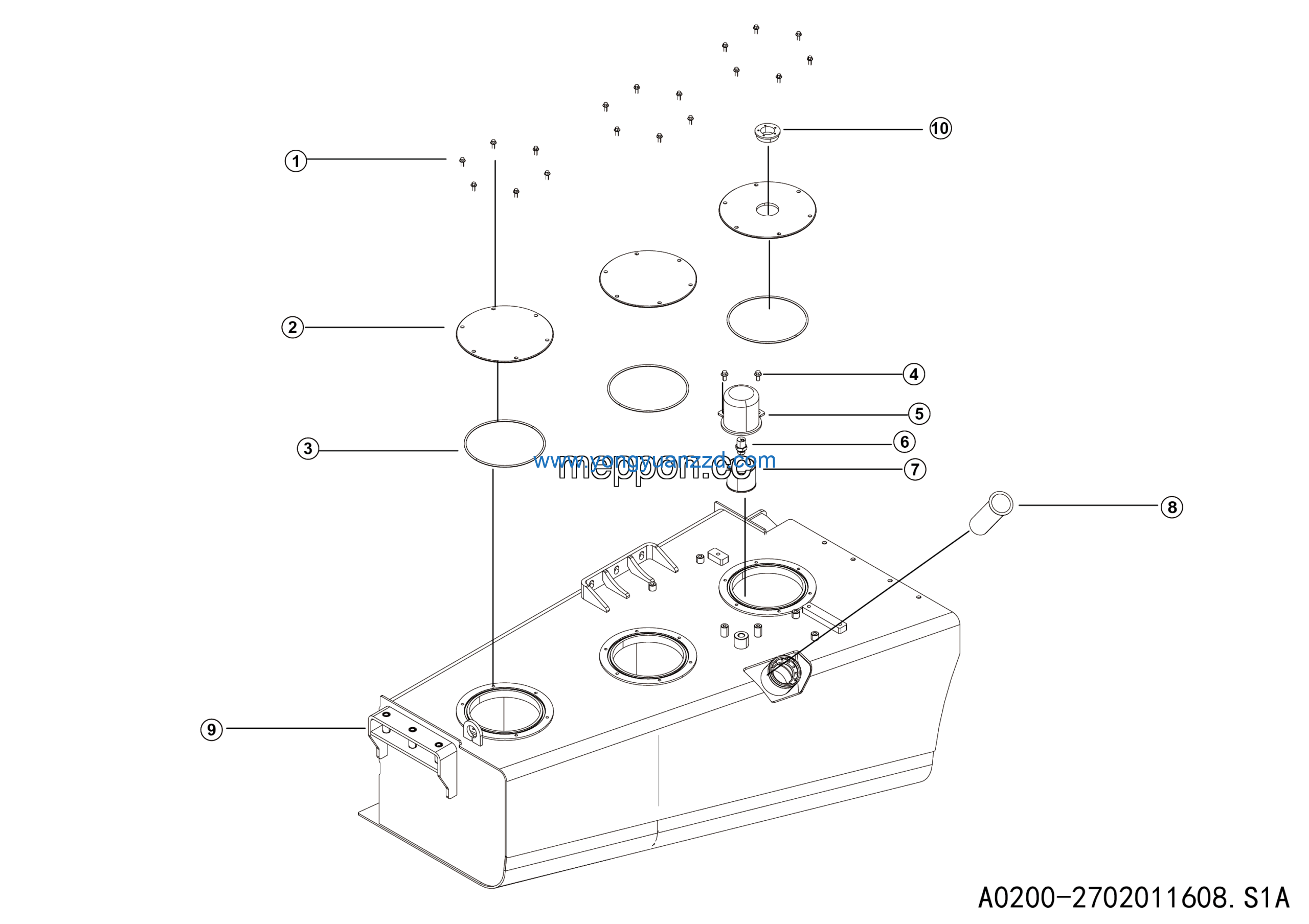

LGMG AT40 2025 – Fuel tank distribution assembly – A0200-2702011608.S1A
Category: 2025 > AT40 > A0400W3M0A106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Inspection cover wldmt | 27020114151 | 1 |
| 2 | Bolt GB16674.1-M8*20flZnyc-8.8-480 | 4011010966 | 18 |
| 3 | Inspection cover 288*6 | 27020114141 | 2 |
| 4 | O-RING | 4015010459 | 3 |
| 5 | Bolt GB16674.1-M10*20flZnyc-8.8-480 | 4011010993 | 2 |
| 6 | End cap | 4190706507 | 1 |
| 7 | Joint | 4110703503 | 1 |
| 8 | Respiratory filter | 4110703480 | 1 |
| 9 | Sieve | 4130702927 | 1 |
| 10 | Fuel tank wldmt | 27020113932 | 1 |
