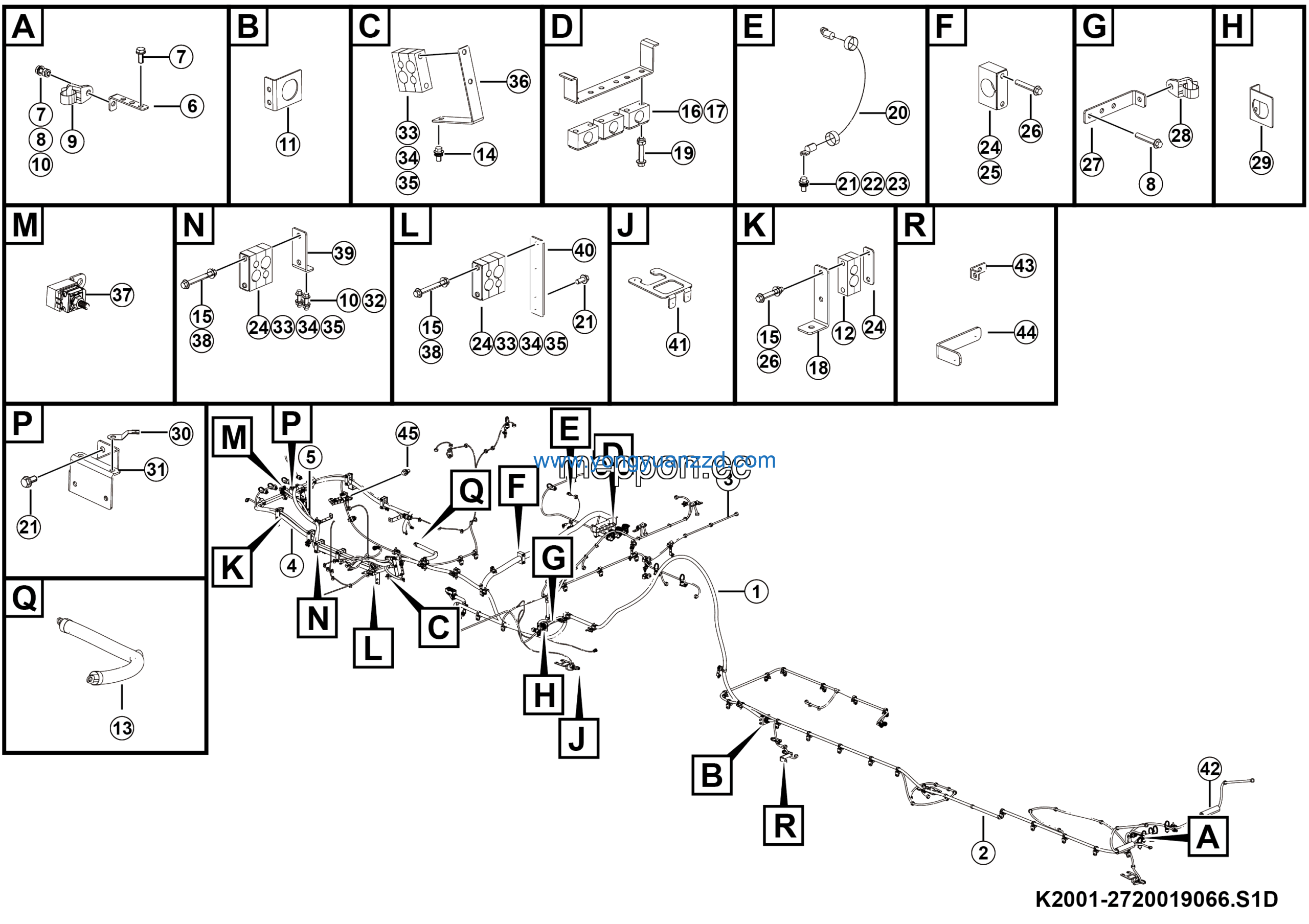

LGMG AT40 2025 – Harness assy – K2001-2720019066.S1D
Category: 2025 > AT40 > A0400W3M0A108
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 11 |
| 2 | Itt bracket 80*70*40 | 27200190861 | 1 |
| 3 | Pipe clamp 27*22-85*30*20 | 27200194931 | 10 |
| 4 | Line | 27200147521 | 1 |
| 5 | Bolt GB16674.1-M12*25flZnyc-8.8-480 | 4011011130 | 2 |
| 6 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 46 |
| 7 | Pipe clamp 26-60*30*35 | 27200190721 | 3 |
| 8 | Pipe clamp cover plate 60*30*3 | 27200190711 | 3 |
| 9 | Bracket 140*60*42 | 27200201651 | 2 |
| 10 | Bolt GB16674.1-M10*55flZnyc-8.8-480 | 4011011009 | 6 |
| 11 | Front frame harness | 27200190674 | 1 |
| 12 | Wire-bzw-50-600 | 27340105852 | 1 |
| 13 | Bolt GB16674.1-M10*20flZnyc-8.8-480 | 4011010993 | 57 |
| 14 | Double sack wedge lock washer HF10 | 4190708409 | 4 |
| 15 | Washer GB862.2-10-65Mn | 4015010586 | 4 |
| 16 | Pipe clamp cover plate 85*30*3 | 27200190731 | 13 |
| 17 | Pipe clamp 40-85*30*52 | 27200190851 | 2 |
| 18 | Bolt gb16674.1-m10*65flznyc-8.8-480 | 4011011903 | 18 |
| 19 | Plate | 27340111291 | 4 |
| 20 | Cable tie HS-J117 | 4130704969 | 24 |
| 21 | 16 core itt bracket 70*70*30 | 27200173761 | 1 |
| 22 | Rear frame harness | 27200191004 | 1 |
| 23 | Clamp | 4130702929 | 1 |
| 24 | Generator power cord bracket 190*183*154 | 27200173782 | 1 |
| 25 | Bolt GB16674.1-M8*30flZnyc-8.8-480 | 4011011017 | 10 |
| 26 | Pipe clamp 27*17-85*30*20 | 27200190782 | 4 |
| 27 | Pipe clamp 27*17*27*15.5-85*30*30 | 27200190792 | 4 |
| 28 | Pipe clamp 27*15.5-85*30*20 | 27200190741 | 8 |
| 29 | Bracket 165*130*30 | 27200190823 | 1 |
| 30 | Fuse holder SBM-BT-100A | 4130712751 | 1 |
| 31 | Bolt gb16674.1-m10*90flznyc-8.8-480 | 4011011905 | 8 |
| 32 | Bracket 98*42*27 | 27200190751 | 4 |
| 33 | Hydraulic tank harness | 27200190993 | 1 |
| 34 | Bracket 185*40*4 | 27200190813 | 1 |
| 35 | Bracket 120*95*30 | 27200203261 | 3 |
| 36 | Canvas 150*180 | 27200157062 | 2 |
| 37 | Holder | 27200142321 | 7 |
| 38 | L part 139*30*77 | 27200149691 | 1 |
| 39 | Bolt GB16674.1-M8*20flZnyc-8.8-480 | 4011010966 | 1 |
| 40 | Starter motor power cable p95-8*10*4800-1.8 | 27200173442 | 1 |
| 41 | Engine power cable p25-8 * 8 * 2400-1.8 | 27200173451 | 1 |
| 42 | Holder | 27200147051 | 14 |
| 43 | Bolt GB16674.1-M10*25flZnyc-8.8-480 | 4011011015 | 20 |
| 44 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 12 |
| 45 | Cable tie 14400342 | 4130703098 | 37 |
