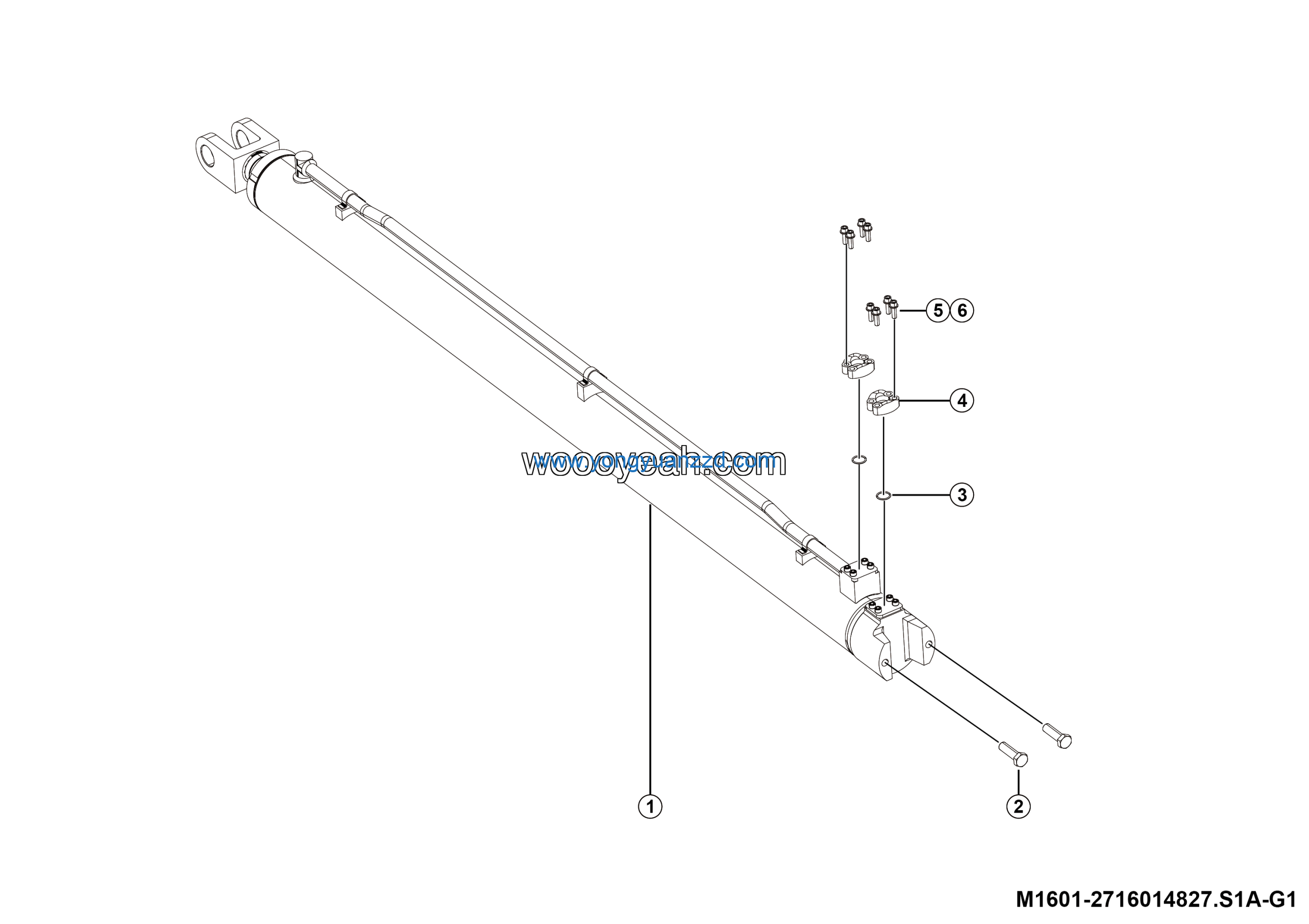

LGMG AT40 2025 – Hoist cylinder assy – M1601-2716014827.S1A-G1
Category: 2025 > AT40 > A0400W3M0A201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lifting cylinder 150*90*2500-3215 | 4120713981 | 1 |
| 2 | Bolt GB5783-M24*80flZnyc-10.9-480 | 4011011607 | 2 |
| 3 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 2 |
| 4 | Split flange LGB117-310501 | 4041002907 | 2 |
| 5 | Screw GB70.1-M12*40flZnyc-10.9-480 | 4014010281 | 8 |
| 6 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 8 |
