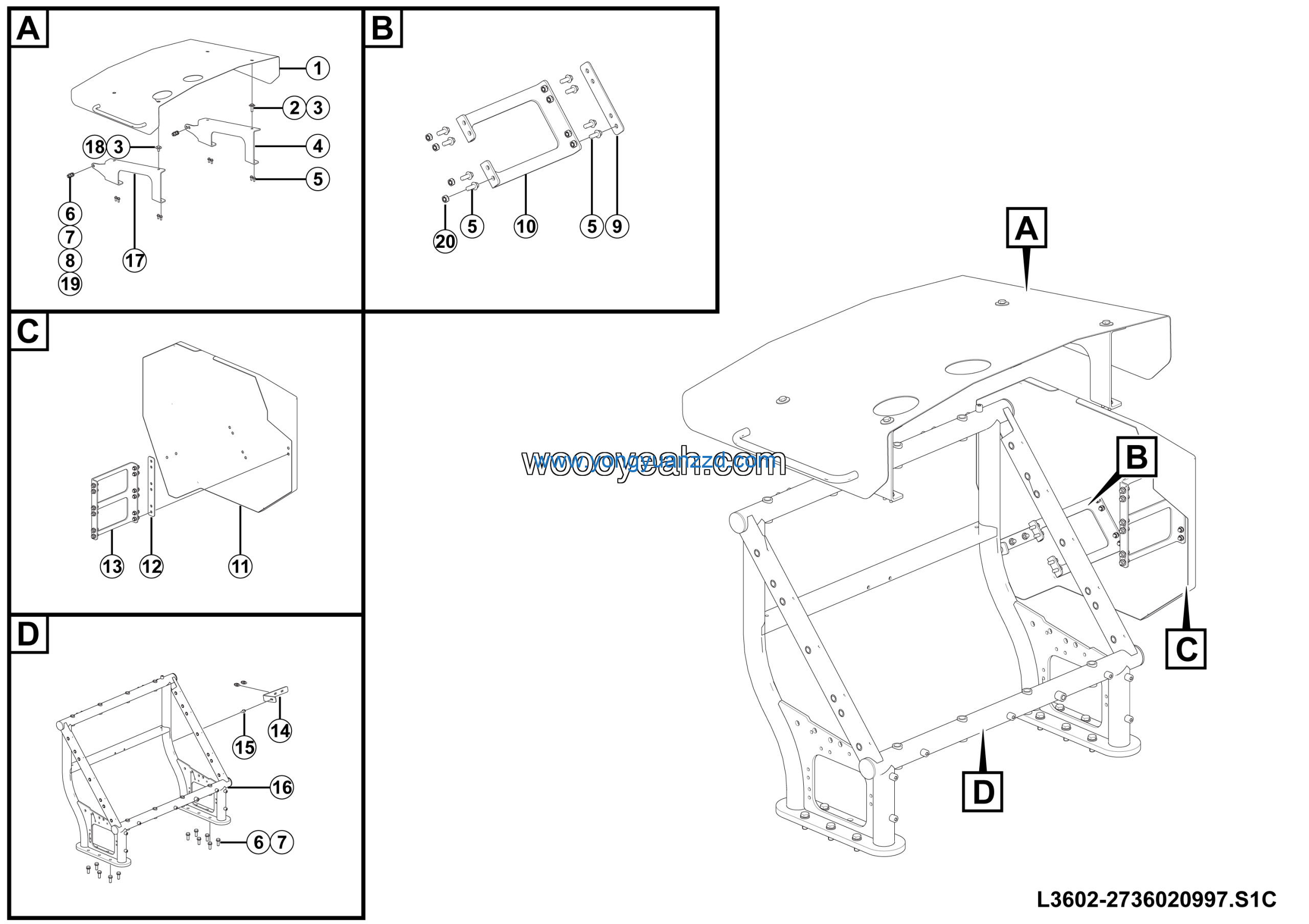

LGMG AT40 2025 – Hyd oil tank protection assy – L3602-2736020997.S1C
Category: 2025 > AT40 > A0400W3M0A104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fr bracket wldmt | 27360210001 | 1 |
| 2 | Hydraulic protective cover | 27360210041 | 1 |
| 3 | Pad 200 * 40 * 4 | 27240114421 | 1 |
| 4 | Rr bracket wldmt | 27360210021 | 1 |
| 5 | L-bracket 220*40*100 | 27360219231 | 1 |
| 6 | Bolt GB16674.1-M10*20flZnyc-10.9-480 | 4011011580 | 1 |
| 7 | Hydraulic oil support welding | 27360186971 | 1 |
| 8 | Hyd oil tank stop plate rh bracket wldmt | 27360218121 | 1 |
| 9 | Bolt GB5783-M14*30flZnyc-12.9-480 | 4011011004 | 3 |
| 10 | Spacer sleeve 20*17*19 | 27360218181 | 2 |
| 11 | Hyd oil tank protection cover wldmt | 27360217931 | 1 |
| 12 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 8 |
| 13 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 1 |
| 14 | Washer GB96.1-14flZnyc-300HV-480 | 4015010371 | 4 |
| 15 | Hyd oil tank stop plate lh bracket wldmt | 27360218141 | 1 |
| 16 | Bolt GB16674.1-M10*25flZnyc-10.9-480 | 4011011623 | 30 |
| 17 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 13 |
| 18 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 15 |
| 19 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 2 |
| 20 | Pad 300 * 40 * 4 | 27240114411 | 1 |
