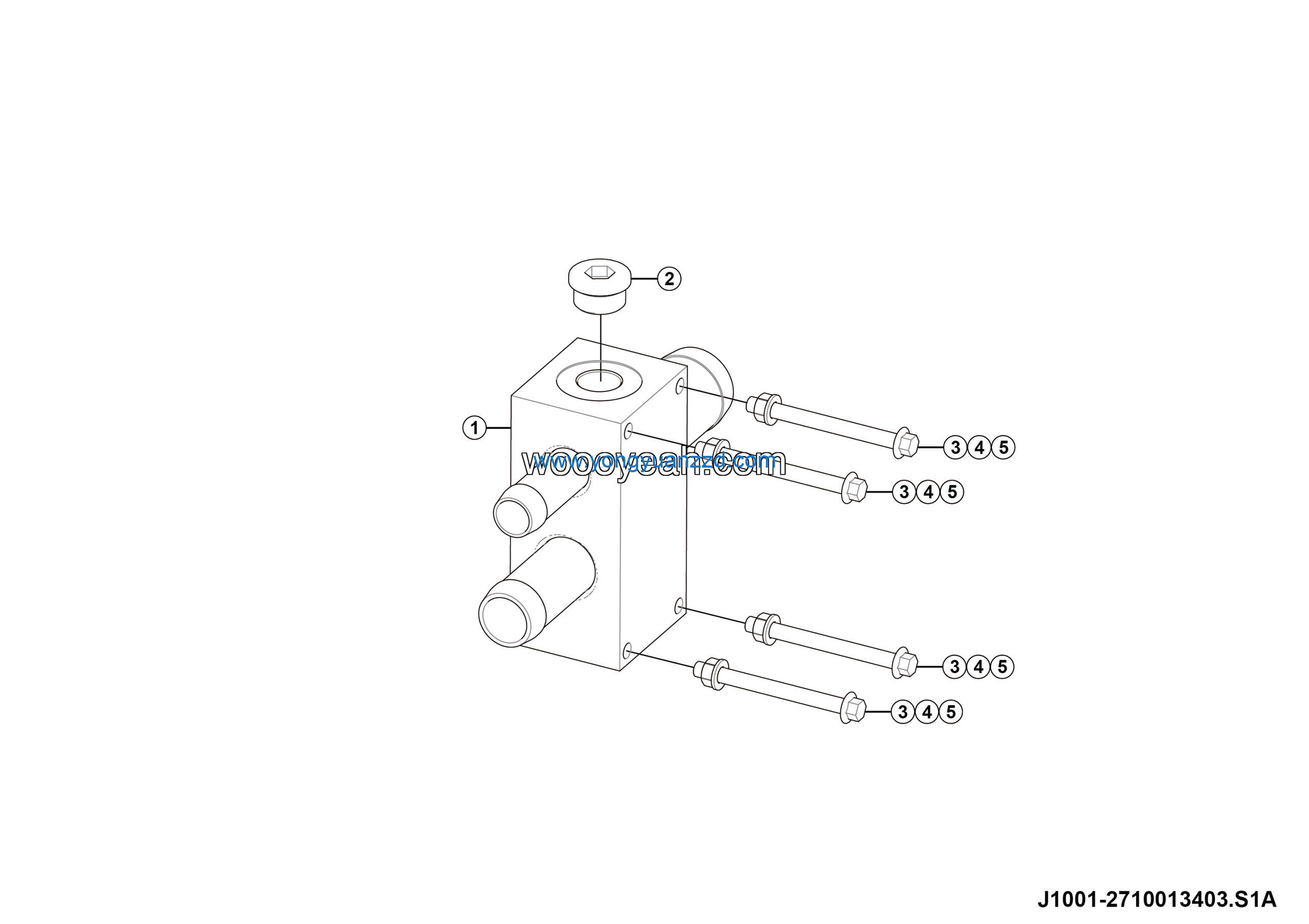

LGMG AT40 2025 – Oil suction block assy – J1001-2710013403.S1A
Category: 2025 > AT40 > A0400W3M0A106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Oil suction block wldmt 01 | 27100134041 | 1 |
| 2 | Plug VSTI1ED | 4120708640 | 1 |
| 3 | Bolt GB16674.1-M10*110EpZn-8.8 | 4011000532 | 4 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
