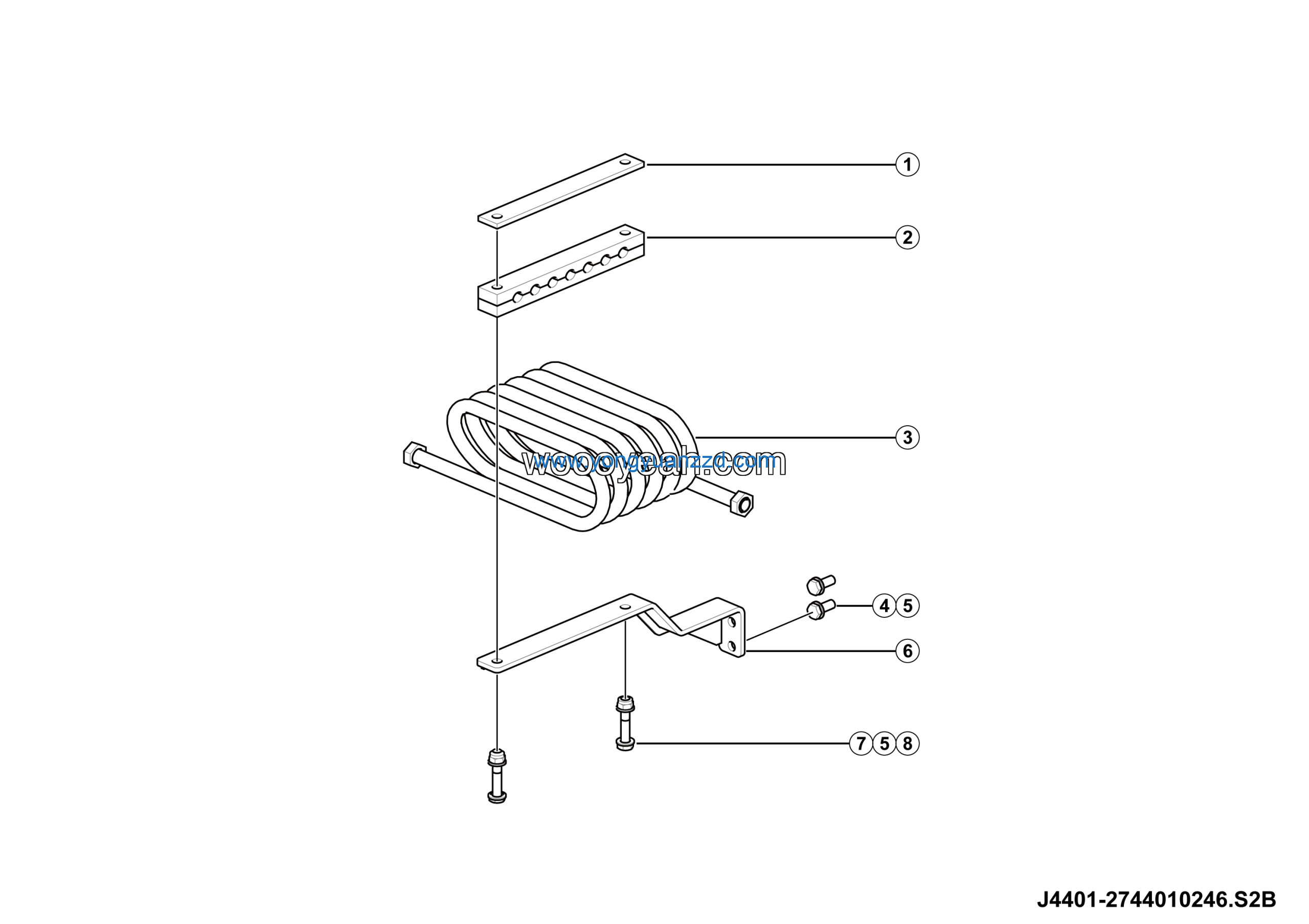

LGMG AT40 2025 – Spiral pipe assy – J4401-2744010246.S2B
Category: 2025 > AT40 > A0400W3M0A113
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27100108872 | 1 |
| 2 | Rubber clip | 27100108841 | 2 |
| 3 | Spiral pipe | 27440102361 | 1 |
| 4 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 5 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 6 |
| 6 | Fhg | 27100139981 | 1 |
| 7 | Bolt GB5782-M10*55flznyc-8.8-480 | 4011010741 | 2 |
| 8 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 2 |
