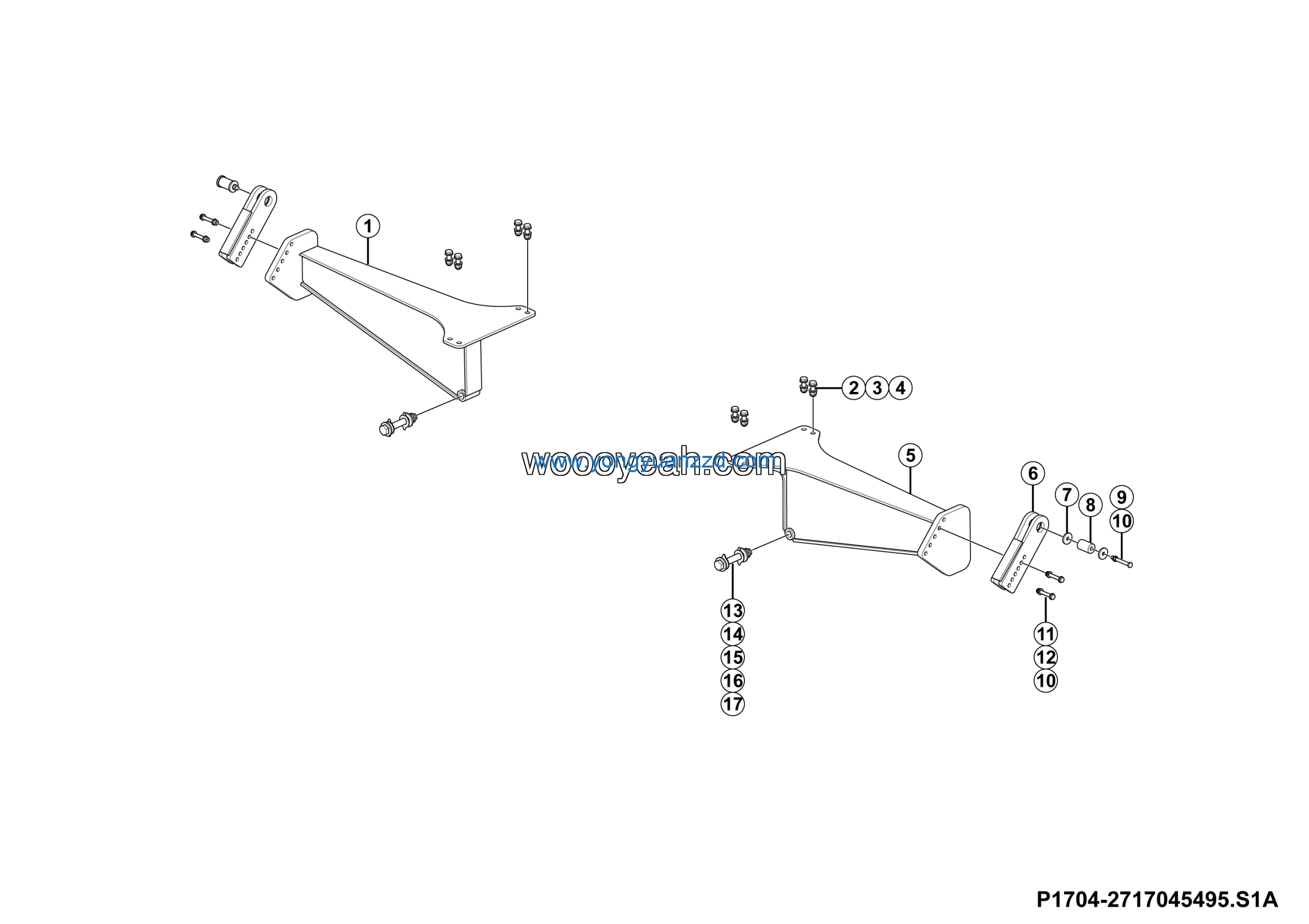

LGMG AT40 2025 – Steel cable bracket installation – P1704-2717045495.S1A
Category: 2025 > AT40 > A0400W3M0A108
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 6 |
| 2 | Bolt GB5782-M12*80flZnyc-10.9-480 | 4011011763 | 4 |
| 3 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 8 |
| 4 | Bolt gb5782-m24*160flznyc-12.9-480 | 4011011582 | 2 |
| 5 | Connecting gasket 55 * 26 * 6 | 27170401562 | 4 |
| 6 | Plate | 27170410601 | 4 |
| 7 | Plate | 27170410621 | 4 |
| 8 | Nut GB6185.1-M24flZnyc-12-480 | 4013010539 | 2 |
| 9 | Plate | 27170418251 | 1 |
| 10 | Bolt GB5783-M16*50flZnyc-12.9-480 | 4011010616 | 8 |
| 11 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 16 |
| 12 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 8 |
| 13 | Plate | 27170418241 | 1 |
| 14 | Rope adjusting bracket wldmt | 27170404711 | 2 |
| 15 | Plate | 27170418261 | 4 |
| 16 | Rotating shaft under rope 39 * 60 | 27170404681 | 2 |
| 17 | Bolt GB5782-M12*95flZnyc-10.9-480 | 4011011021 | 2 |
